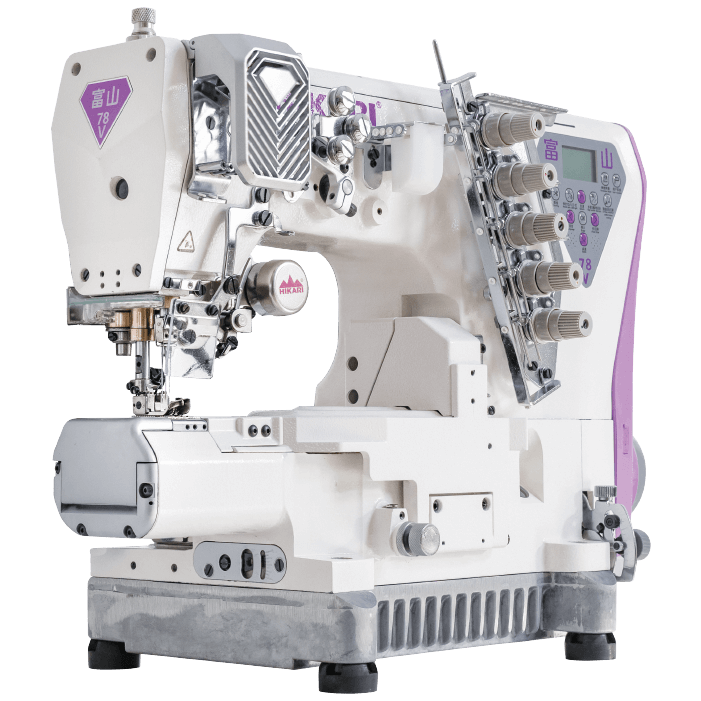

HW78V
Pain points VS Buy points
-
01
Equipped with intelligent thread control technology,subvert traditional technical limitations,Thin material does not arch, full and beautiful stitch.
-
02
Anti-unraveling technology(condense stitch or lock-sewing function) is optional.
-
03
The rear puller is optional.
More values

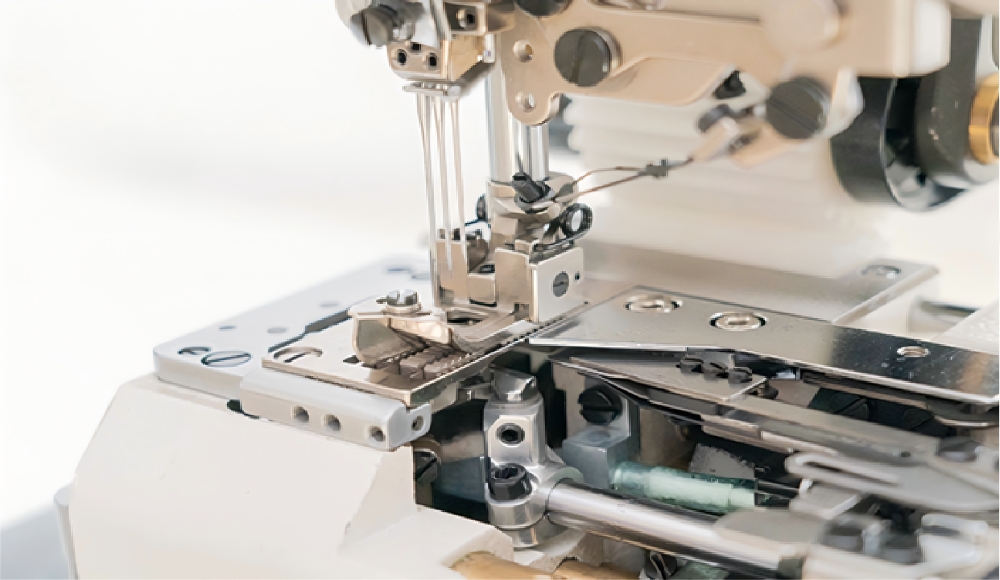

Innovative technology and structure of presser foot lifter and trimmer system, makes the trimming faster with very low sound.

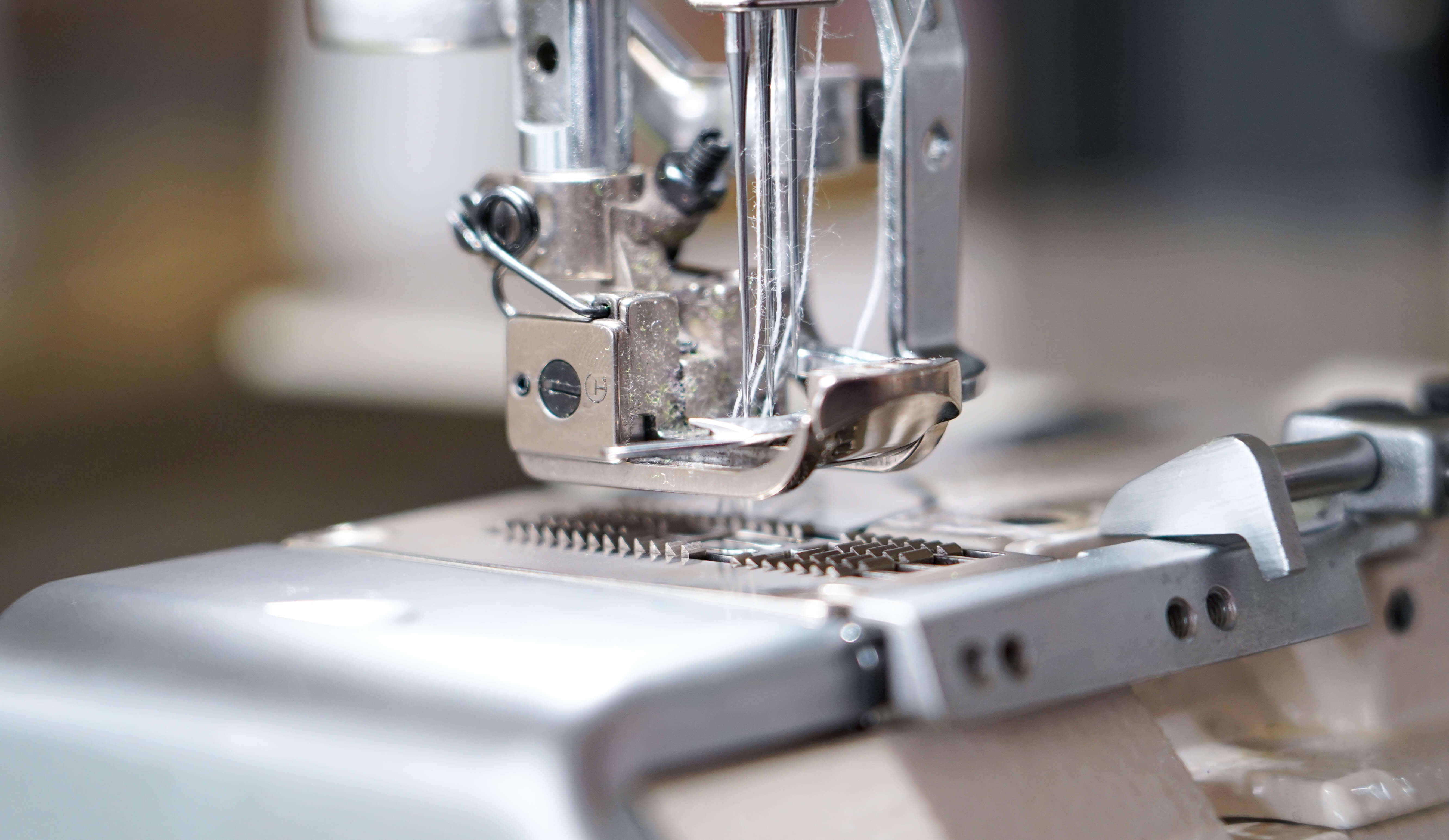

Computer digital control foot lifter.And the height is adjustable to max.7mm. More convenient to feed the fabric.

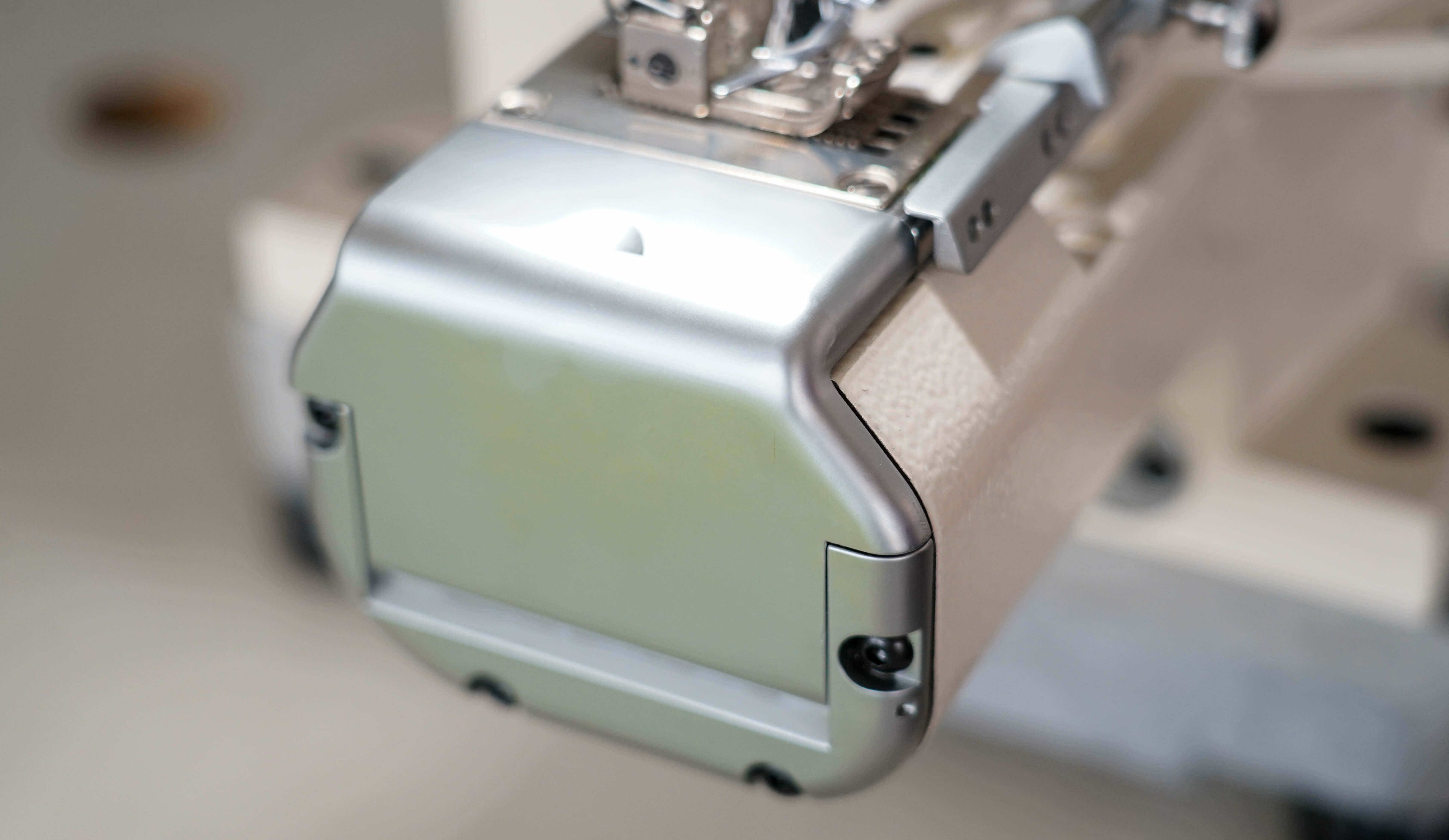

Smooth cylinder bed with smaller diameter(280mm)makes the sewing faster and easier to improve productivity

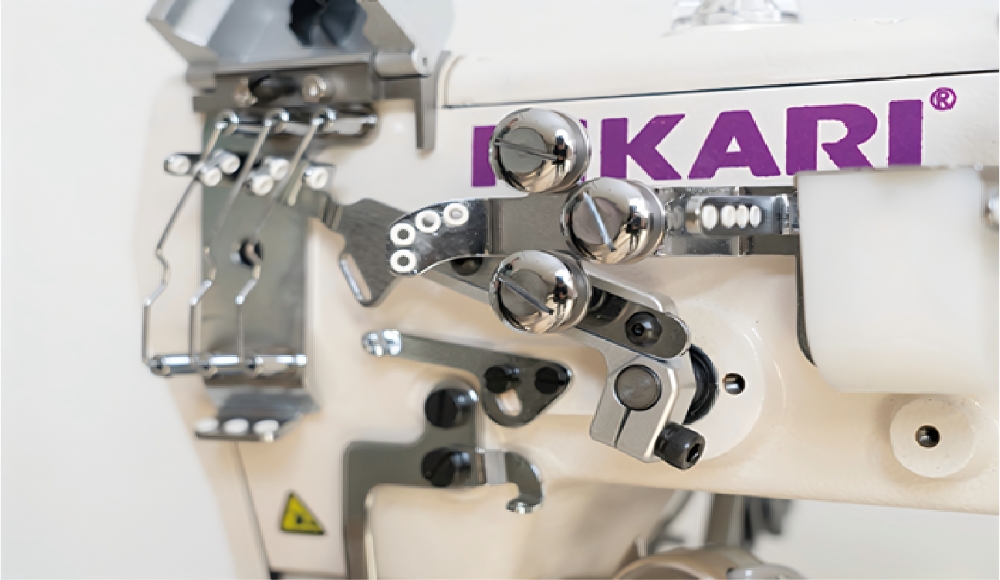

More wear-resisting ceramic threading guide hole make threading smoothly and beautiful stitch.
HIKARI IOT function is optional, implement device net work connection function, Help customer build digital factories.
Specifications
| Flat bed | Needle | No. Of needles | No. Of threads | Needle gauge | Stitch length | Height of presser foot | Differential ratio | Sewing speed | Packing size |
| HW78V-01x356/UTM | UYX128GAS | 3 | 5 | 5.6 | 4.5 | 7 | 0.9-1.3 | 5000 | 705x415x655mm |
| HW78V-01x356/UAM | UYX128GAS | 3 | 4 | 5.6 | 4.5 | 7 | 0.9-1.3 | 5000 | 705x415x655mm |
| HW78V-01x356/UTM/A | UYX128GAS | 3 | 5 | 5.6 | 4.5 | 7 | 0.9-1.3 | 5000 | 705x415x655mm |
| HW78V-01x356/UAM/T | UYX128GAS | 3 | 4 | 5.6 | 4.5 | 7 | 0.9-1.3 | 5000 | 705x415x655mm |
