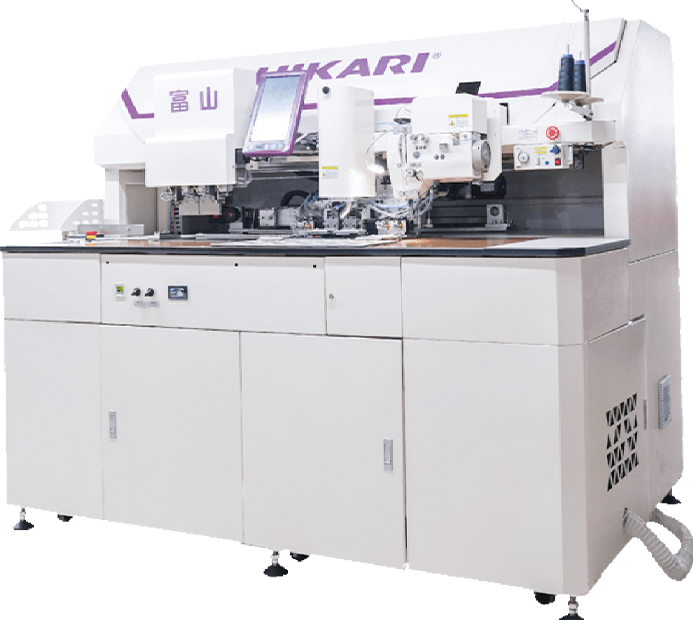

Intelligent pocket mold opening machine (laser type)
HATKW-01/J
Intelligent telescopic pocket mold quickly adapts to product size changes
Key Use Value
Other Usage Values
-

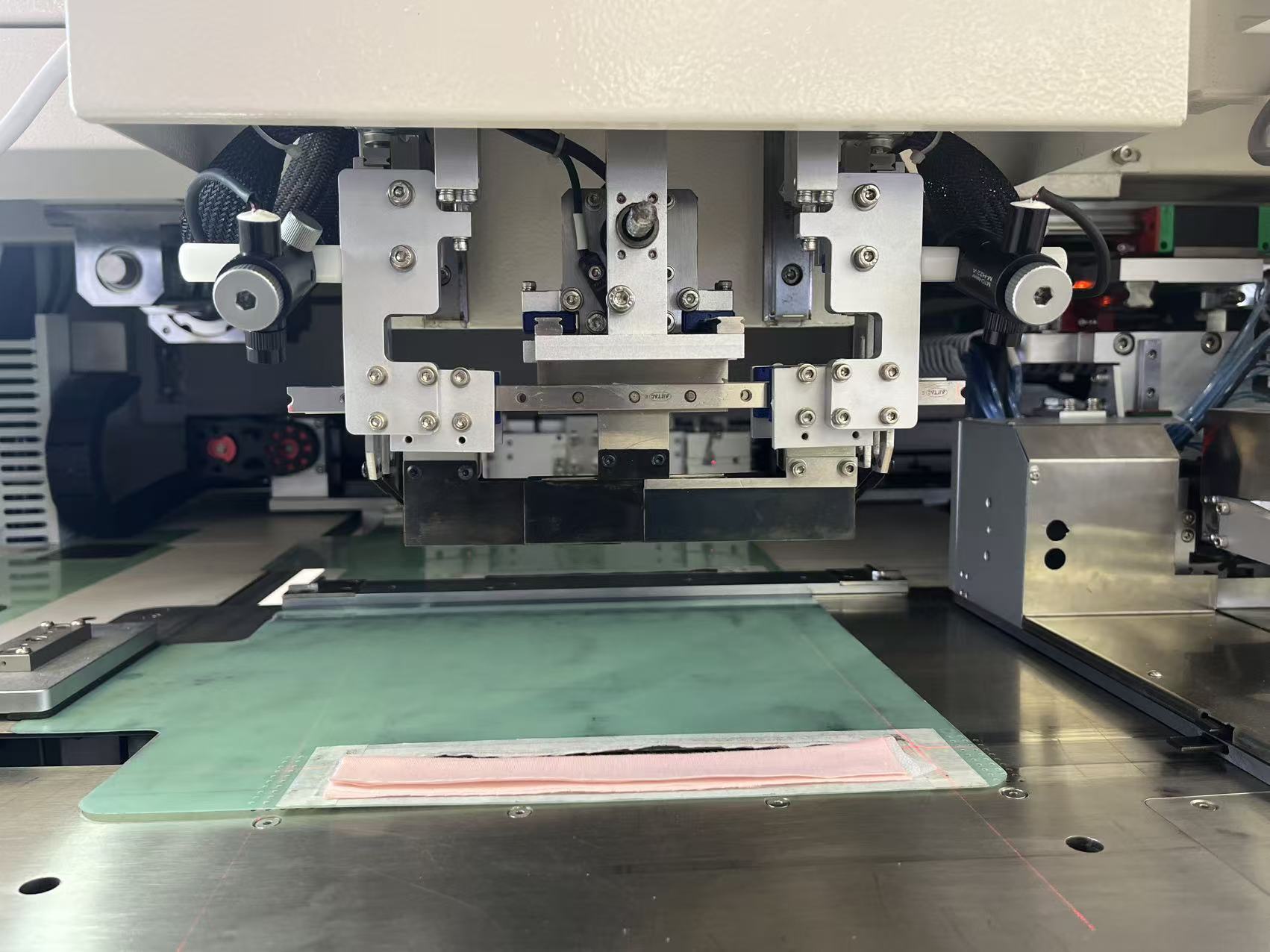

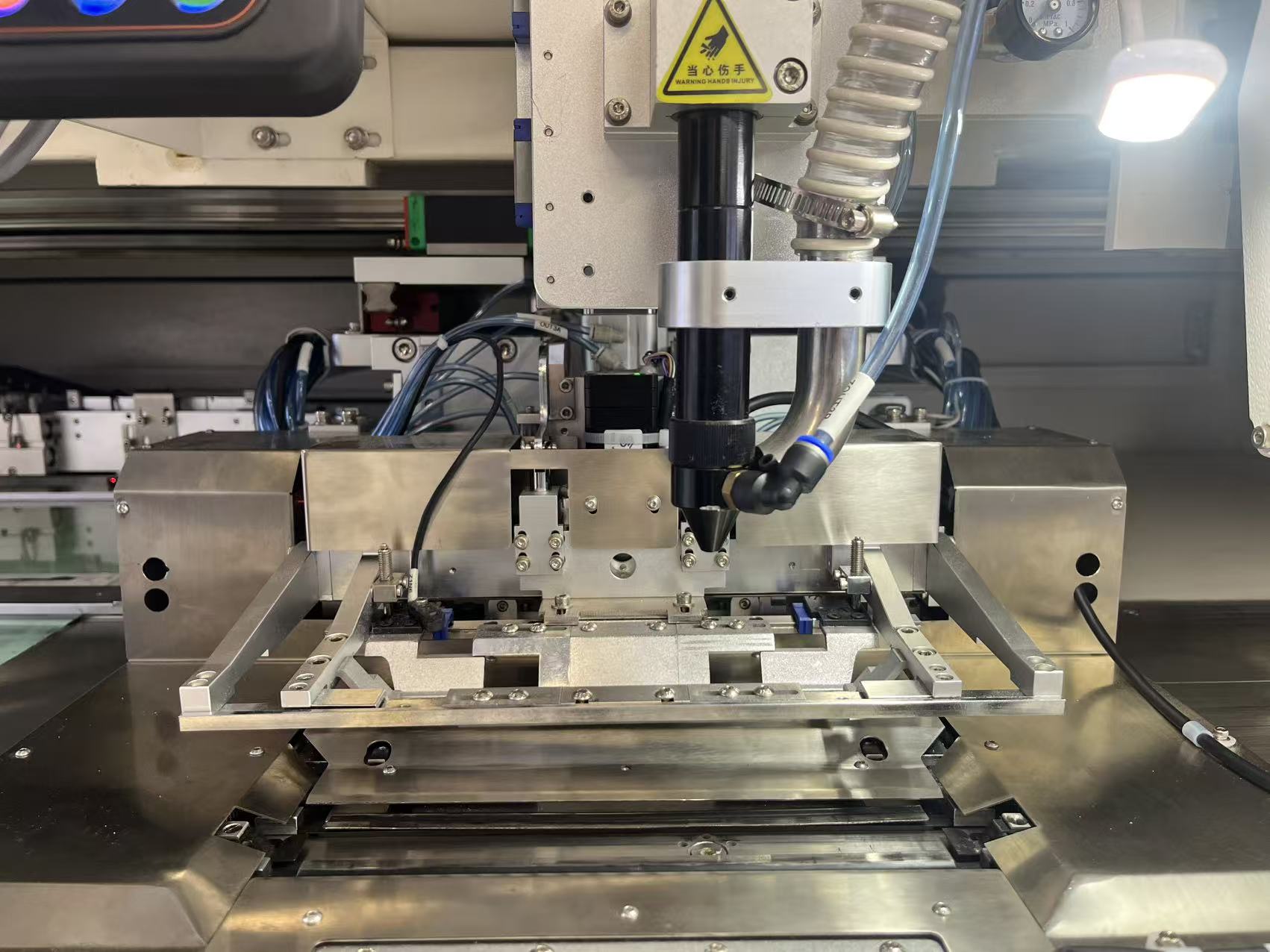

Head lifting structure: separated upper-lower structure; direct drive by Delta servo motor for upper & lower shafts, high precision & speed. Sewing speed: 3000 RPM. Head lift (idle stroke): 50mm; larger operation space, ideal for long garments (trench coats, ladies’ dresses, medical coats, etc.)
-

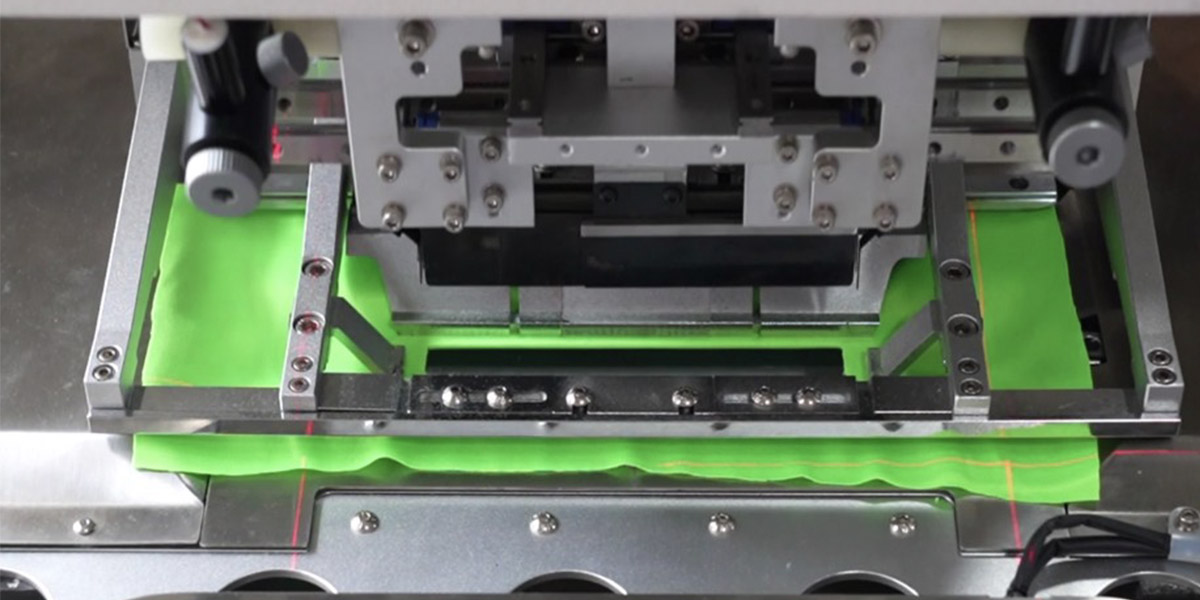

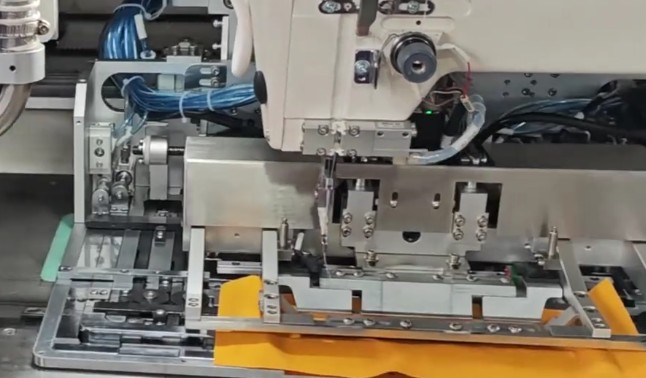

Intelligent folding mechanism: motor-controlled folding linkage, data input via screen, controllable folding position, folding accuracy ≤0.1mm; more stable pocket opening sewing
-
Advantages of laser type: faster pocket opening; 4 seconds less per pocket compared with cold knife type
-

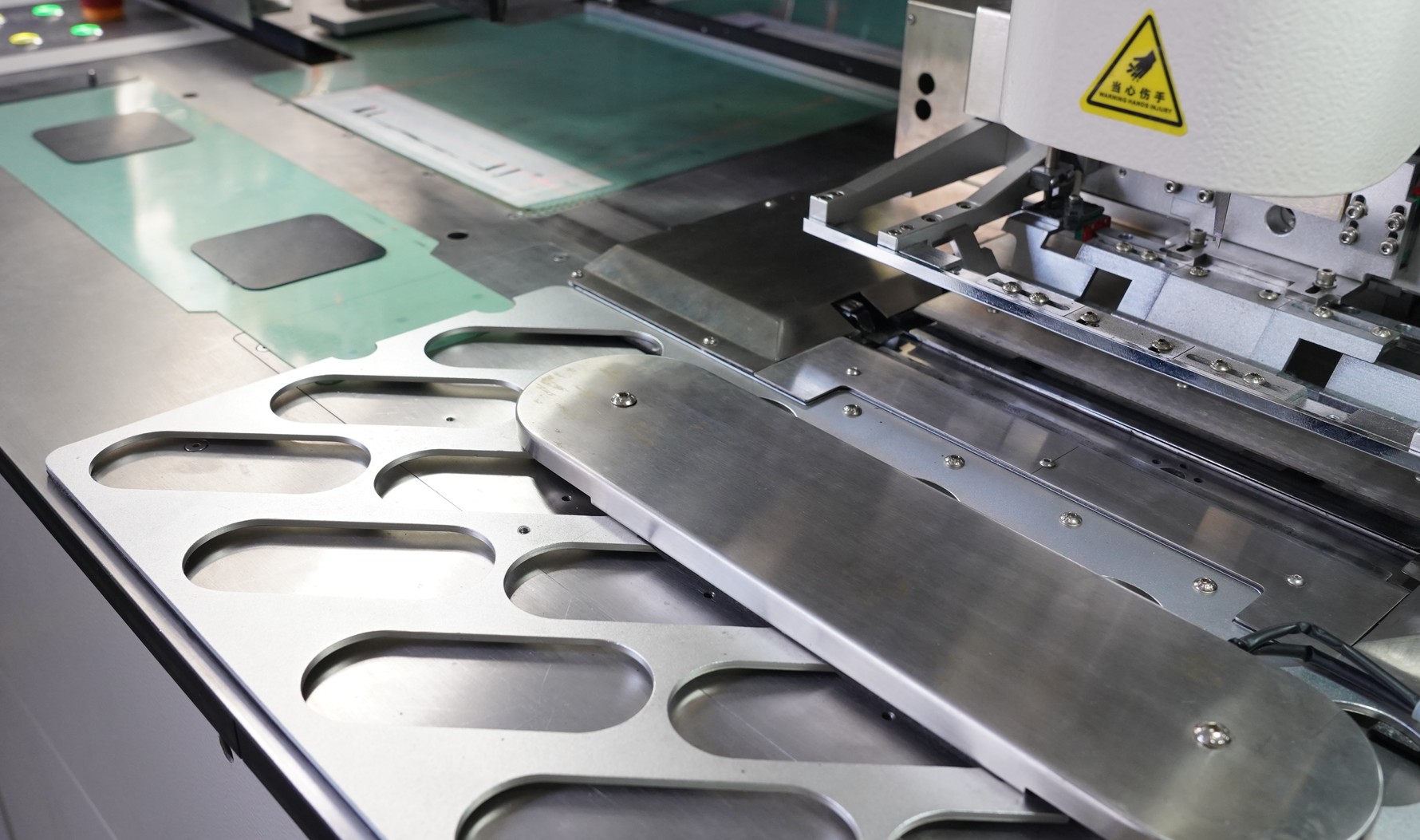

Magnetic receiving structure: magnetic flying plate for pocket receiving, ensuring flatter finished pockets
-

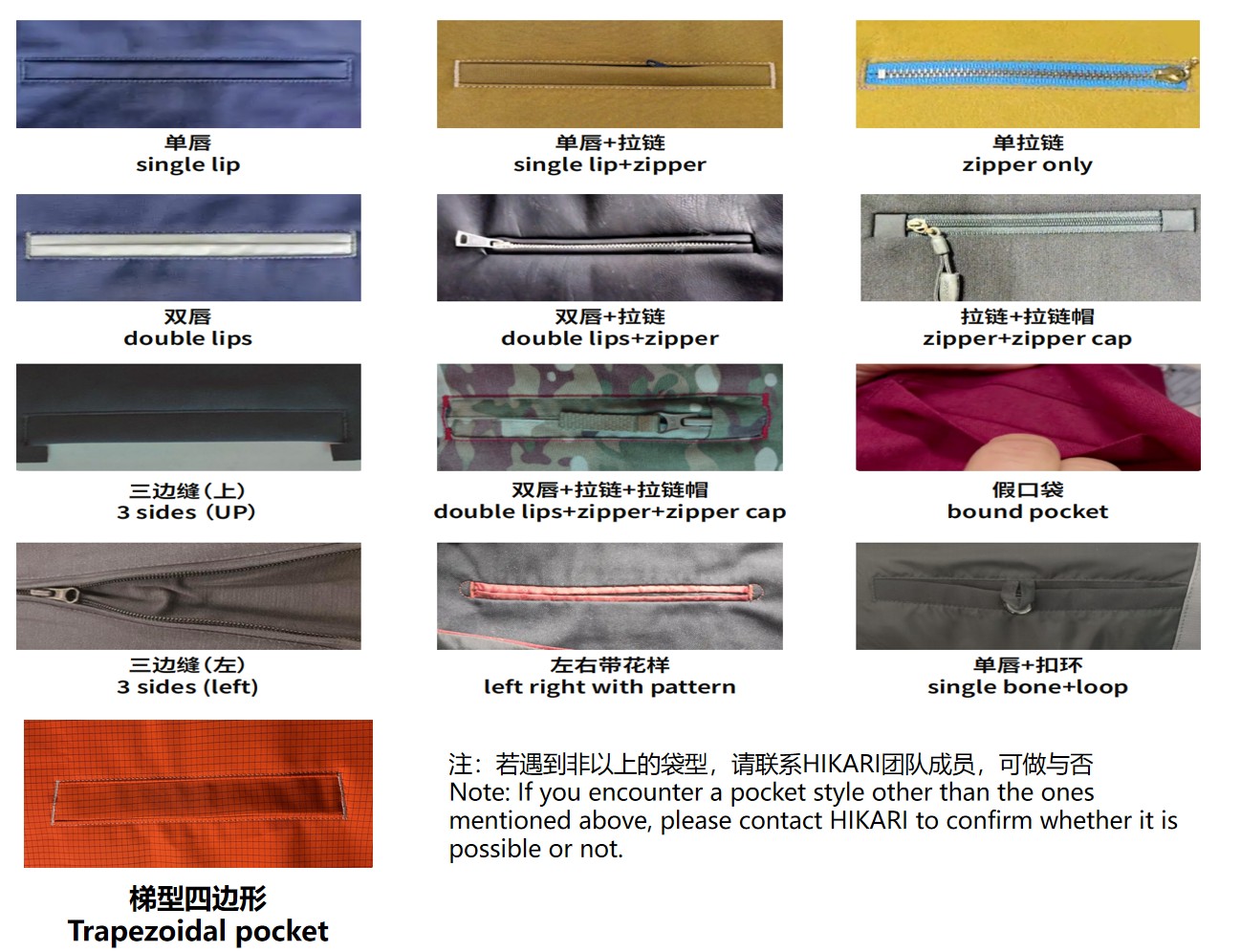

Available pocket opening processes: single lip, single lip + zipper, single zipper, double lip, double lip + zipper, zipper + zipper flap, top 3-side stitch, double lip + zipper + flap, fake pocket
-

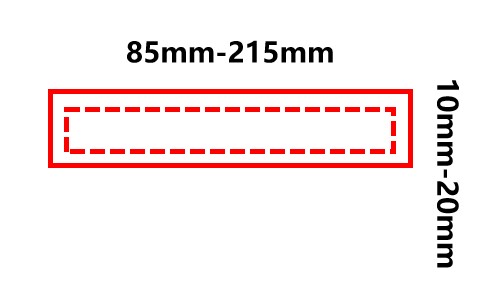

Pocket sewing size: width 10–20mm, length 85–215mm
Product Specifications
| Rotational speed | 3000rpm/min | 3000rpm/min |
| efficiency | Vibrating knife fake pocket for 36 seconds 900-1000 in hours a day |
Vibrating knife fake pocket for 36 seconds 900-1000 in hours a day |
| Vibrating knife real pocket for 43 seconds 800-900 in hours a day |
Vibrating knife real pocket for 43 seconds 800-900 in hours a day |
