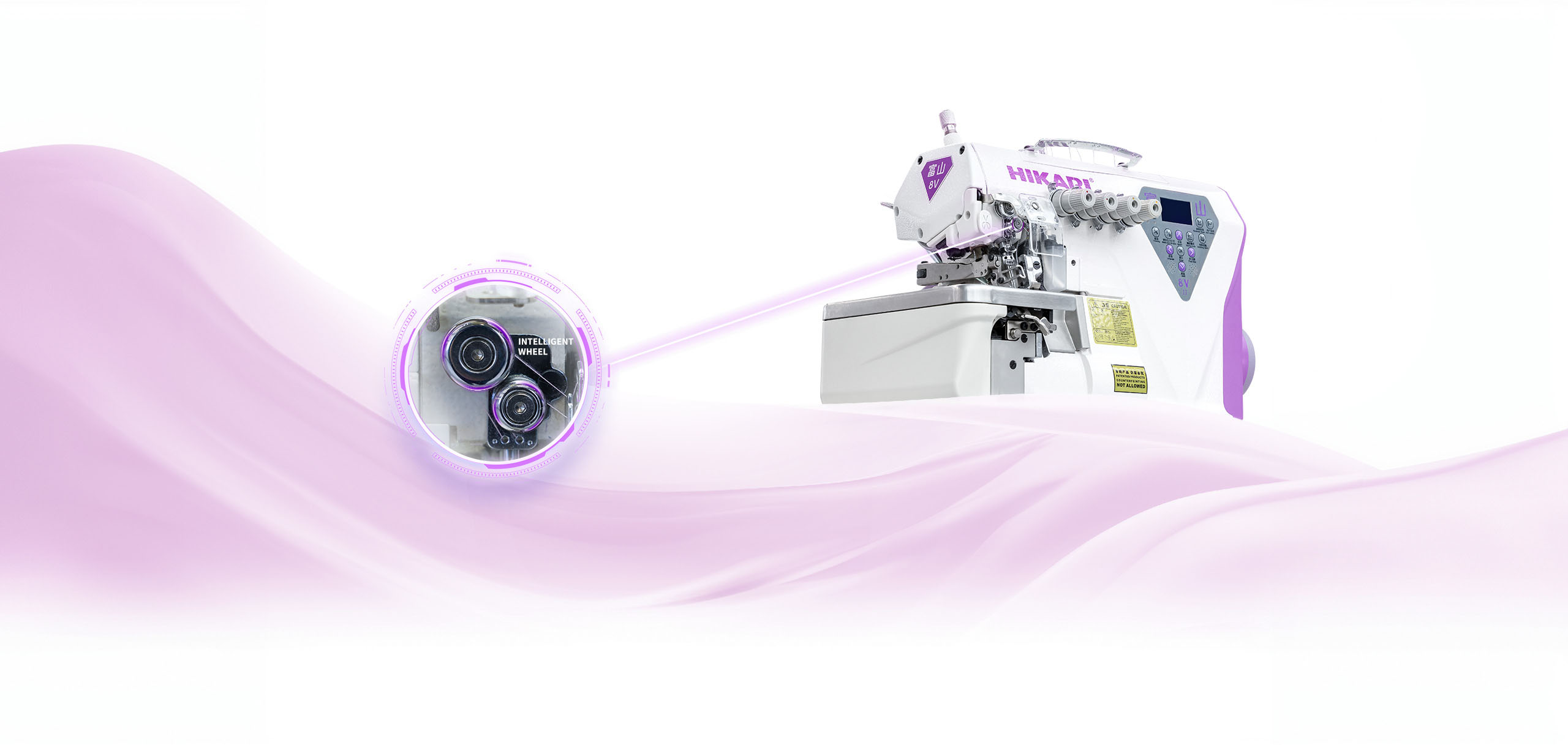

New generation of intelligent
overlock sewing machine
overlock sewing machine
HX8VII Series
beautiful stitch

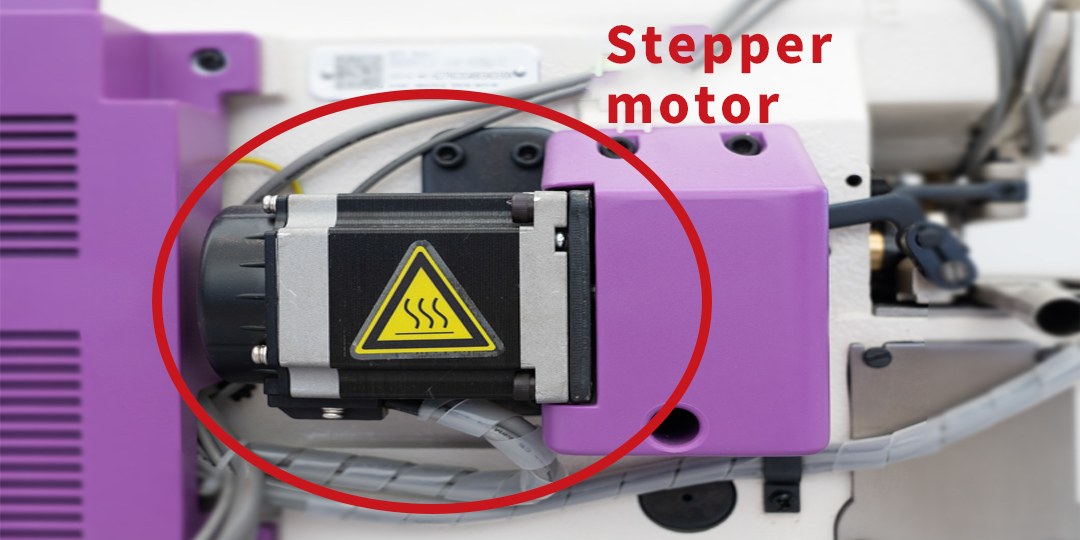

with intelligent thread tension technology
-
From thin to thick fabrics,
the stitches remain beautiful. -
Wrinkling on thin fabrics
significantly improved. -
Thread breakage rate
reduced by 80%.
Optional IoT,realizing device network connection,boosting enterprises building digital factories.
Thread tension reduced
Easy and efficient thread hole passing
Odds of thread breakage greatly reduced.
Soft and quiet
Thickness self-adaptation
-
Thread tension reduced
Average thread tension reduced40.4%
-

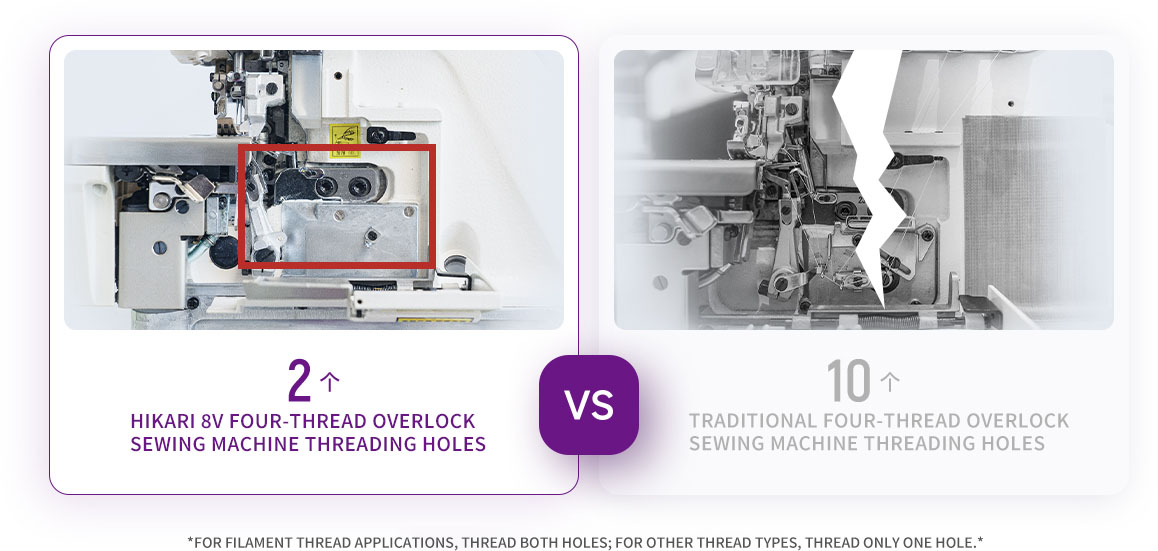

Easy and efficient thread hole passing
80% reduction of thread passing holes inside bent needle cover, easy and efficient.
-
Odds of thread breakage greatly reduced.
Thread breakage rate reduced by80%
-
Soft and quiet

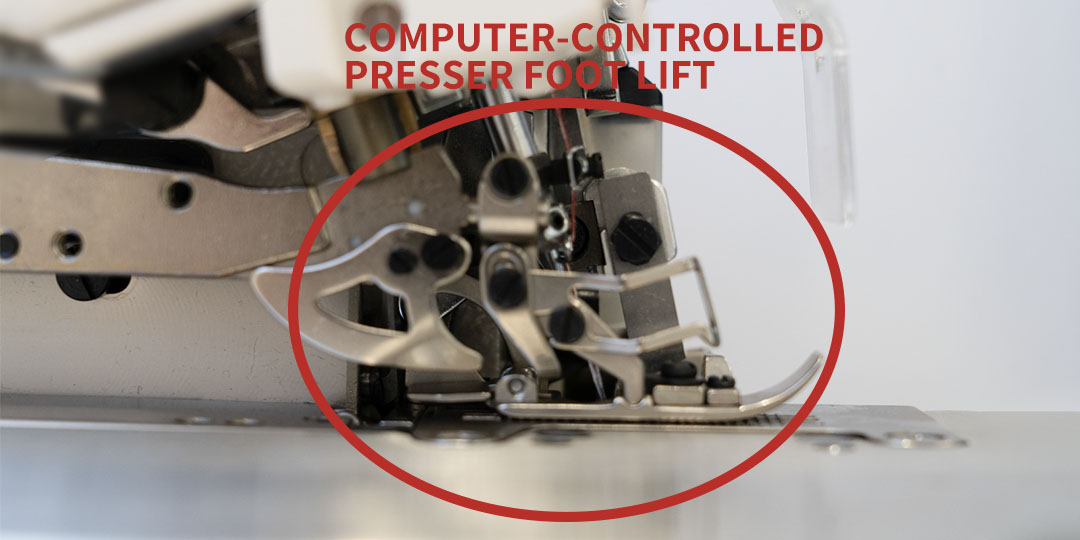

Computer-controlled foot lifting,soft noise.
-
Thickness self-adaptation
From skin - friendly clothing, mesh, knitted fabrics, woven fabrics to 12 - layer denimIt features thickness self - adaptation and beautiful stitches
-
Thread tension reduced
-
Easy and efficient thread hole passing
-
Odds of thread breakage greatly reduced.
-
Soft and quiet
-
Thickness self-adaptation
Product Specifications
| Box type | Needle | No.Of needles | No.Of threads | Needle gauge | Stitch width | Stitch length | Differential ratio | Height of presser foot | Light-Weight Materials | Medium-Weight Materials | Heavy-Weight Materials | Sewing Speed | Packaging Dimensions |
| HX8VII-04-02C | DCx27 | 1 | 3 | 0 | 4mm | 0.6-4.5 | 0.7-1.6 | 7.0 |  |
7000 | 534x368x546mm | ||
| HX8VII-04-02KSC | DCx27 | 1 | 3 | 0 | 4mm | 0.6-4.5 | 0.7-1.6 | 7.0 | |
7000 | 534x368x546mm | ||
| HX8VII-14-03C | DCx27 | 2 | 4 | 2 | 4mm | 0.6-4.5 | 0.7-1.6 | 7.0 | |
|
7000 | 534x368x546mm | |
| HX8VII-14-04C | DCx27 | 2 | 4 | 2 | 4mm | 0.6-4.5 | 0.7-1.6 | 7.0 | |
|
|
7000 | 534x368x546mm |
| HX8VII-14-04B1/C | DCx27 | 2 | 4 | 2 | 7mm | 0.6-4.5 | 0.7-1.6 | 7.0 | |
|
7000 | 534x368x546mm | |
| HX8VII-14-03S/C | DCx27 | 2 | 4 | 2 | 2mm | 0.6-4.5 | 0.7-1.6 | 7.0 | |
|
7000 | 534x368x546mm | |
| HX8VII-14-03Q/C | DCx27 | 2 | 4 | 2 | 4mm | 0.6-4.5 | 0.7-1.6 | 7.0 | |
|
7000 | 534x368x546mm | |
| HX8VII-14-03KSC | DCx27 | 2 | 4 | 2 | 4mm | 0.6-4.5 | 0.7-1.6 | 7.0 | |
|
7000 | 534x368x546mm | |
| HX8VII-14-03KHC | DCx27 | 2 | 4 | 2 | 4mm | 0.6-4.5 | 0.7-1.6 | 7.0 | |
|
7000 | 534x368x546mm | |
| HX8VII-14-83BL/C | DCx27 | 2 | 4 | 2 | 4mm | 0.6-4.5 | 0.7-1.6 | 7.0 | |
|
7000 | 534x368x546mm | |
| HX8VII-14-84BL/C | DCx27 | 2 | 4 | 2 | 4mm | 0.6-4.5 | 0.7-1.6 | 7.0 | |
|
|
7000 | 534x368x546mm |
| HX8VII-16-03C | DCx27 | 2 | 5 | 3 | 5mm | 0.6-4.5 | 0.7-1.6 | 5.5 | |
|
7000 | 534x368x546mm | |
| HX8VII-16-03B/C | DCx27 | 2 | 5 | 5 | 5mm | 0.6-4.5 | 0.7-1.6 | 5.5 | |
|
7000 | 534x368x546mm | |
| HX8VII-16-04C | DCx27 | 2 | 5 | 5 | 7mm | 0.8-5 | 0.7-1.6 | 7.0 | |
7000 | 534x368x546mm | ||
| HX8VII-16-03KHC | DCx27 | 2 | 5 | 3 | 5mm | 0.6-4.5 | 0.7-1.6 | 5.5 | |
|
7000 | 534x368x546mm | |
| HX8VII-16-03C | DCx27 | 3 | 6 | 3x2 | 4mm | 0.6-4.5 | 0.7-1.6 | 5.5 | |
|
7000 | 534x368x546mm | |
| HX8VII-16-04C | DCx27 | 3 | 6 | 5x3 | 4mm | 0.8-5 | 0.7-1.6 | 7.0 | |
7000 | 534x368x546mm |
