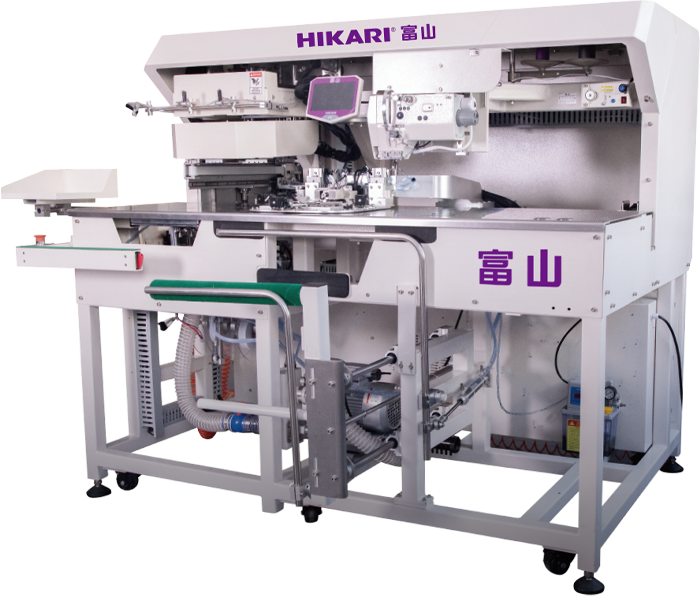

Intelligent pocket mold pocket attaching machine
HI-23-23/M
Intelligent pocket mold with auto-expanding frame for same pocket shape – no mold change required
One-key replacement of pocket folding and frame saves significant time
Saves about 2–3 hours per mold change, greatly improving efficiency
Other Usage Values
-
Automatic interlining feeding device; effectively solves breakage issues during washing by adding thick interlining at crotch seams
-

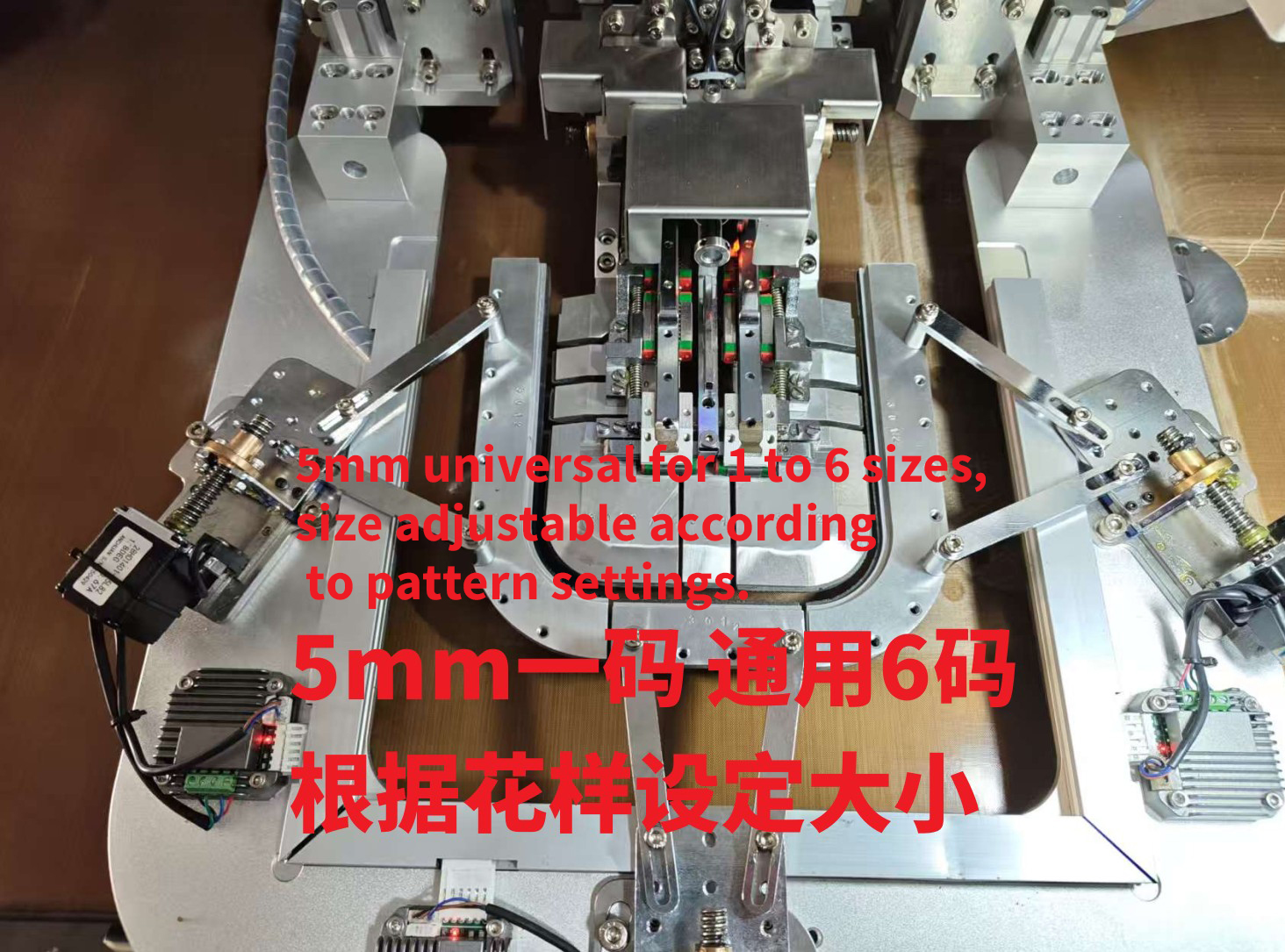

For same-shaped pocket molds: 5mm per size, compatible with 6 sizes; adjustable via pattern settings, saving 5 sets of pressing molds and change time
-

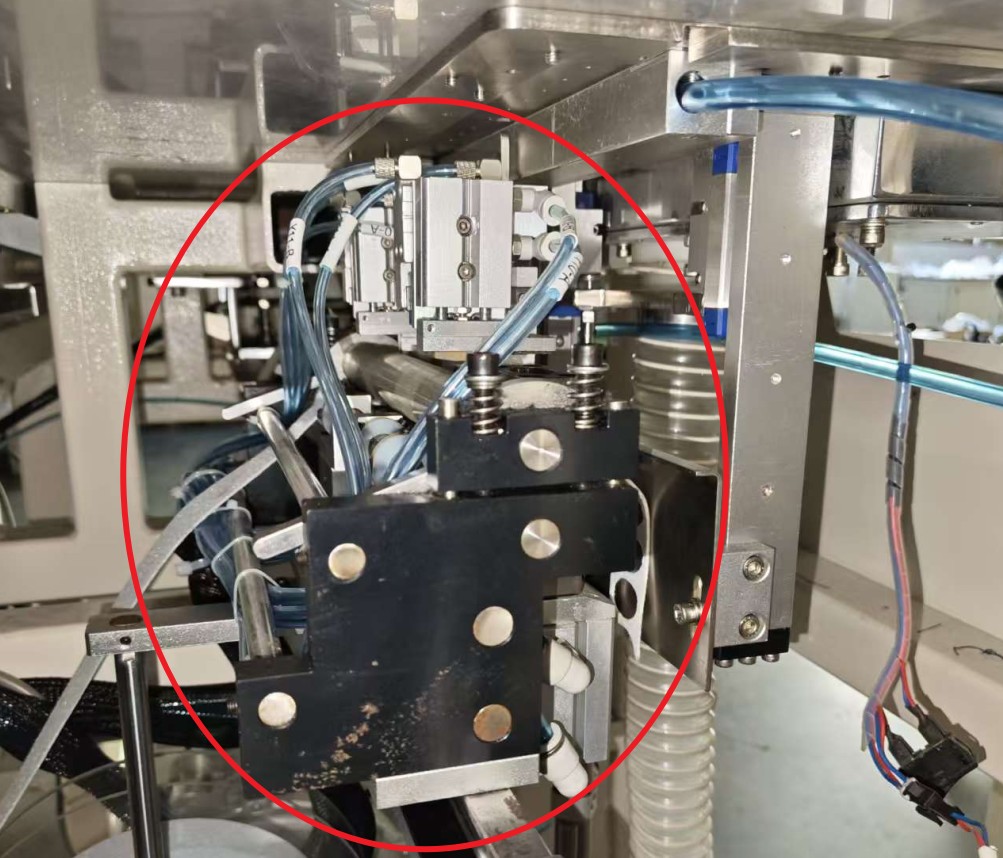

Automatic pressure during sewing: inner plate lightly holds 4-way stretch fabric after folding, then feeds to starting point; applies set pressure automatically for flat, beautiful pockets
-

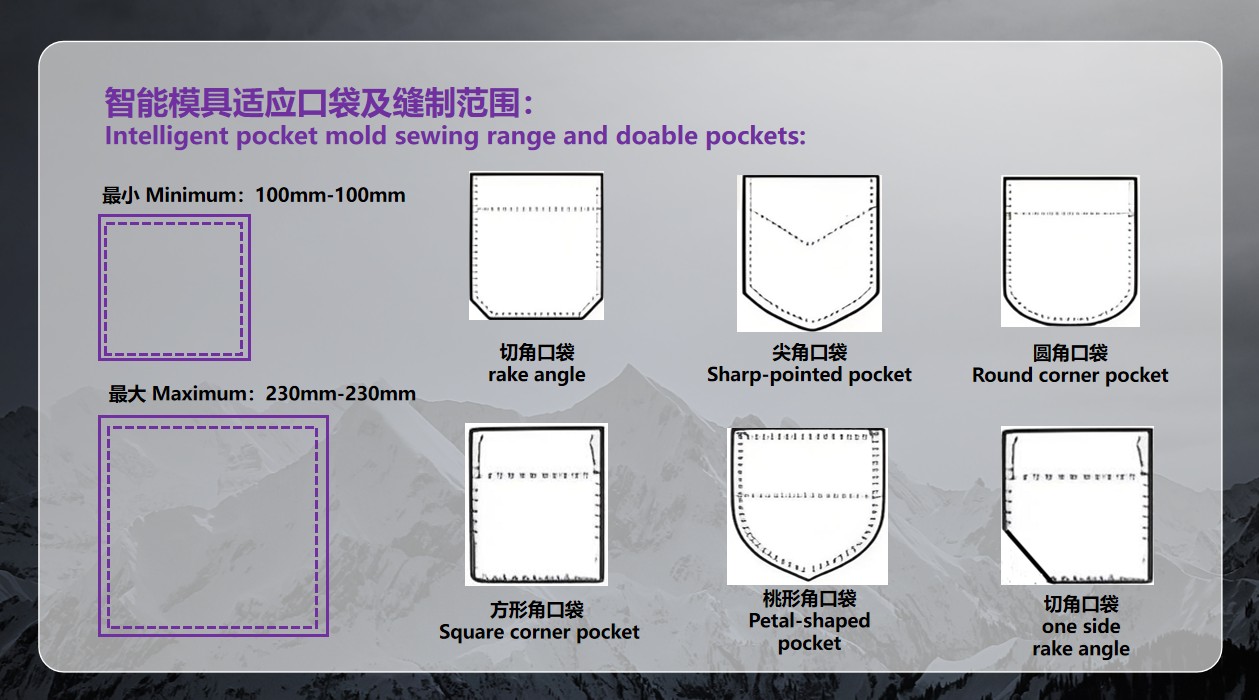

Intelligent mold applicable pockets: angled, pointed, round, square, peach-shaped pockets. Sewing range: min 100×100mm, max 230×230mm
Product Specifications
| Model | Needle Gauge | Needle | Max. Production Capacity | Rated Power | Operating Air Pressure | Net Weight | Sewing Speed | Packaging Dimensions |
| HI-23-23/M | Standard 2.5mm Optional 0-12.7mm |
DBx17 | 2.5MM.150Needles 300Packages/1小时 |
0.7KW | 5bar | 787KG | 4000 | 665x260x570mm |
