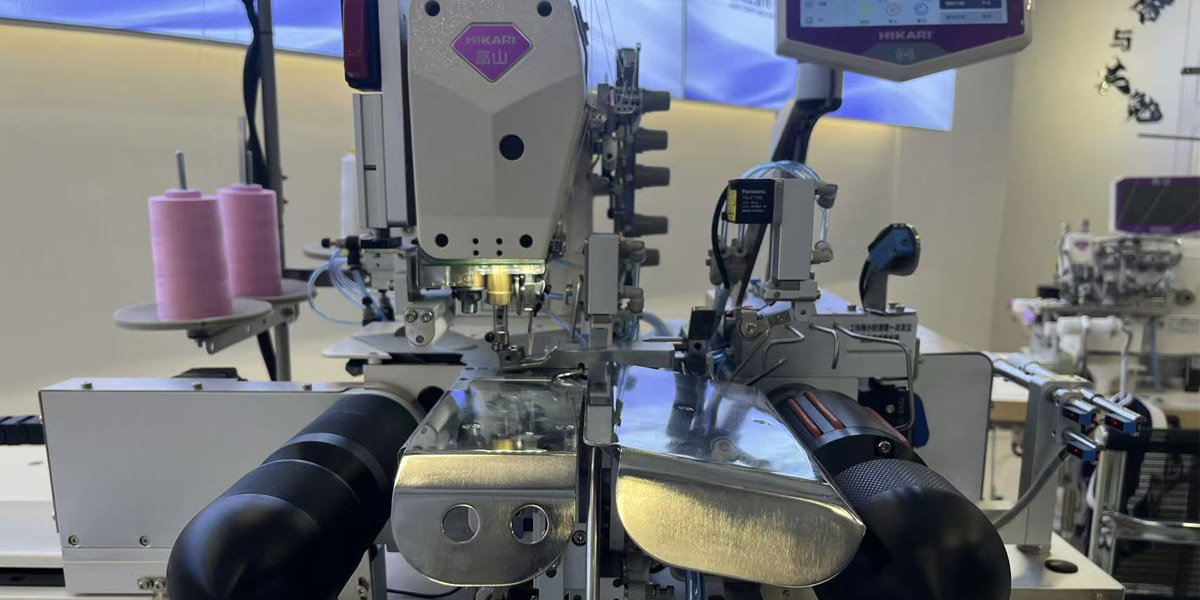

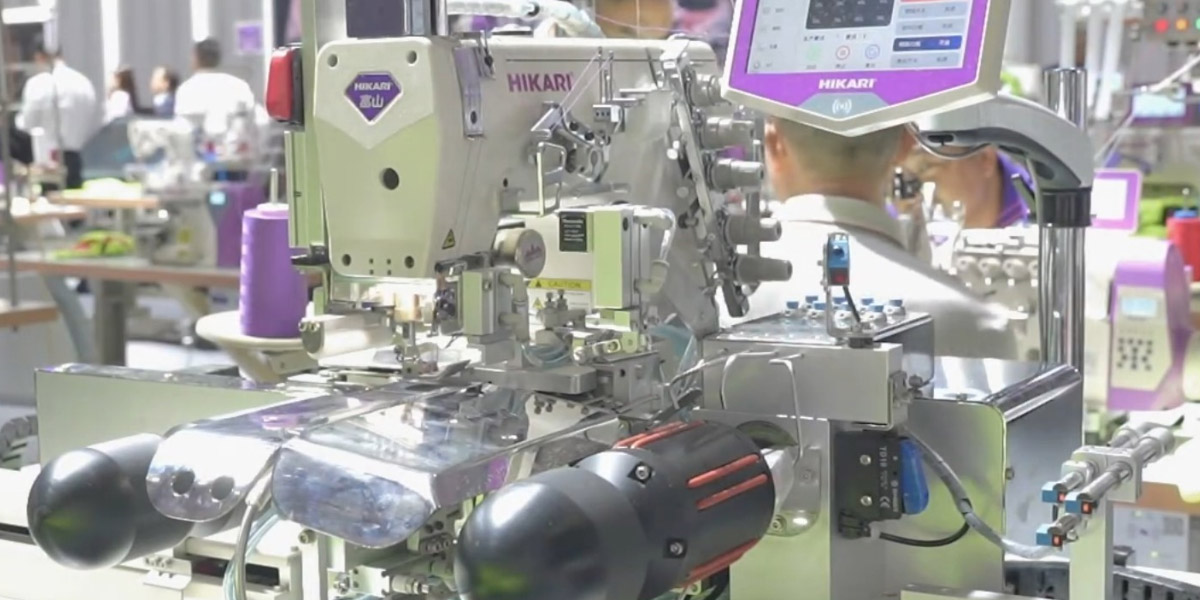

HSAT-K1A
Key Buying Points
-
01
High productivity: one person controls 2 units, single unit efficiency 2000-2500 pieces /10 hours
-
02
Easy for novices to operate, Reduce operator dependence on sewing skill, only unload material, automatic sewing.
-
03

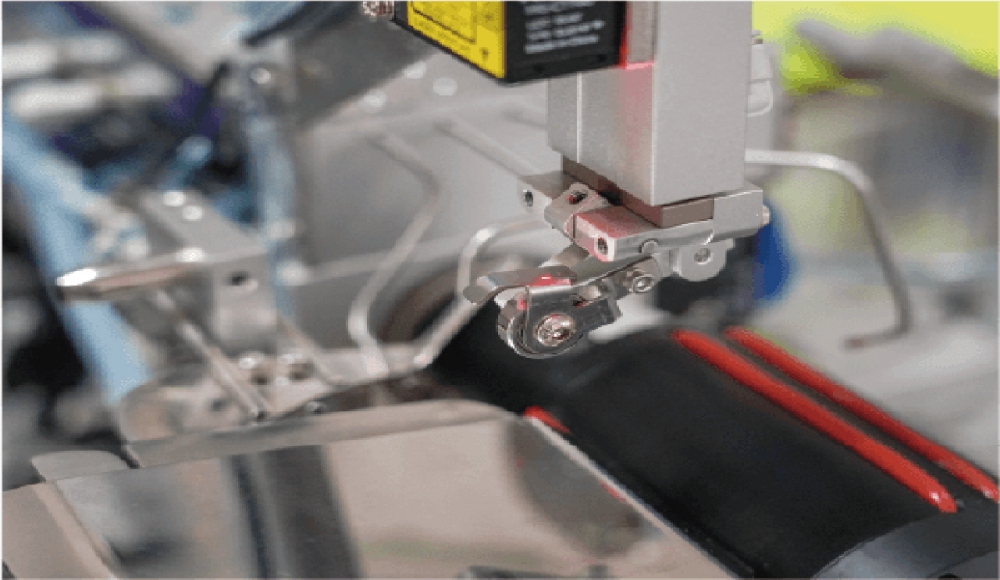

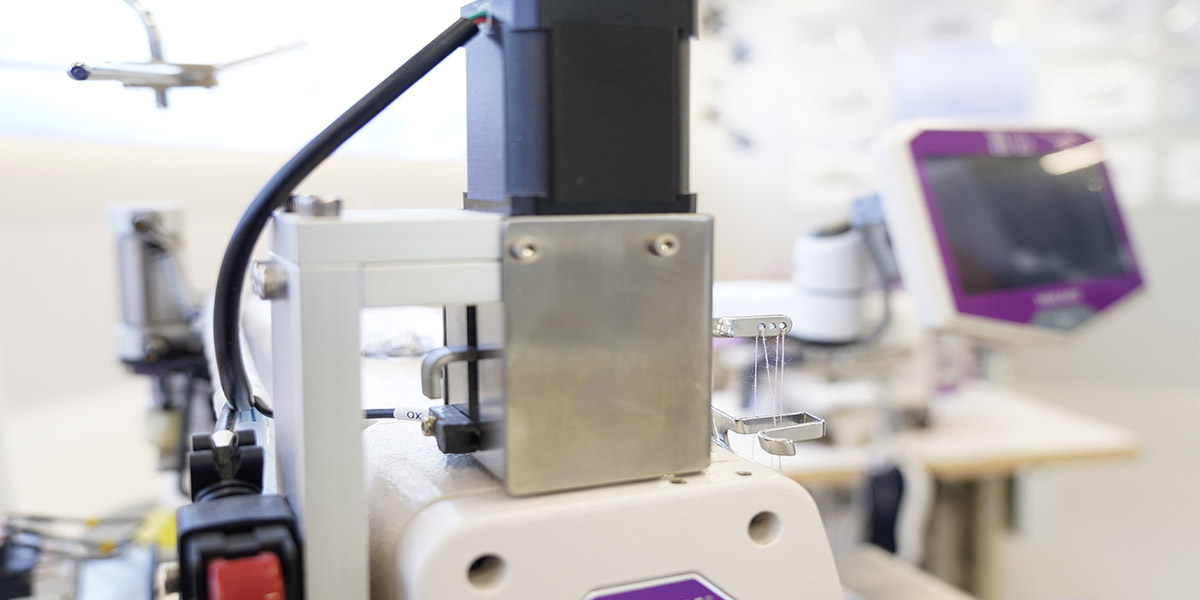

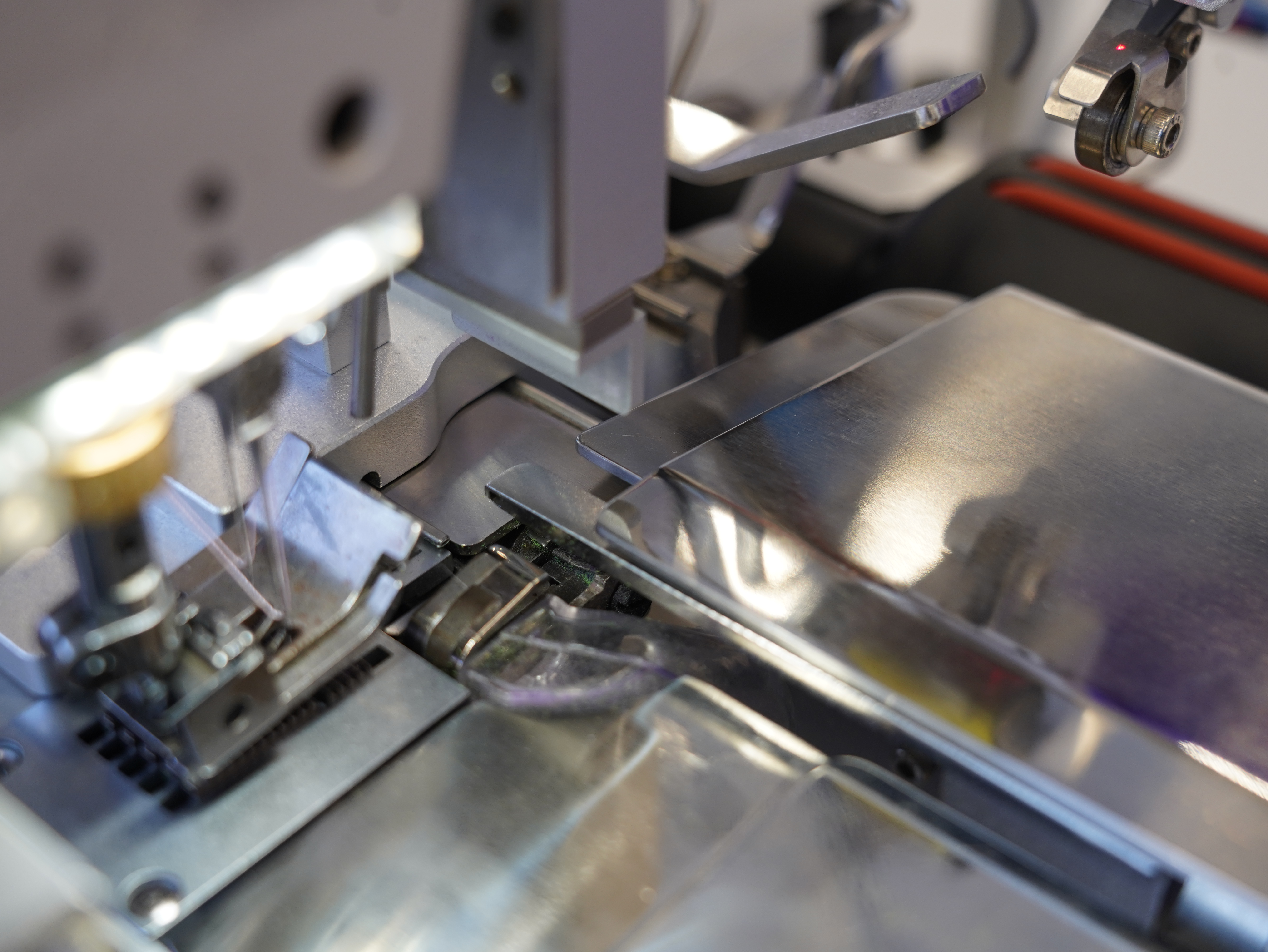

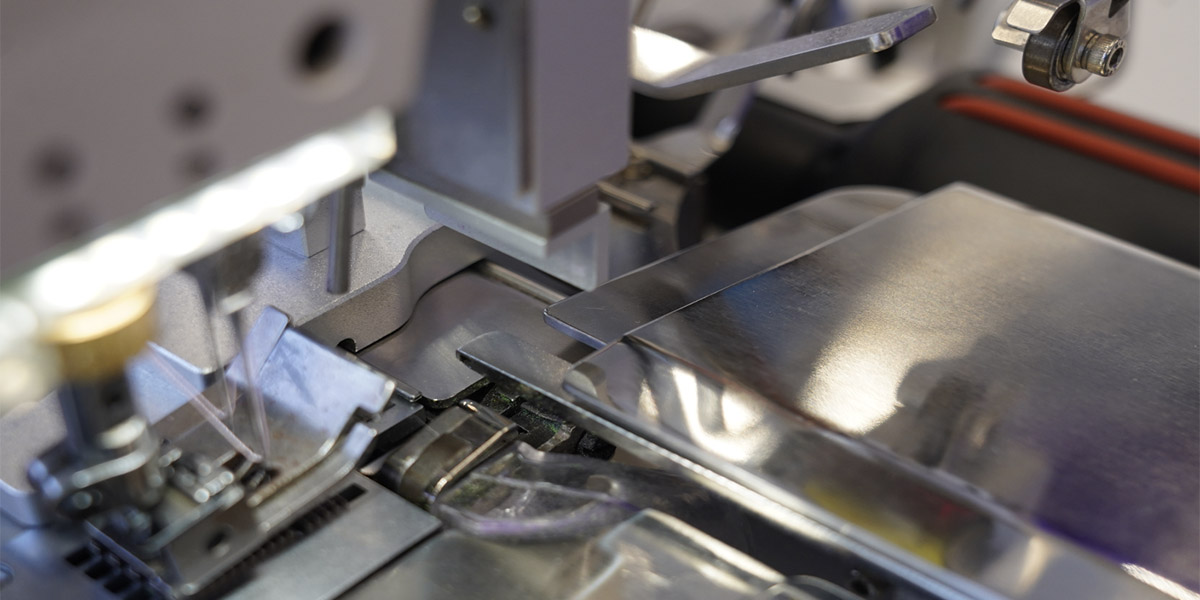

Presser foot pressure automatic induction lifting function: replace mechanical adjustment, fast and accurate
-
04

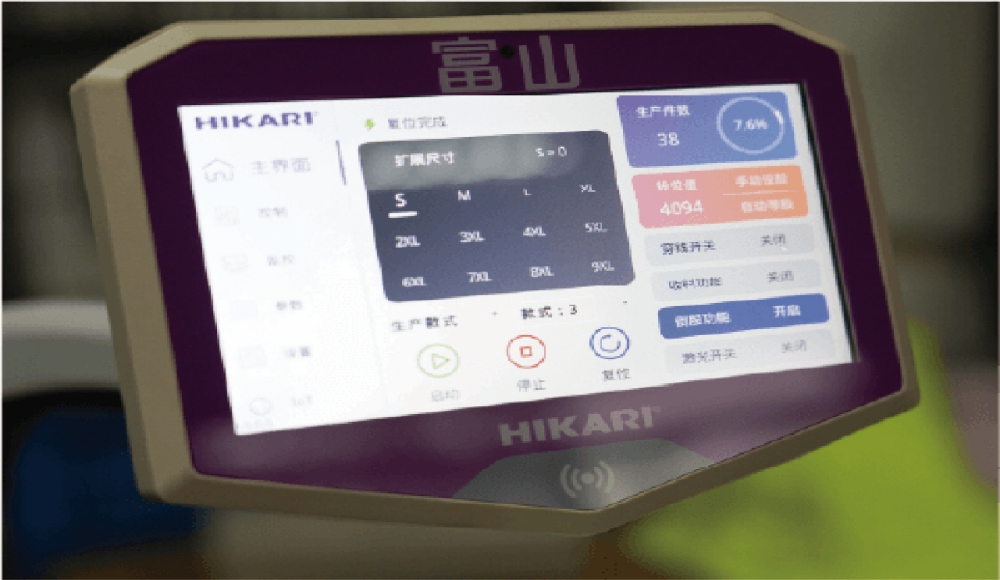

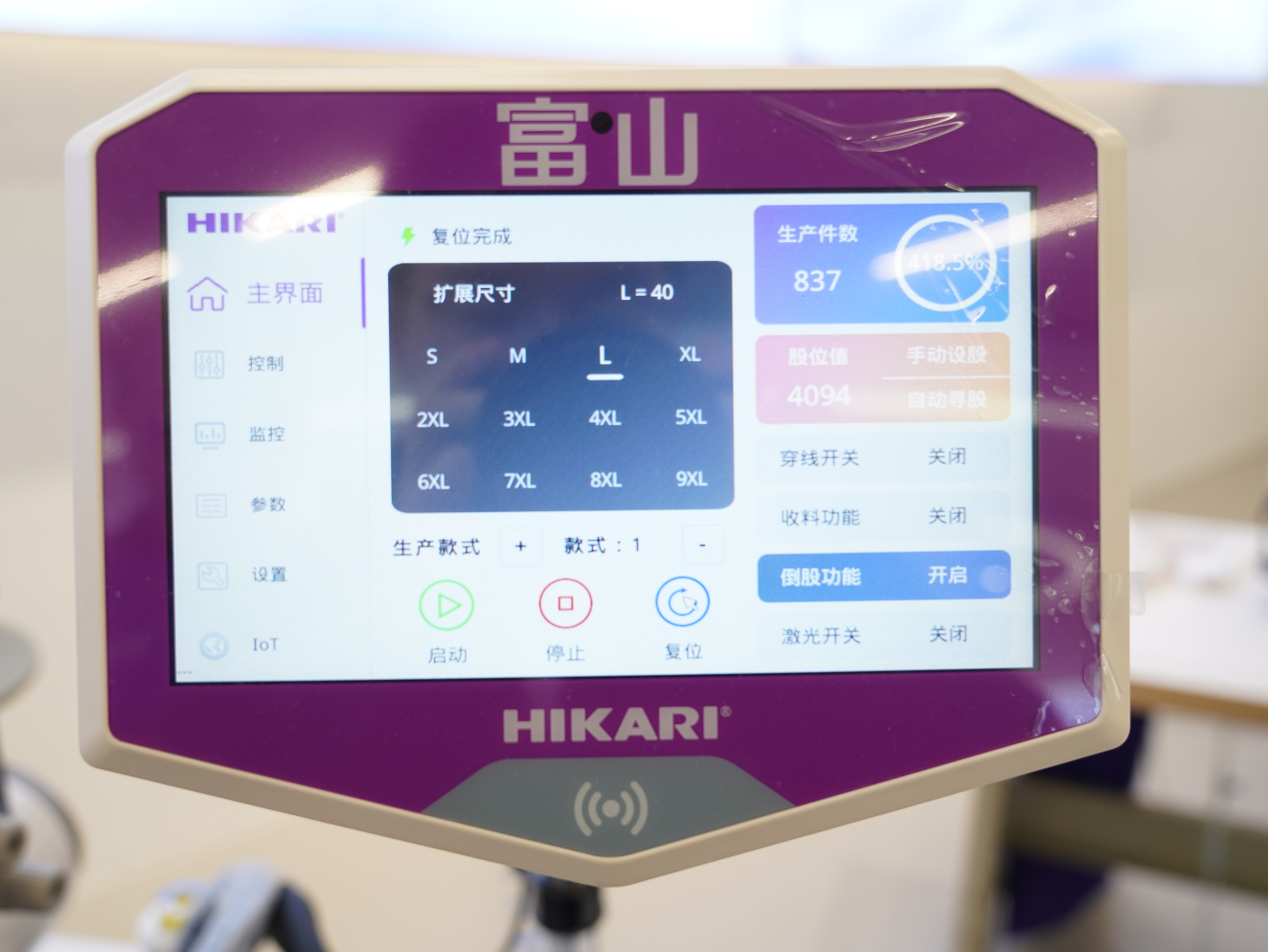

One click change style: Each parameter is automatically stored to improve the efficiency of exchange
Functions
Automatic flat banding function to meet the needs of high quality process
Mixed size automatic identify, mixed size sewing, fast and efficient

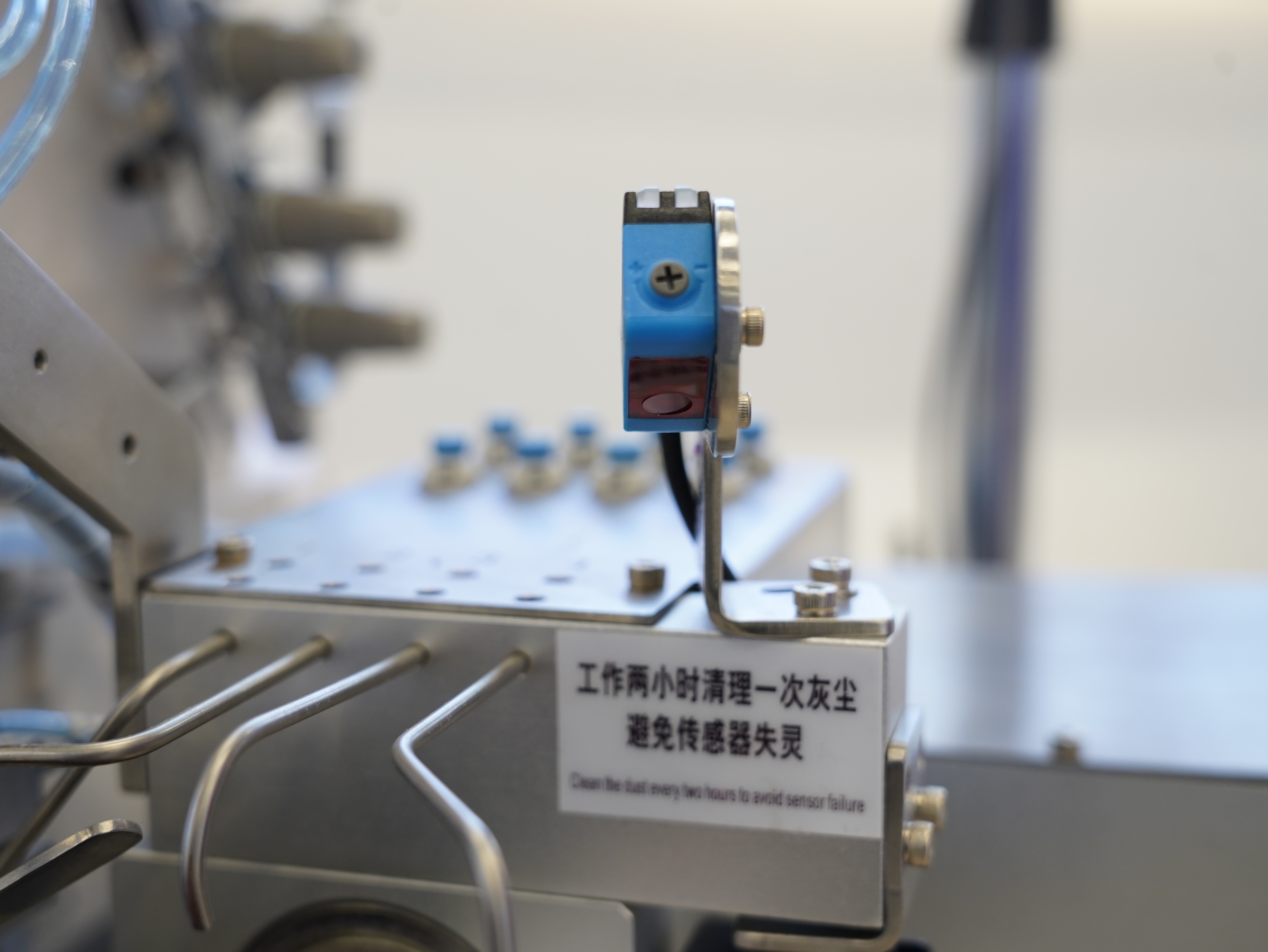

Sewing start by sensor, automatic thread breakage detection, automatic piece account function, automatic collection function

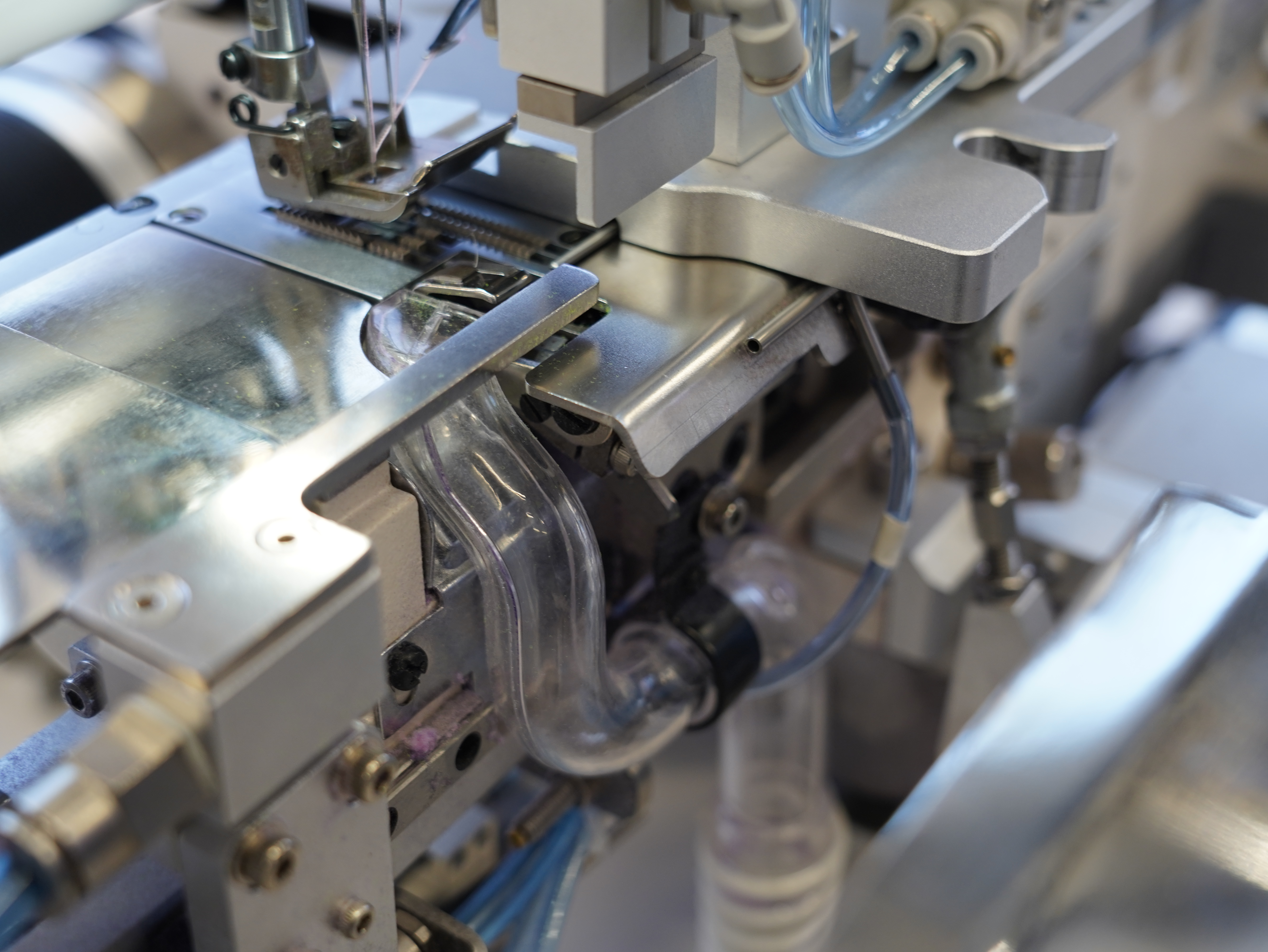

Left presser foot and trimming suction on same time.
Locking stitch function to avoid skip stitch (optional)
Configure HIKARI IOT functions. Implement device network connection function. Help customer build digital factories.
Product Specifications
| Model | Needle | No. Of Needles | No. Of Threads | Needle Gauge | Stitch Length | Differental Ratio | Height Of Presser Foot | T-Shirt Hemming Width | Hemming Range (Circumference) | Sewing Speed | Packaging Dimensions |
| HSAT-K1A | UY128GA | 3 | 5 | 5.6 | 4.5 | 0.8-1.8 | 7mm | 1.5-3.5cm | 166cm | 4000 | 1300x1024x1355mm |
| HSAT-K1A/LV | UY128GA | 3 | 5 | 5.6 | 4.5 | 0.8-1.8 | 7mm | 1.5-3.5cm | 166cm | 4000 | 1300x1024x1355mm |
| HSAT-K1A/S | UY128GA | 3 | 5 | 5.6 | 4.5 | 0.8-1.8 | 7mm | 1.5-3.5cm | 166cm | 4000 | 1300x1024x1355mm |
| HSAT-K1A/LV/S | UY128GA | 3 | 5 | 5.6 | 4.5 | 0.8-1.8 | 7mm | 1.5-3.5cm | 166cm | 4000 | 1300x1024x1355mm |
