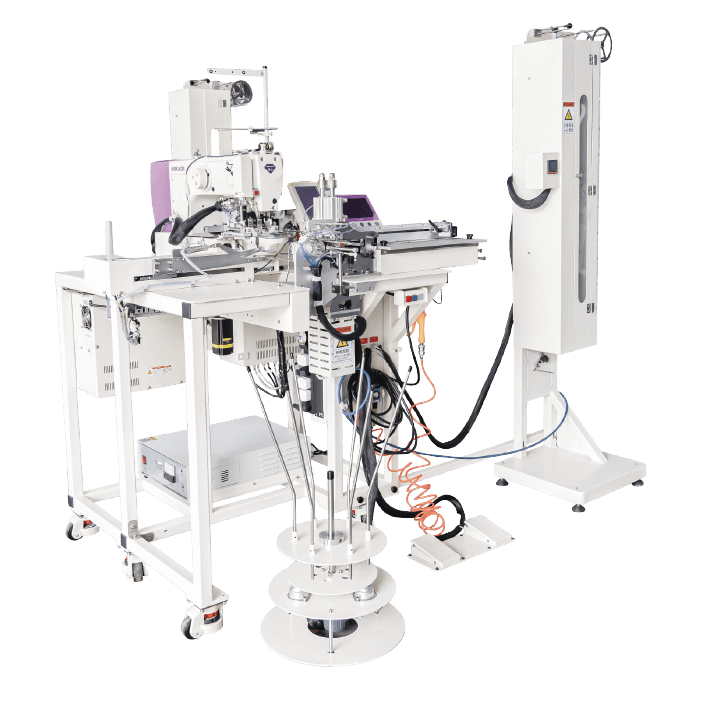

Automatic elastic attaching machine (pattern head)

HAT-K5A

Extra-wide sewing range available


Key Use Value

Equipped with pattern sewing
head for more beautiful stitches

Cutting method: ultrasonic / cold knife

Elastic sewing width range: 8–80 mm

Standard minimum sewing circumference: 200 mm
custom minimum 150 mm
available for special processes

Key Use Value-1

Key Use Value-2

Key Use Value-3

Key Use Value-4

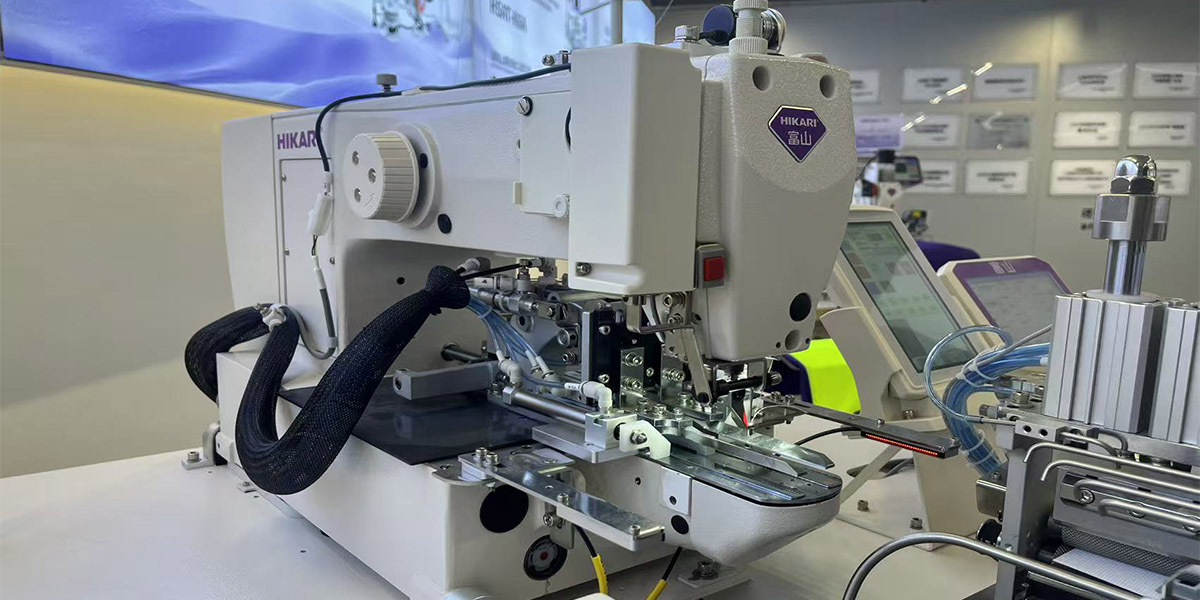

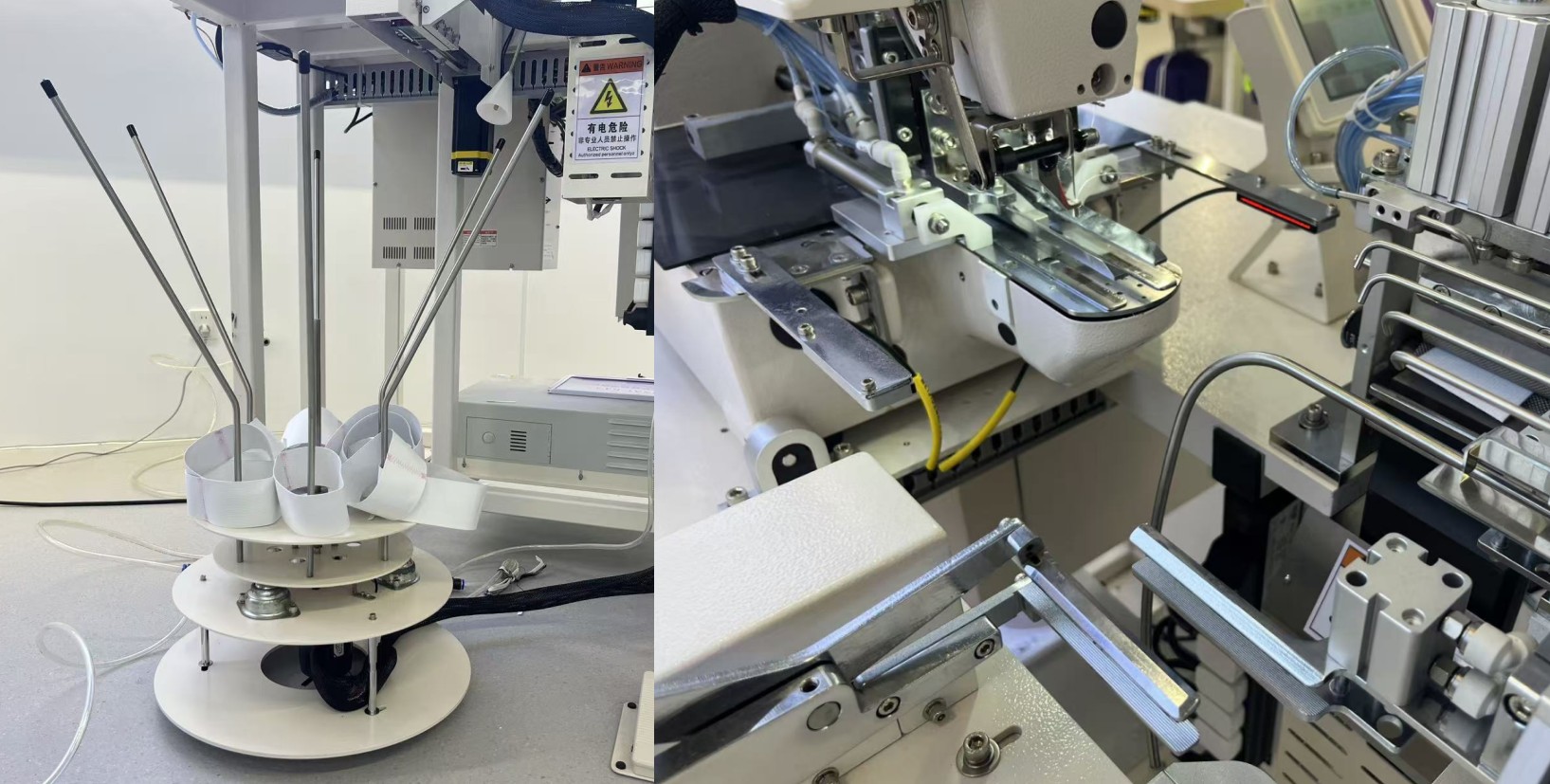

Automatic 3-point positioning meets high-end product requirements

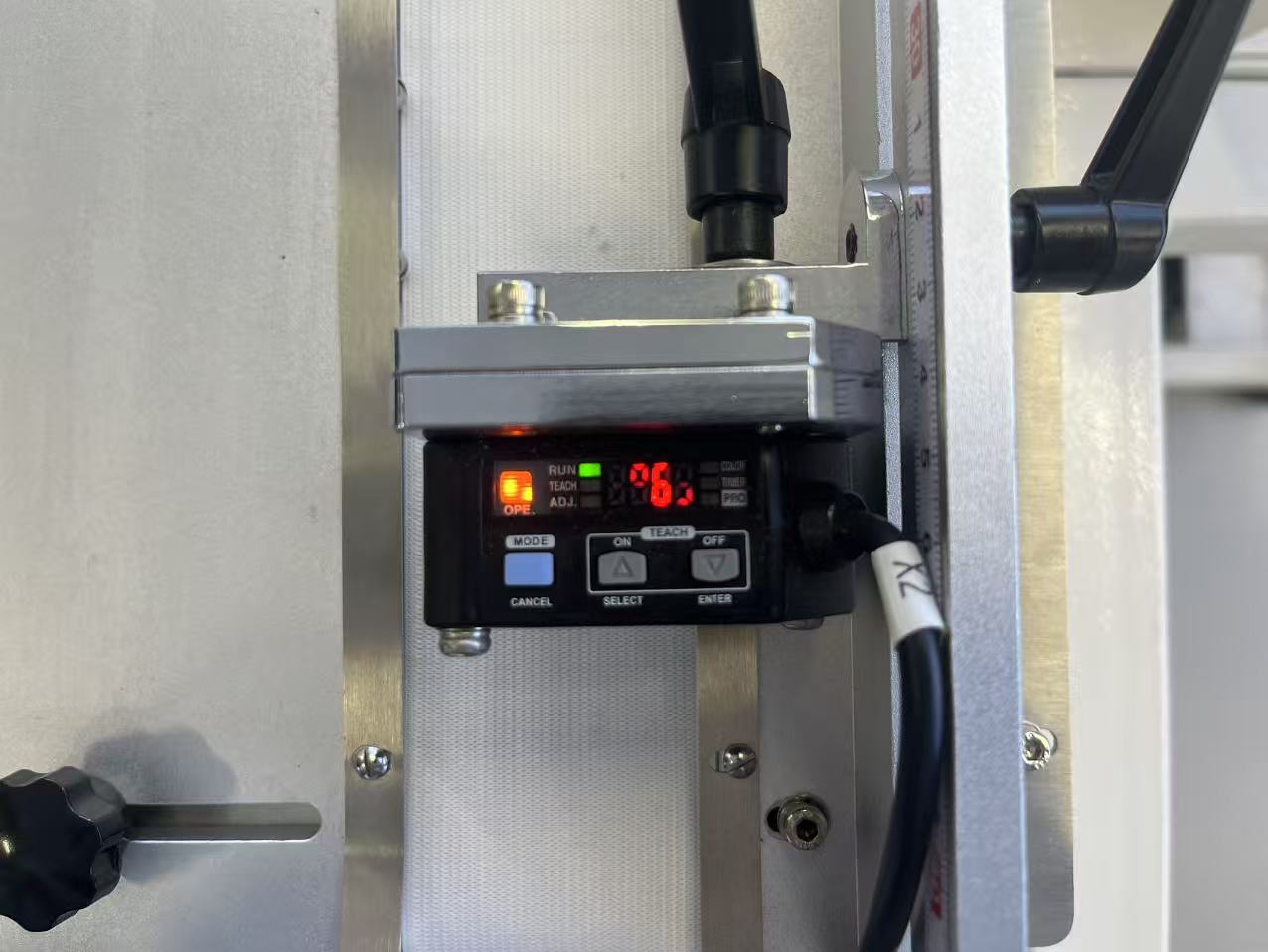

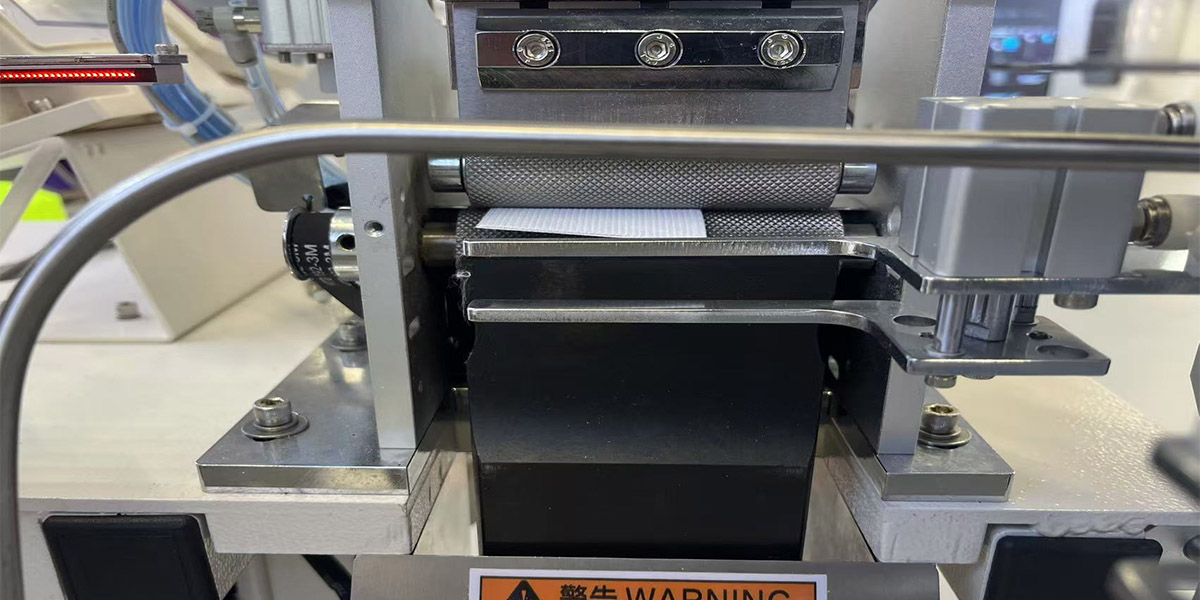

Automatically identifies single and multiple logo positions

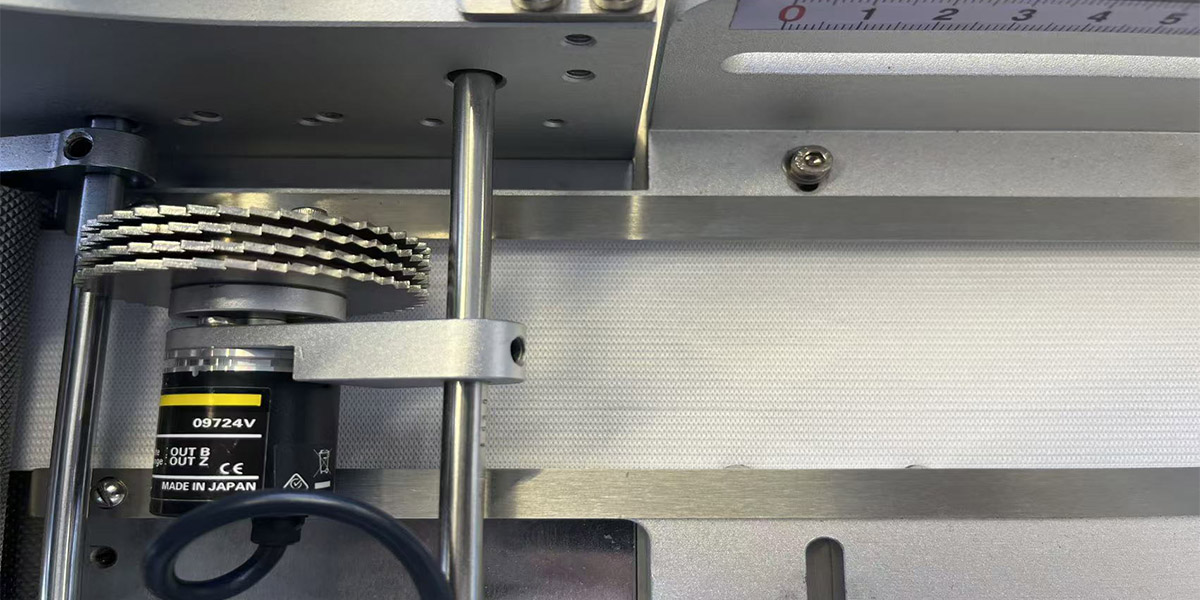

Automatically cuts, joins and collects materials according to product specifications

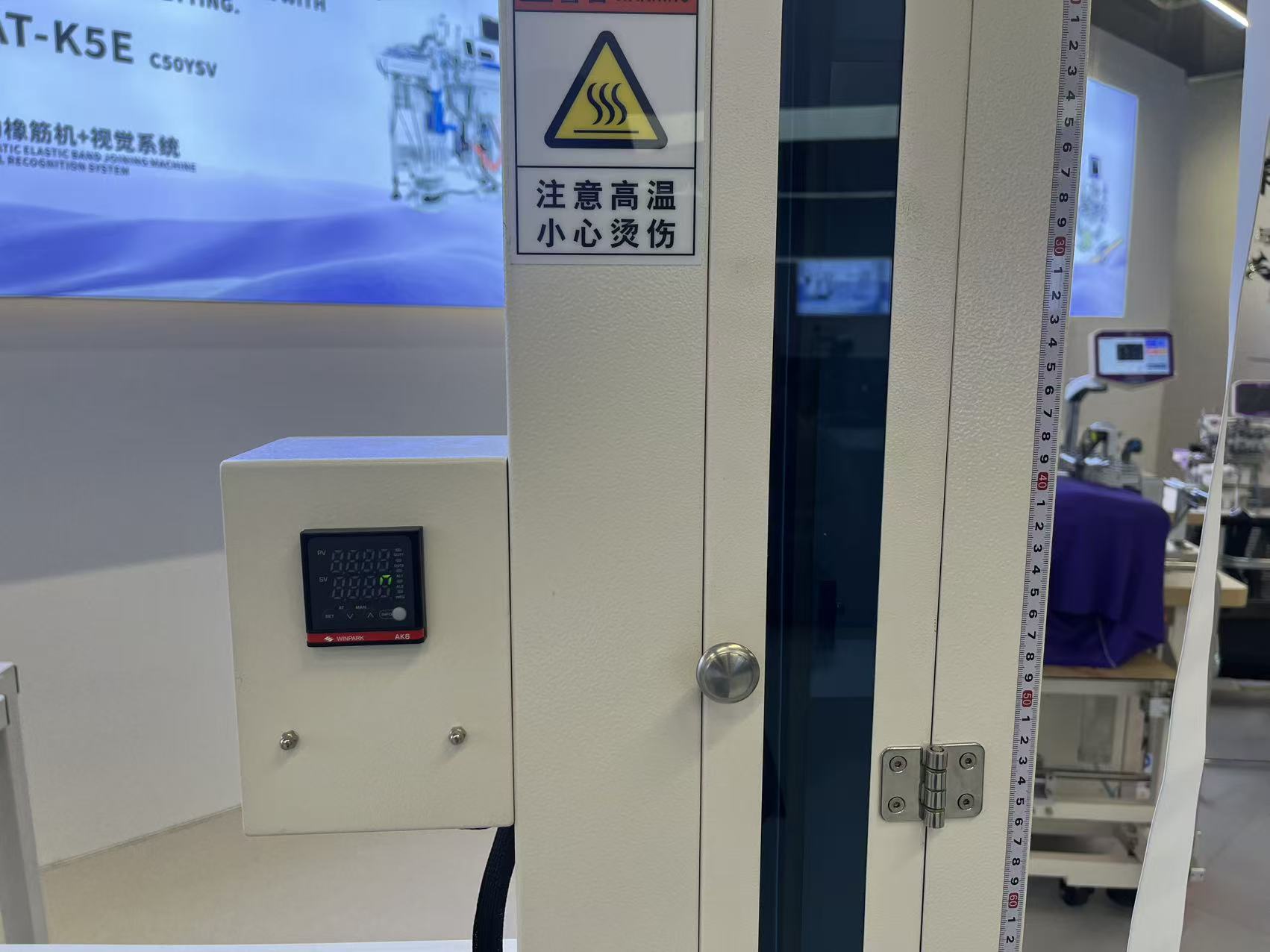

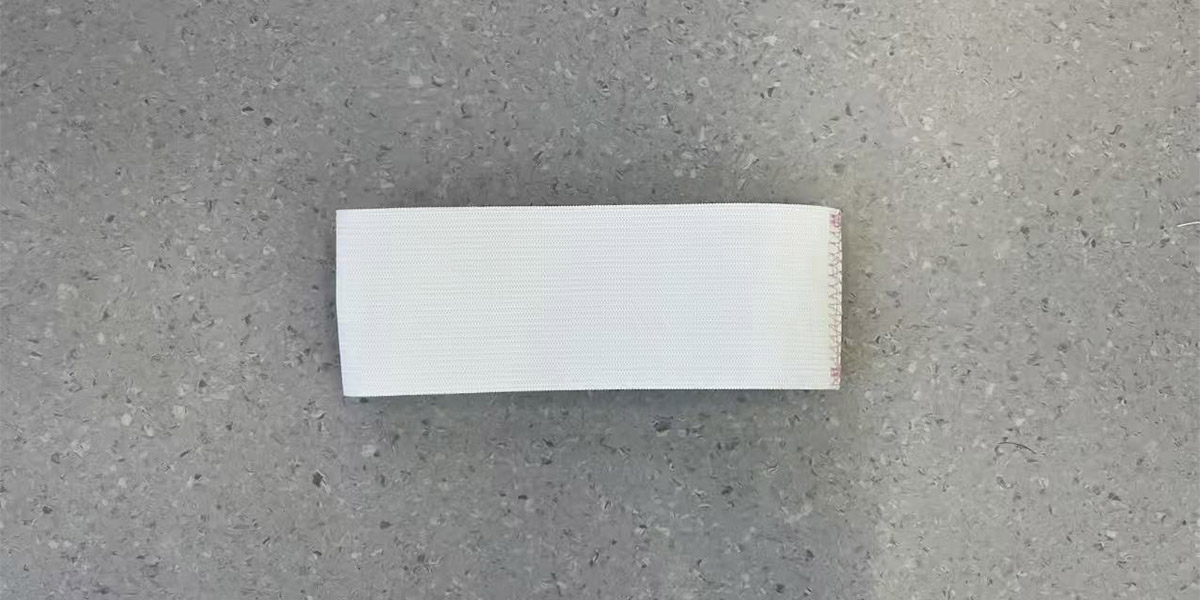

Automatic shaping & ironing ensures tidy and flat elastic ironing
Optional Hikari IoT Function for Equipment Network Connectivity, Helping Enterprises Build Digital Factories

Model	Model Number Legend	Needle	No. Of Needles	No. Of Threads	Needle Gauge	Height Of Presser Foot	Hemming Range (Circumference)	Elasticator Width Range	Sewing Speed	Packaging Dimensions
HAT-K5A-L50YSL	H-HIKARI AT-Auto K-Knitting 5-Elasticator A-2nd Generation L-Cooled Blade 50-Elasticator Sewing Specifications Y-Pressing Unit S-Collection Unit L-logo Recognition	DPx17Y DPx17B	1	2	0.05-12.7	8	200mm Circumference maximum Minimum 200mm circumference maximum unlimited	8-50mm	2800	1881x1210x1650mm
HAT-K5A-C50YSL	H-HIKARI AT-全自动 Knitting 5-Elasticator A-2nd Generation 50-Elasticator Sewing Specifications Y-Pressing Unit S-Collection Unit L-logoRecognition	DPx17Y DPx17B	1	2	0.05-12.7	8		8-50mm	2800	1881x1210x1650mm
HAT-K5A-C80YSL	H-HIKARI AT-全自动 Knitting 5-Elasticator A-2nd Generation 80-Elasticator Sewing Specifications Y-Pressing Unit S-Collection Unit L-logoRecognition	DPx17Y DPx17B	1	2	0.05-12.7	8		50-80mm	2800	1881x1210x1650mm
