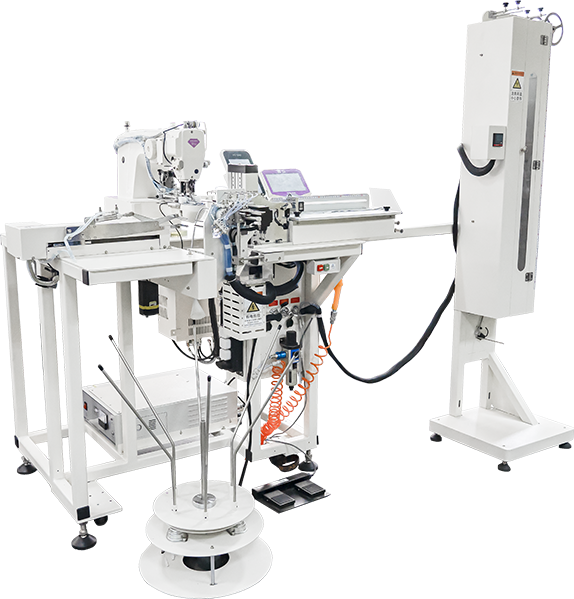

Intelligent automatic elastic attaching machine (bartack type)
HAT-K5D
Key Buying Points
-
01
Equipped with pattern sewing head for more beautiful stitches
-
02
Elastic sewing width range: 15–50 mm
-
03
Standard minimum sewing circumference: 150 mm
Functions
01
Automatic shaping & ironing ensures tidy and flat elastic ironing
02
Automatically identifies single and multiple logo positions
03
Automatically cuts, joins and collects materials according to product specifications
04
Optional Hikari IoT Function for Equipment Network Connectivity, Helping Enterprises Build Digital Factories
Product Specifications
| Model | Model Number Legend | Needle | No. Of Needles | No. Of Threads | Needle Gauge | Height Of Presser Foot | Hemming Range (Circumference) | Elasticator Width Range | Sewing Speed | Packaging Dimensions |
| HAT-K5A-L50YSL | H-HIKARI AT-Auto K-Knitting 5-Elasticator A-2nd Generation L-Cooled Blade 50-Elasticator Sewing Specifications Y-Pressing Unit S-Collection Unit L-logo Recognition |
DPx17Y DPx17B |
1 | 2 | 0.05-12.7 | 8 | 200mm Circumference maximum Minimum 200mm circumference maximum unlimited |
8-50mm | 2800 | 1881x1210x1650mm |
| HAT-K5A-C50YSL | H-HIKARI AT-全自动 Knitting 5-Elasticator A-2nd Generation 50-Elasticator Sewing Specifications Y-Pressing Unit S-Collection Unit L-logoRecognition |
DPx17Y DPx17B |
1 | 2 | 0.05-12.7 | 8 | 8-50mm | 2800 | 1881x1210x1650mm | |
| HAT-K5A-C80YSL | H-HIKARI AT-全自动 Knitting 5-Elasticator A-2nd Generation 80-Elasticator Sewing Specifications Y-Pressing Unit S-Collection Unit L-logoRecognition |
DPx17Y DPx17B |
1 | 2 | 0.05-12.7 | 8 | 50-80mm | 2800 | 1881x1210x1650mm |
