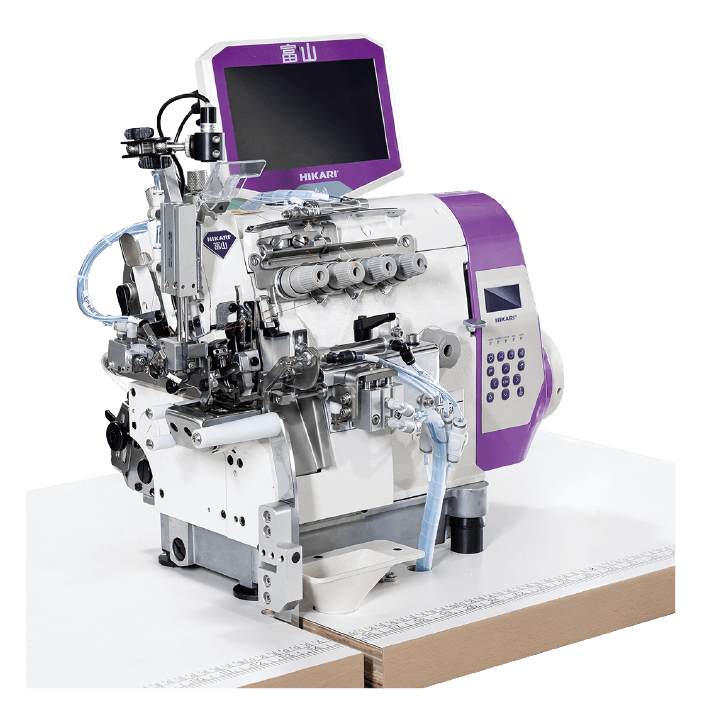

Automatic rib cuff / bottom attaching machine
HSAT-K6A
Key Use Value
Other Usage Values
-

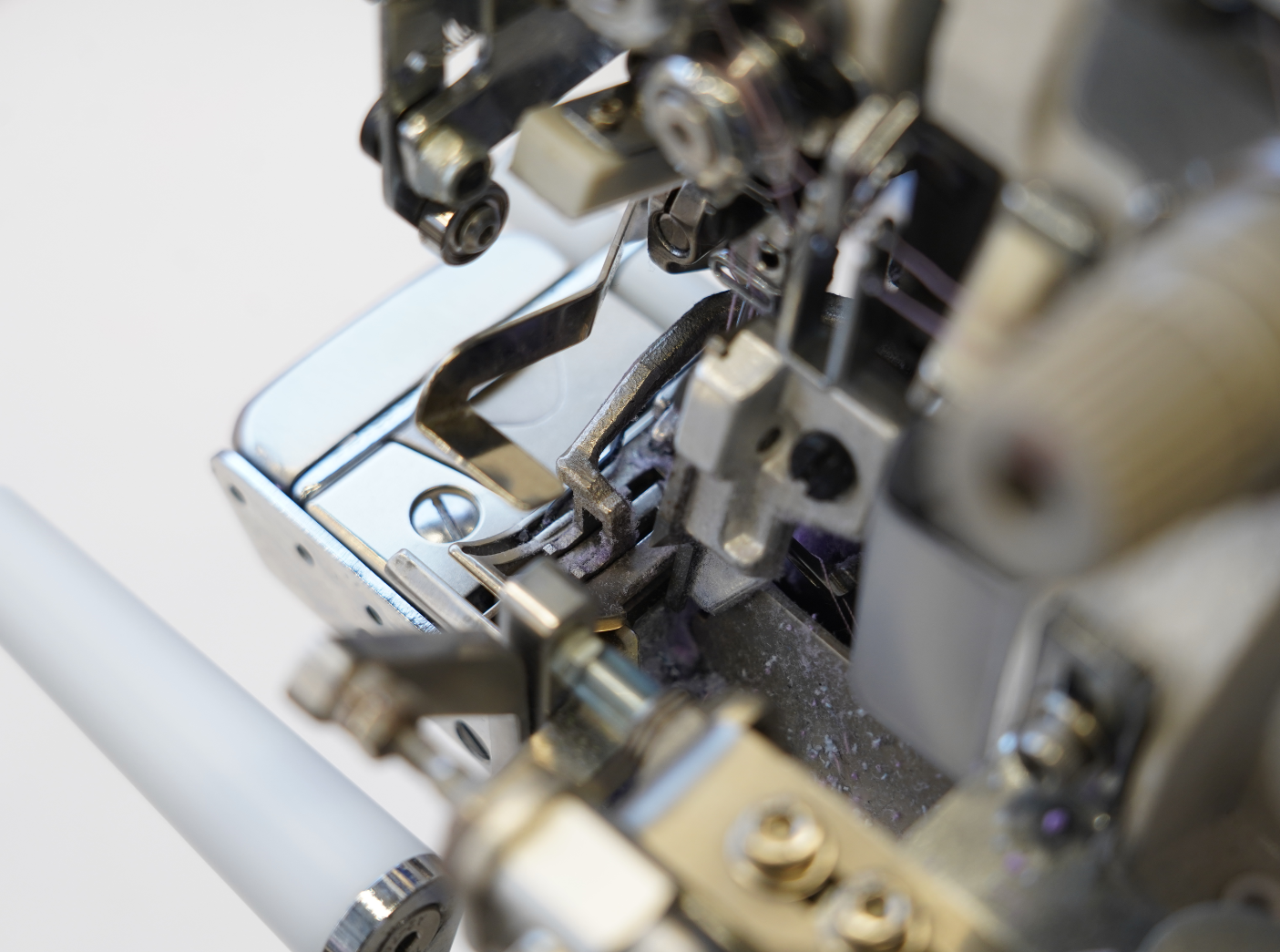

Automatic seam pressing: automatic side seam alignment for high-quality results
-

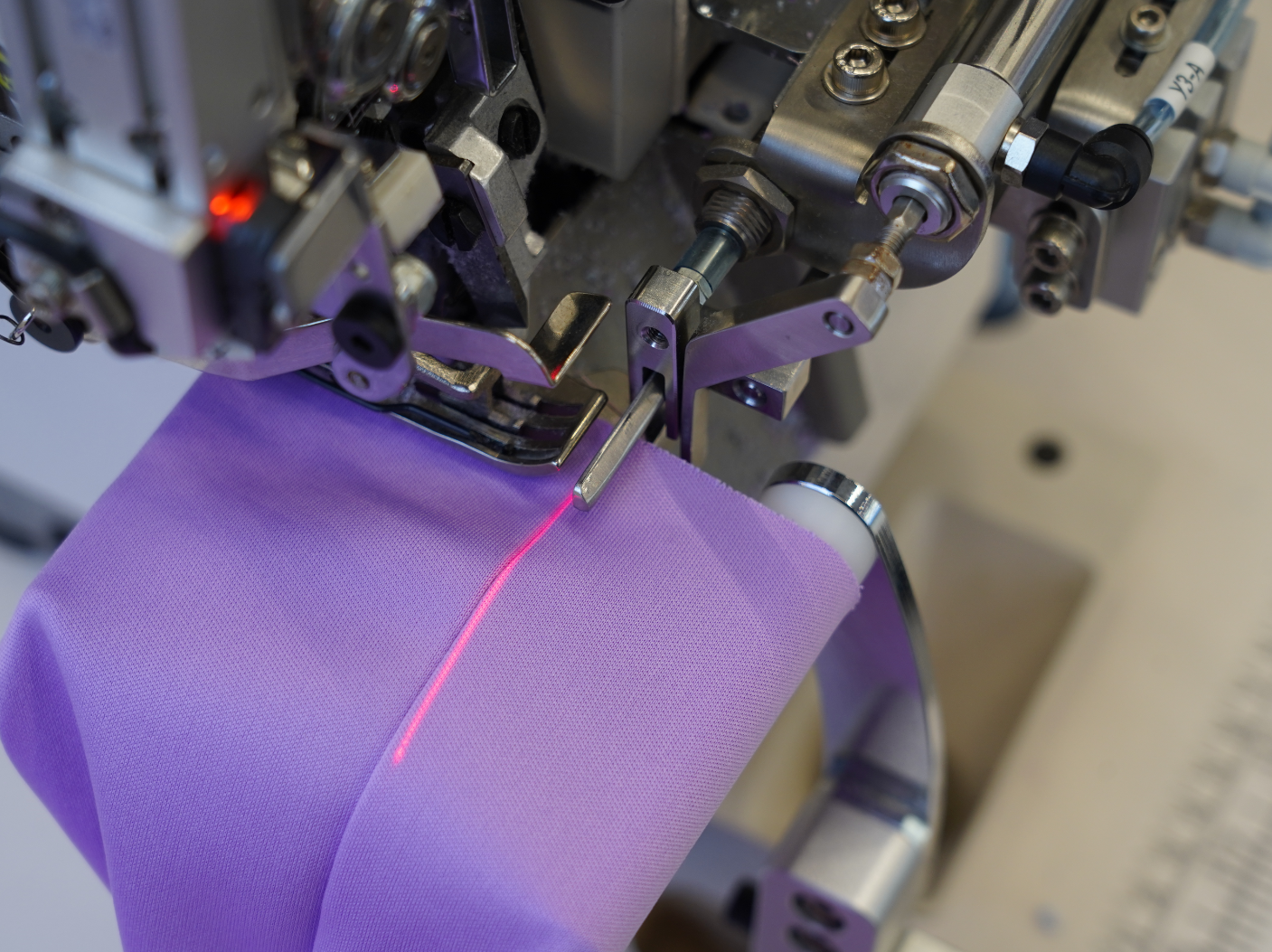

Seam alignment function: laser positioning with seam pressing device for consistent matchingSeam alignment function: laser positioning with seam pressing device for consistent matching
-

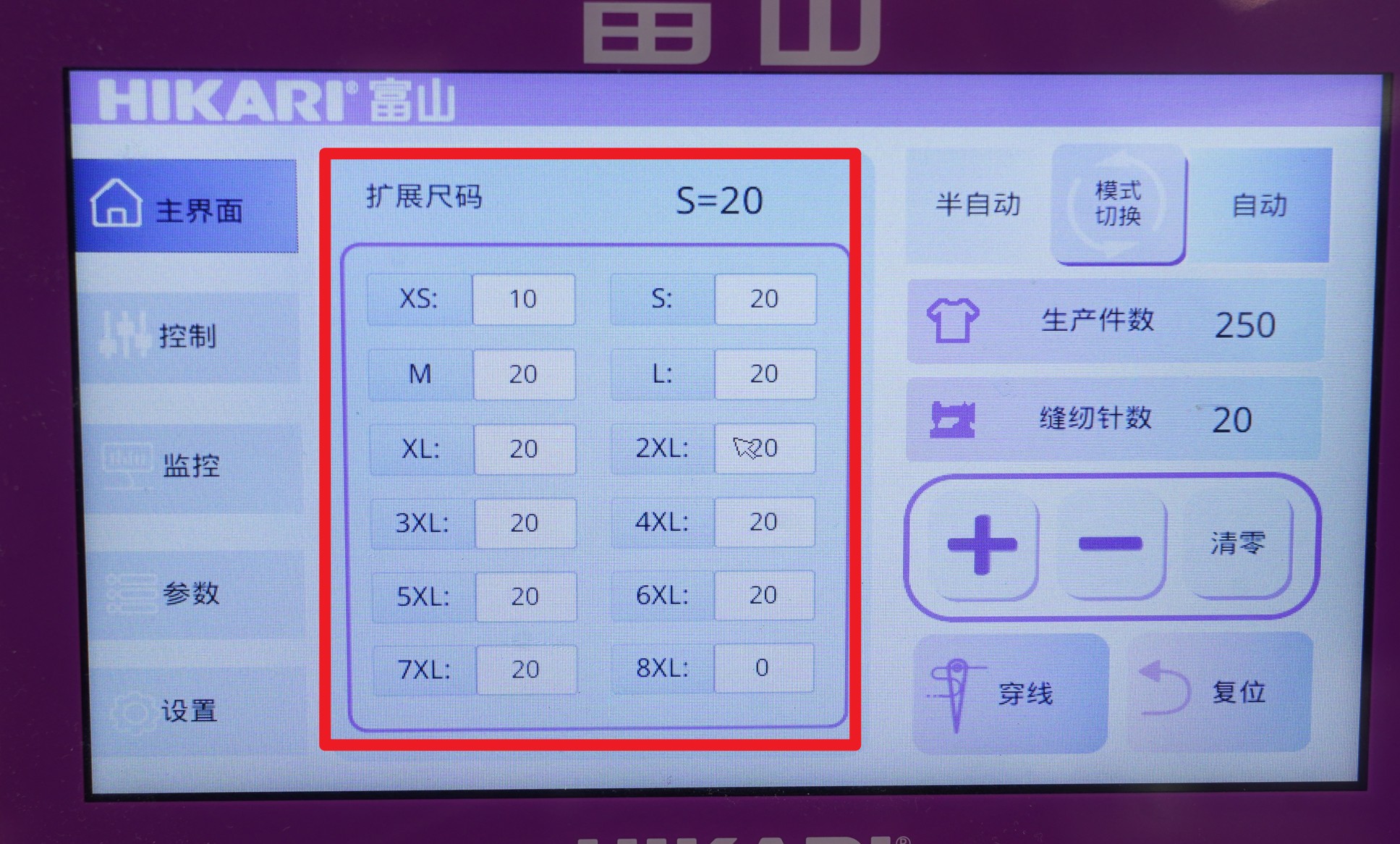

One-key size change for fast and convenient switching
-

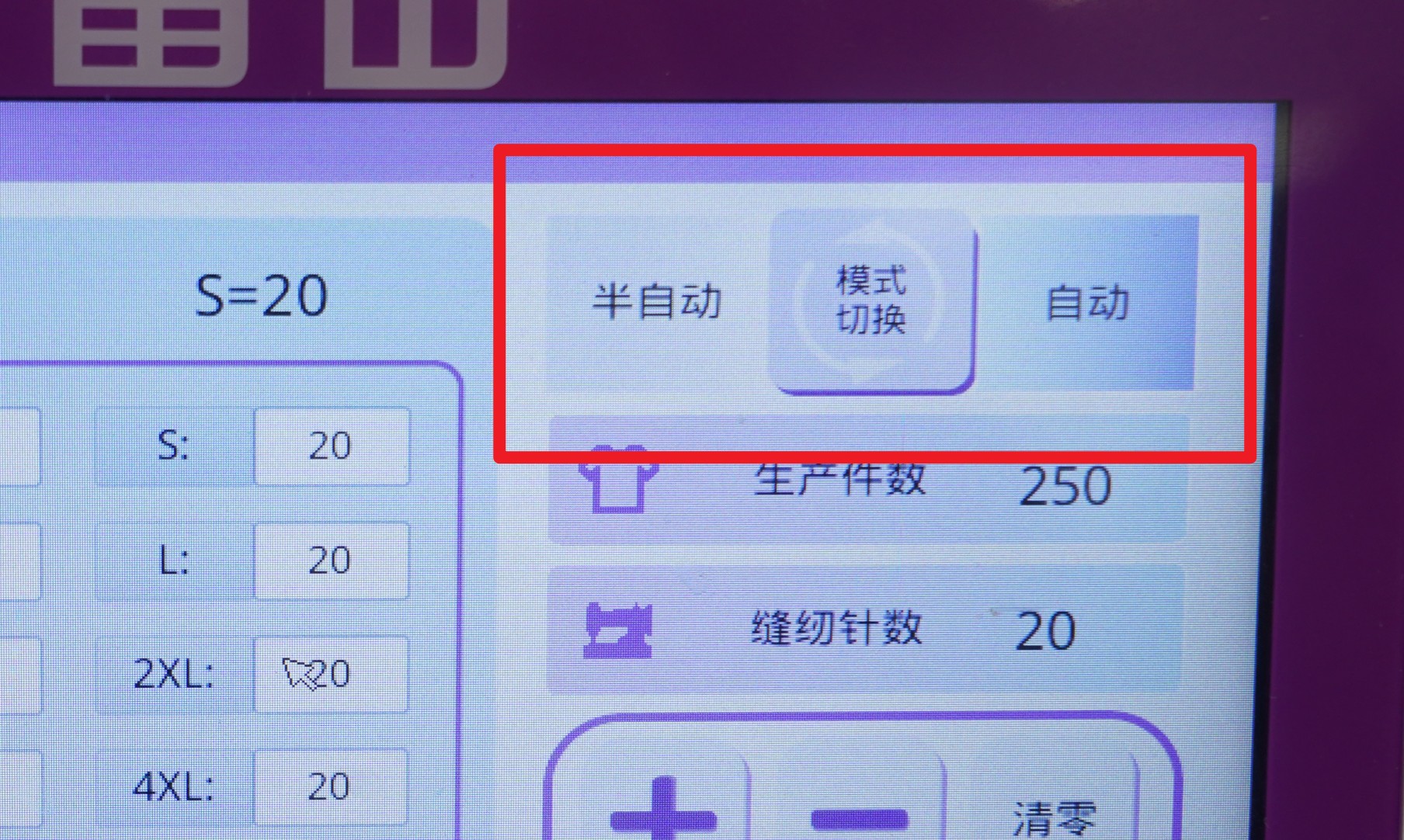

Free switching between automatic and manual modes
-
Optional Hikari IoT Function for Equipment Network Connectivity, Helping Enterprises Build Digital Factories
Specifications
| Product Model | Needle | No. Of needles | No. Of threads | Needle gauge | Stitch width | Stitch length | Differential ratio | Height of presser foot | Type Marking Specification | Type Marking Specification | Sewing speed | Packing size |
| HSAT-K6A | DCx27 #9-#12 | 2 | 4 | 2 | 2x4 | 0.7-3.8 | 0.8-18 | 7 | 3-9cm | 25-50cm（周长） | 4500 | 1380x780x1290mm |
