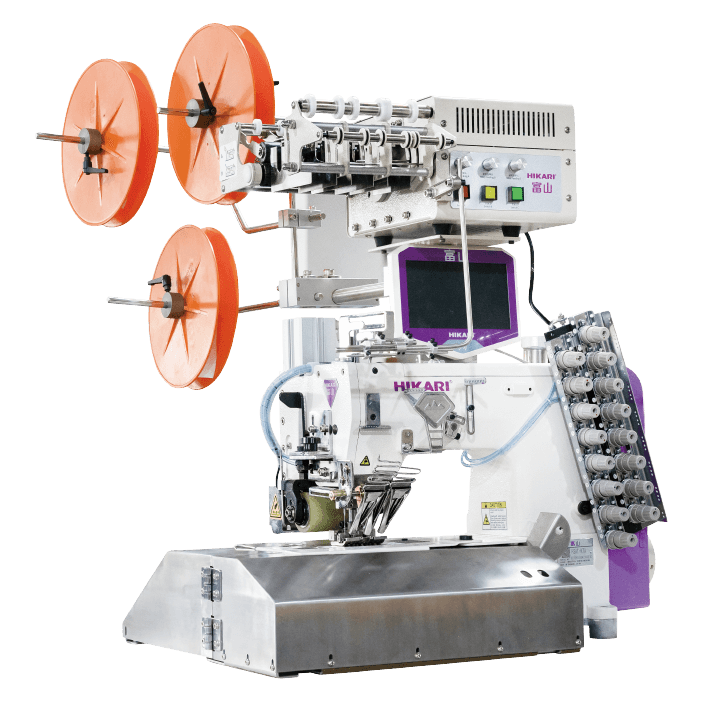

AUTO ADIDAS STRIPES FEEDING MACHINE
HSAT-K7A
Key Buying Points
-
01
Automatic cutting avoids wasting belt.Through detection to identify the position automatically, the cutting position is accurate, the roller is saved. and waste is avoided.
-
02
Automatic collection.Reduce operator handing time, improve efficiency.
功能
01

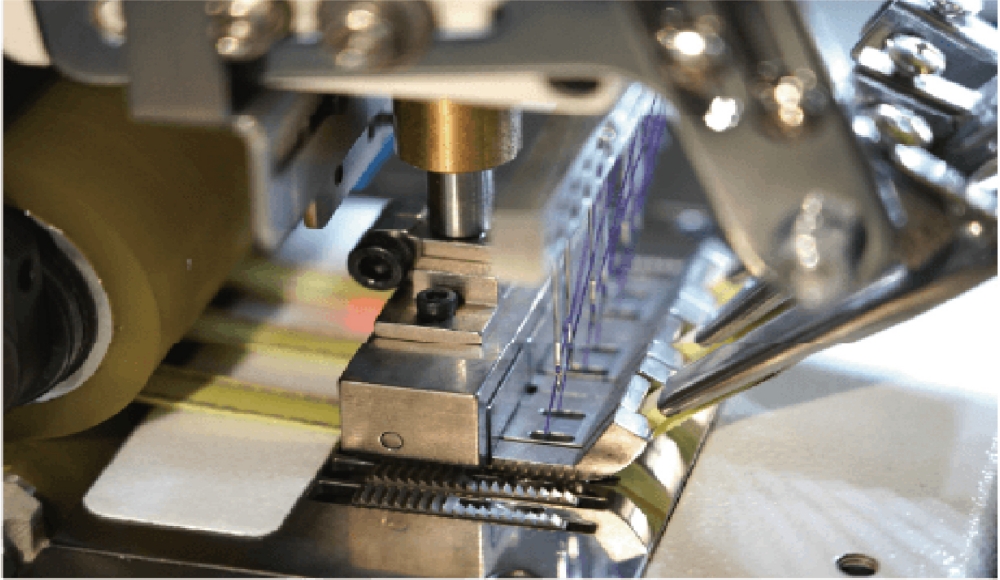

The flexible special presser foot can sew fabrics of different thicknesses smoothly and beautifully.
02
Auto stripe shaping.Binder auto make unified tape with high quality.
03
Auto feeding, save time.
04

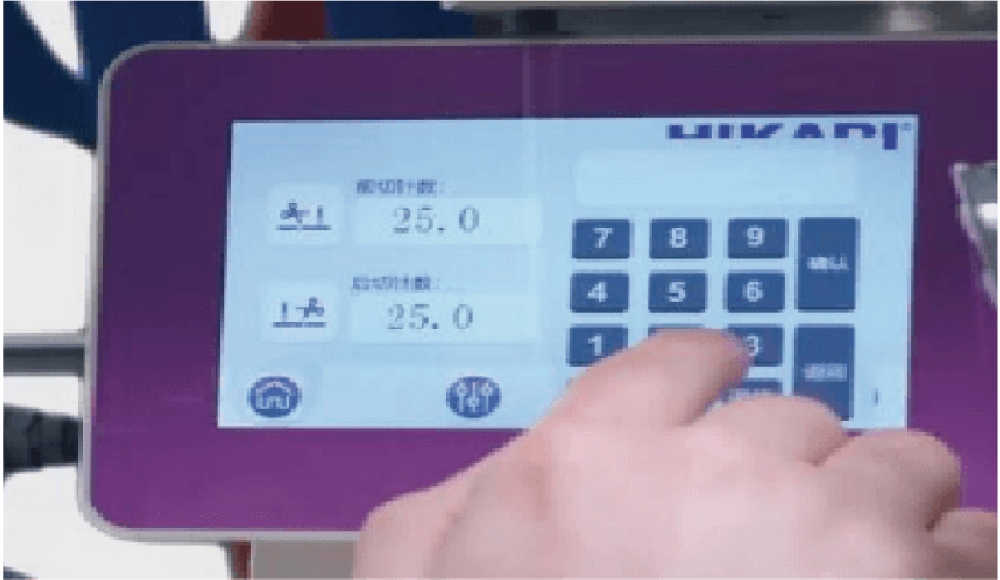

Auto counting function
05
Auto air blowing function, Auto sensor and air blowing function. Assures the smooth stitching.
06
Optional different sizes of needle gauge
07
Optional IoT functionality from Hikari, implement device net work connection function. Help customer build digital factories.
Specifications
| Product Model | Needle | No. Of needles | No. Of threads | Needle gauge | Stitch length | Height of presser foot | Auto lifter | Width of sewing strap | Sewing speed | Packing size |
| HSAT-K7A | UO×113 GS | 6 | 12 | 7-11-7-11-7 7-12-7-12-7 9-9-9-9-9 11-10-11-10-11 13-11-13-11-13 14.5-11-14,5-11-14.5 15-12-15-12-15 17-12-17-12-17 |
1.6-4mm | 5.5-13 |  |
48mm 64mm 72mm |
3500 | 1380x1030x1420mm |
