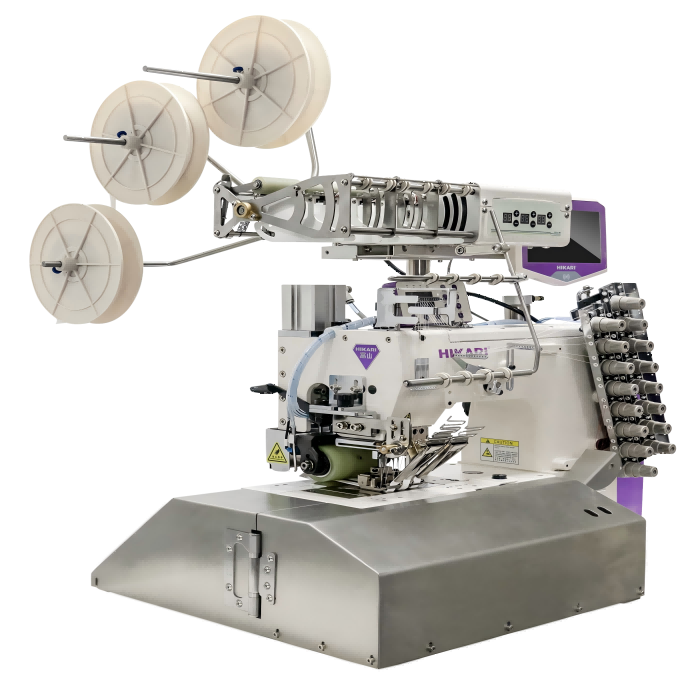

HIKARI special tape binding machine for Adidas
HSAT-K7C
Key Use Value
Other Usage Values
-

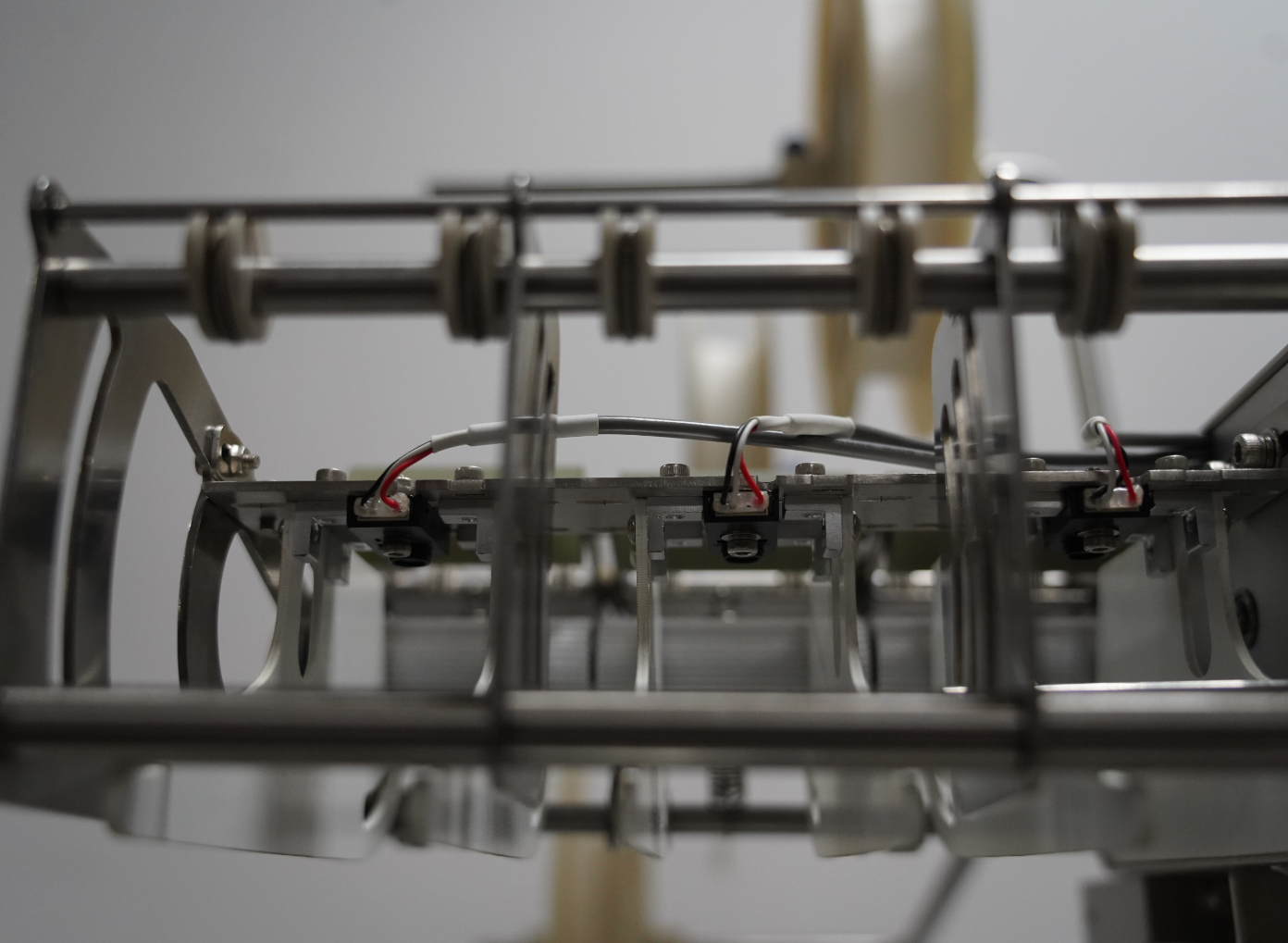

Non-contact tape feeding keeps tape relaxed, avoids tension and pulling, ensuring flat sewing
-

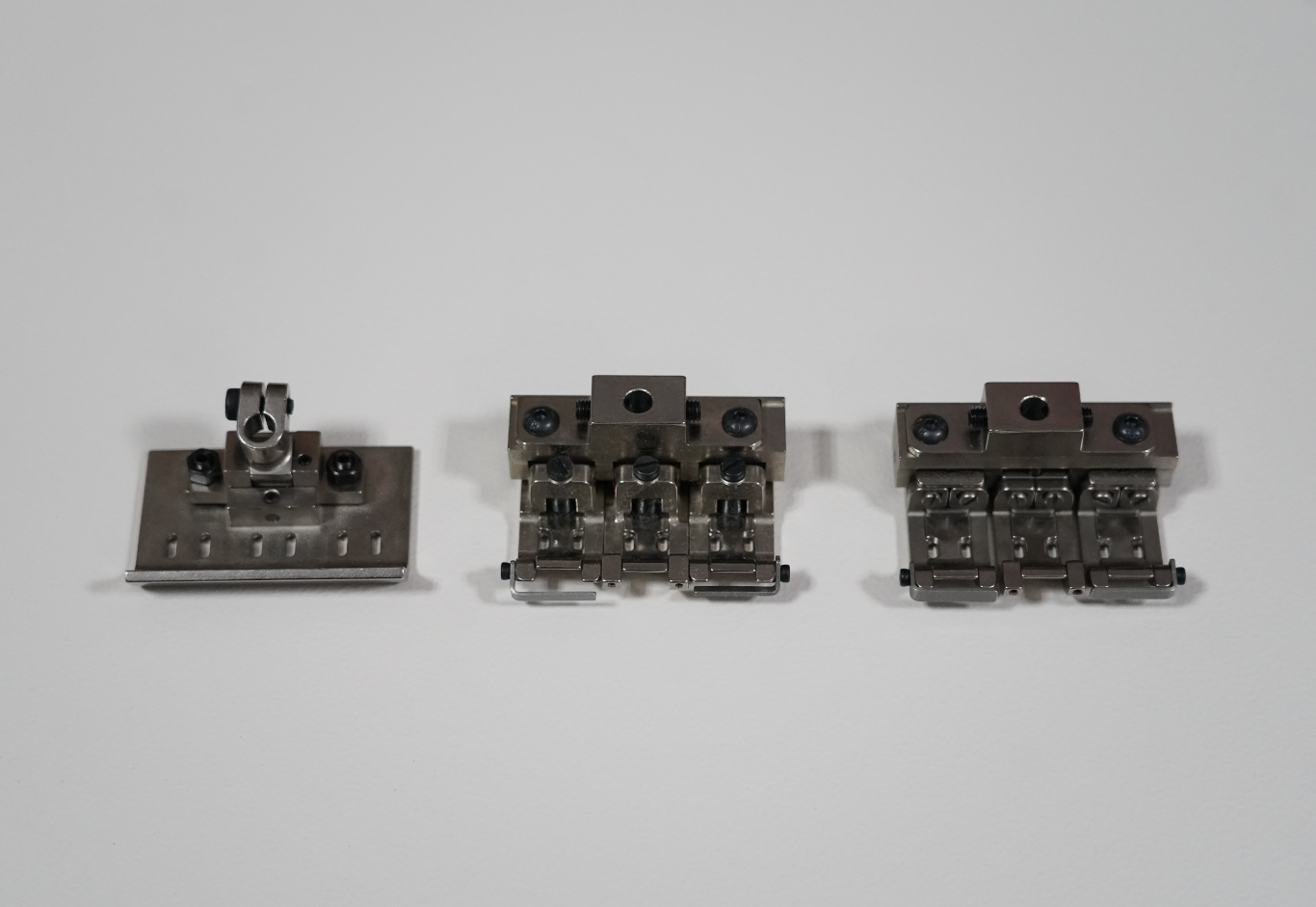

Special flexible presser foot; no secondary processing needed; automatically adapts to different thicknesses and processes for flat, beautiful stitches
-

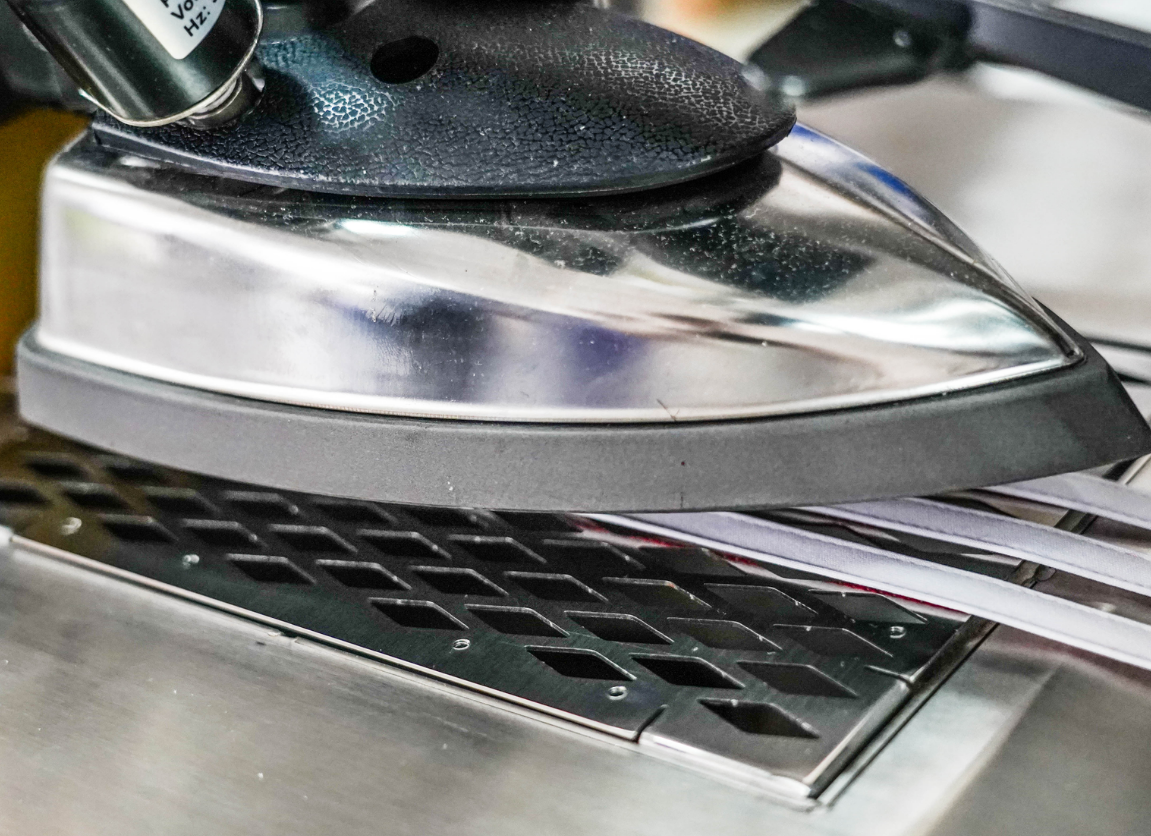

Built-in ironing device; sewing and ironing performed simultaneously for higher flatness
-

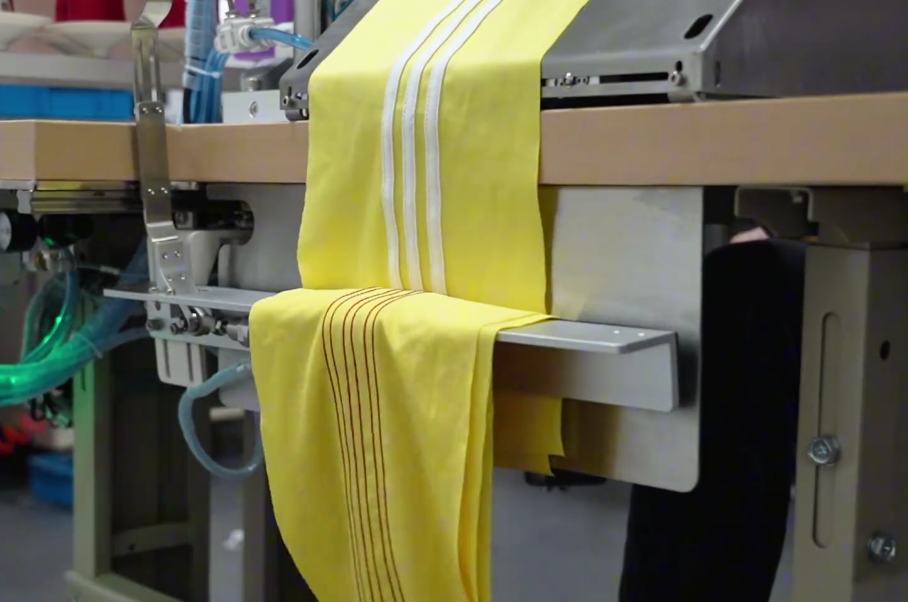

Automatic material collector with long/short modes available to suit different fabric sizes
-

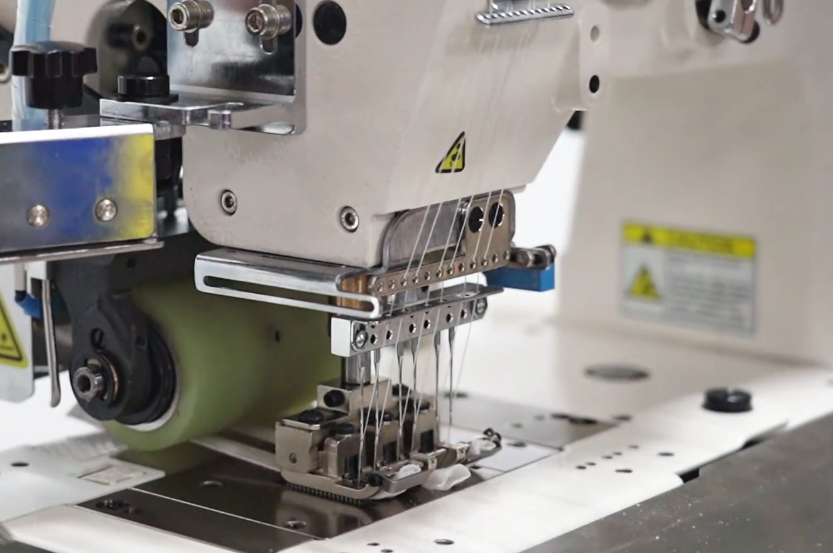

Multiple needle positions available, meeting various Adidas process requirements
-
Optional Hikari IoT Function
Specifications
| Product Model | Needle | No. Of needles | No. Of threads | Needle gauge | Stitch length | Height of presser foot | Auto lifter | Width of sewing strap | Sewing speed | Packing size |
| HSAT-K7A | UO×113 GS | 6 | 12 | 7-11-7-11-7 7-12-7-12-7 9-9-9-9-9 11-10-11-10-11 13-11-13-11-13 14.5-11-14,5-11-14.5 15-12-15-12-15 17-12-17-12-17 |
1.6-4mm | 5.5-13 |  |
48mm 64mm 72mm |
3500 | 1380x1030x1420mm |
