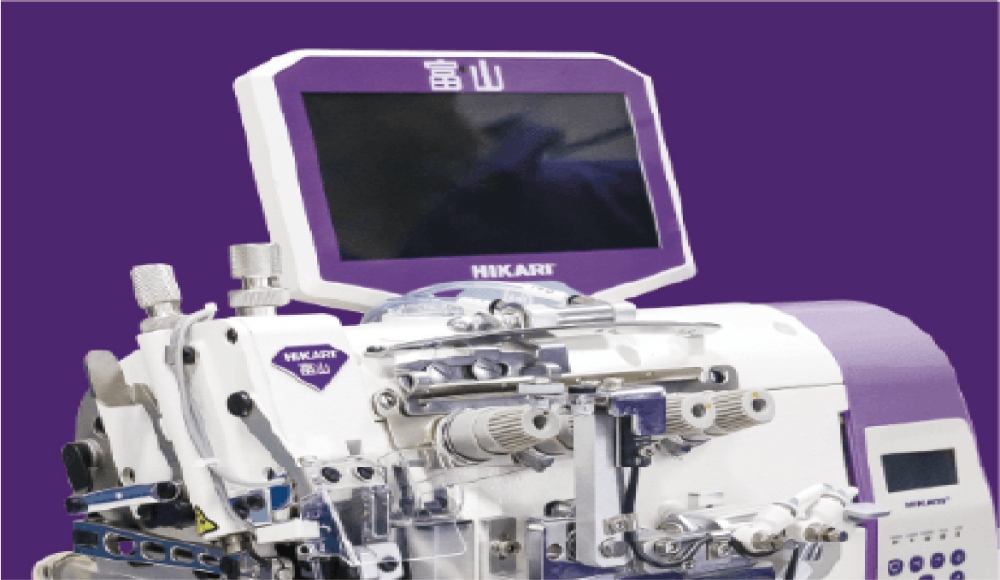

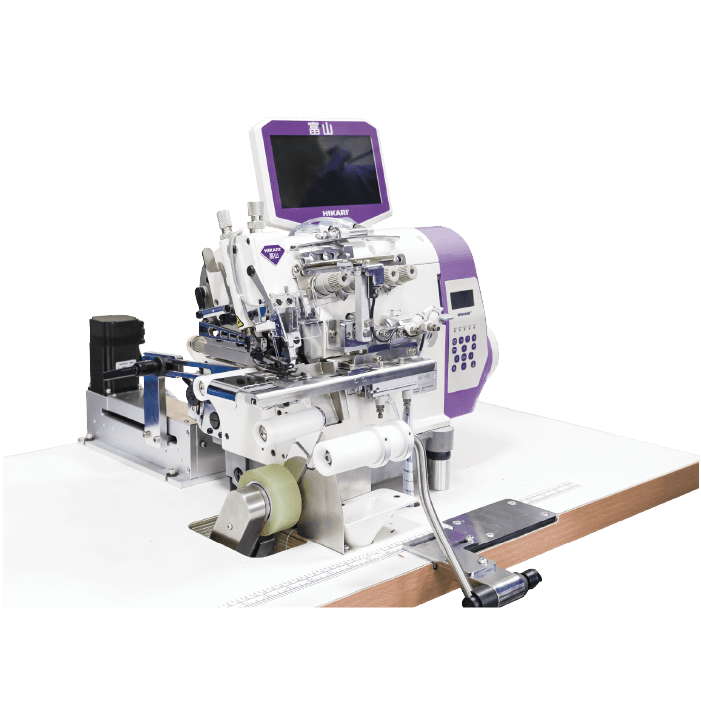

HSAT-K9D
主要买点
-
01
Easy for novices to operate.Reduce operator dependence on sewing skill.
-
02
Wide size option from 28-140 cm(Perimeter),Suitable for elder children and adults collar sewing with beautiful stitches.
-
03

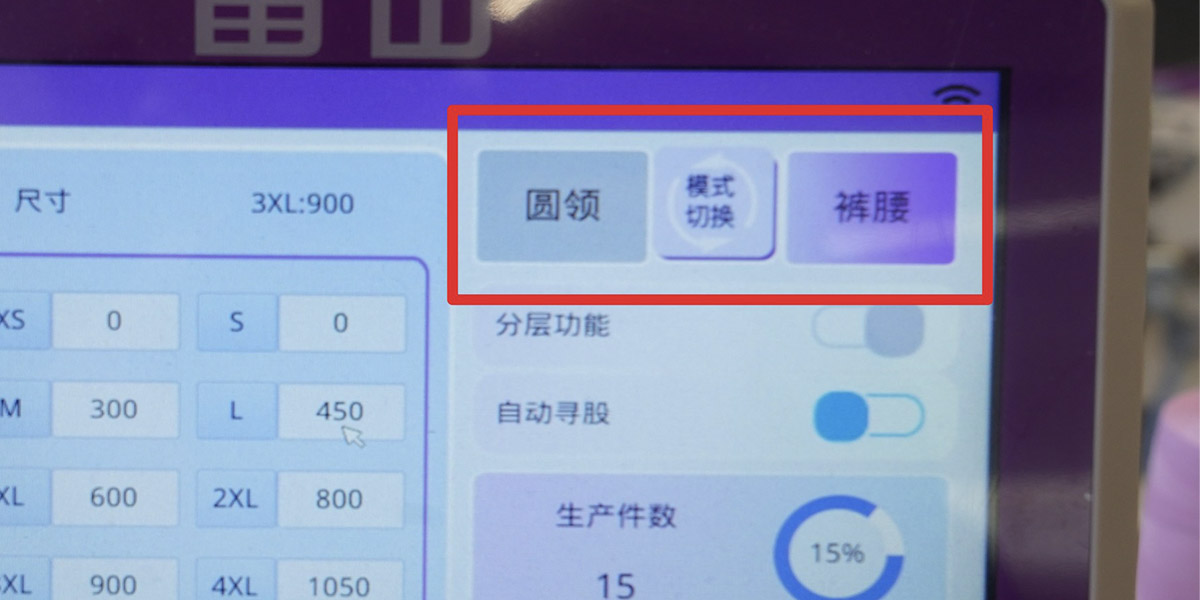

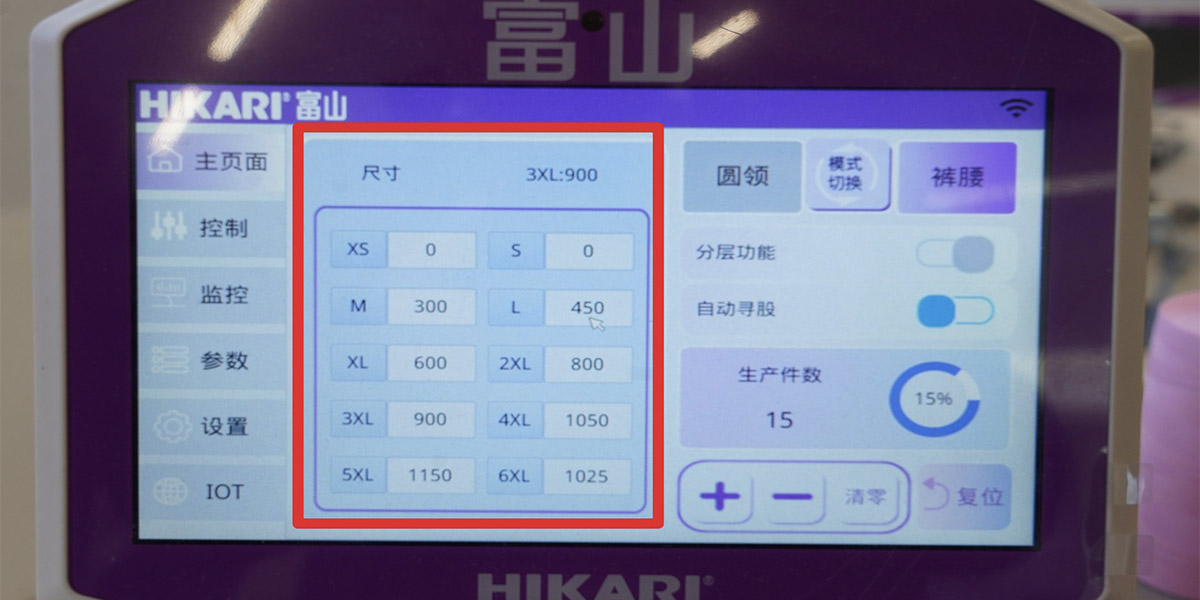

One-click change style, fast and efficient.
-
04

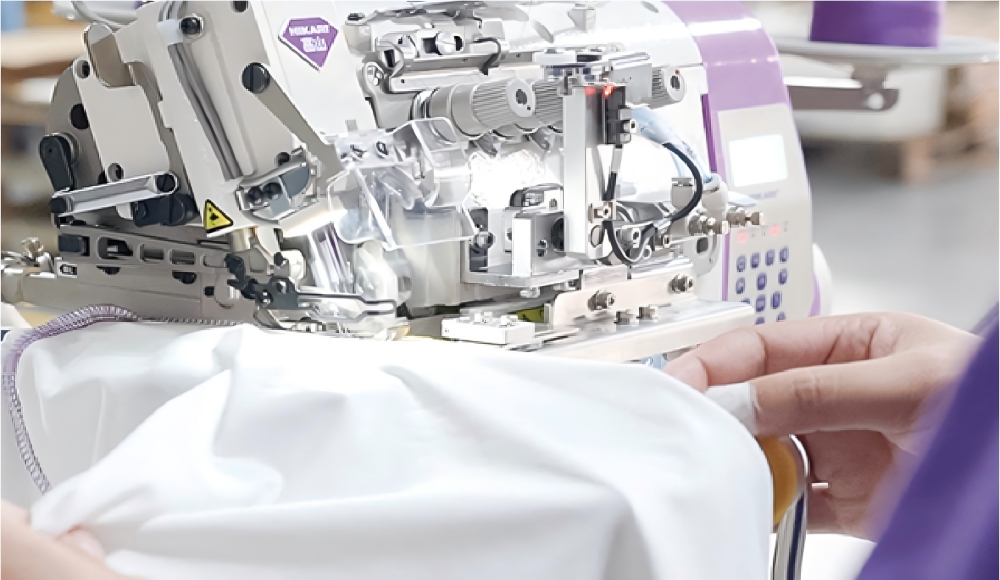

The sewing quality is more stable and reliable, the width of the collar strip is consistent,the uniformity of the collar in circumference is more beautiful.
-
05
The machine can easily change from T-shirt neck joining to the waist joining.
Functions

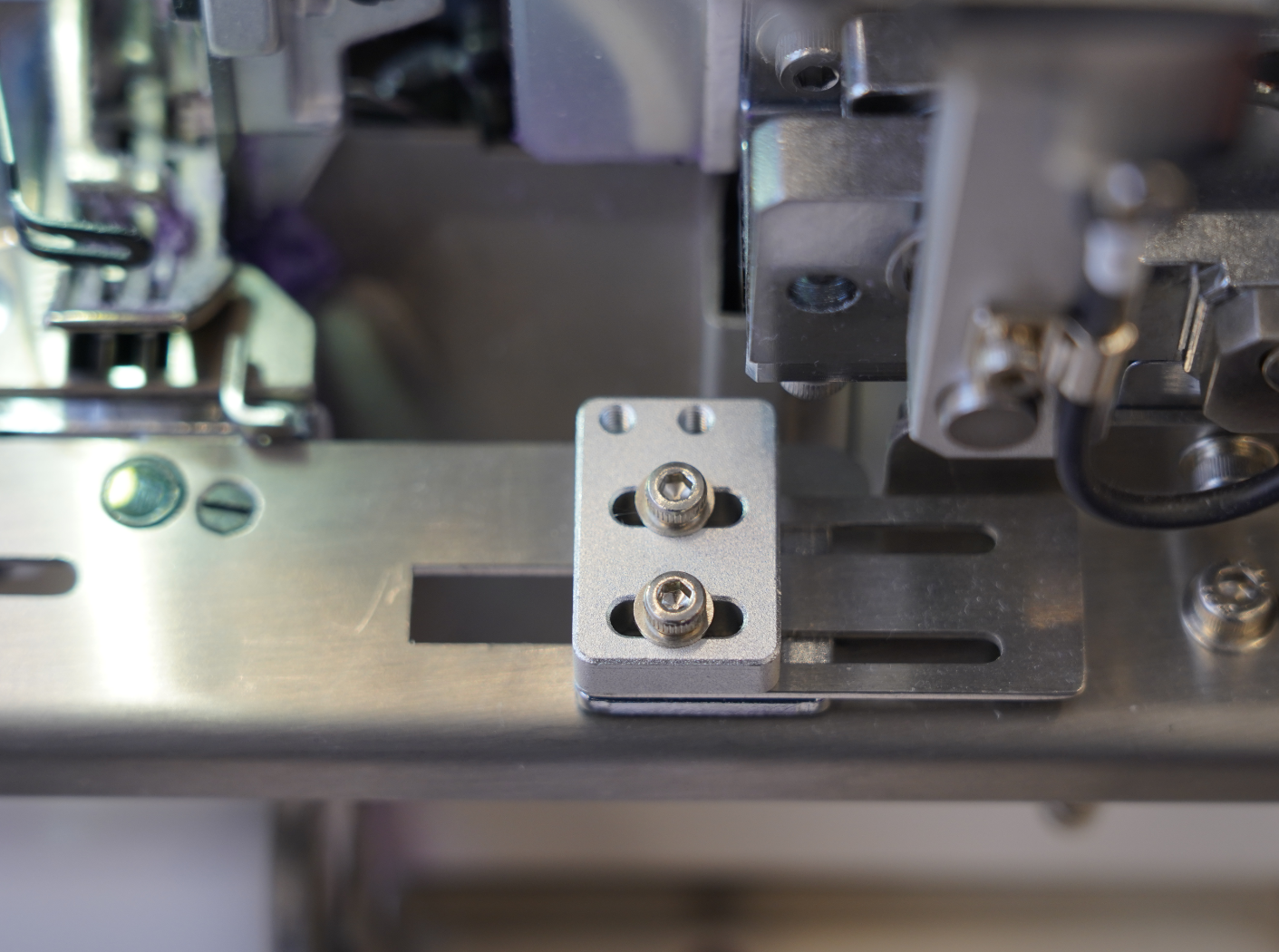

With auto collar strip positioning, layer positioning (Patent No. ZL20192155580,5- patent sort: utility type)
Stitching accuracy of the collar can reach ±2mm
Automatic mode and manual mode can be switched at will.
Configure HIKARI IoT functions, implement device net work connection function. Help customer build digital factories.
Specifications
| Product Model | Sewing Machine Needle | Stitch Count | Thread Count | Needle Pitch | Stitch width | Stitch length | Differential ratio | Width of collar sewing | Collar sewing range | Width of Tightness | Joint waistband of trousers | Sewing speed | Presser Foot Lift Height | Packing size |
| HSAT-K9D | DCx27 #9-#11 |
2 | 4 | 2 | 2x4(6mm） | 0.7-3.8 | 0.8-1.8 | 1-4cm (Hemming） |
28-140cm | 2-7cm | 35-140cm | 4500 | 1-7mm | 1380x780x1290mm |
