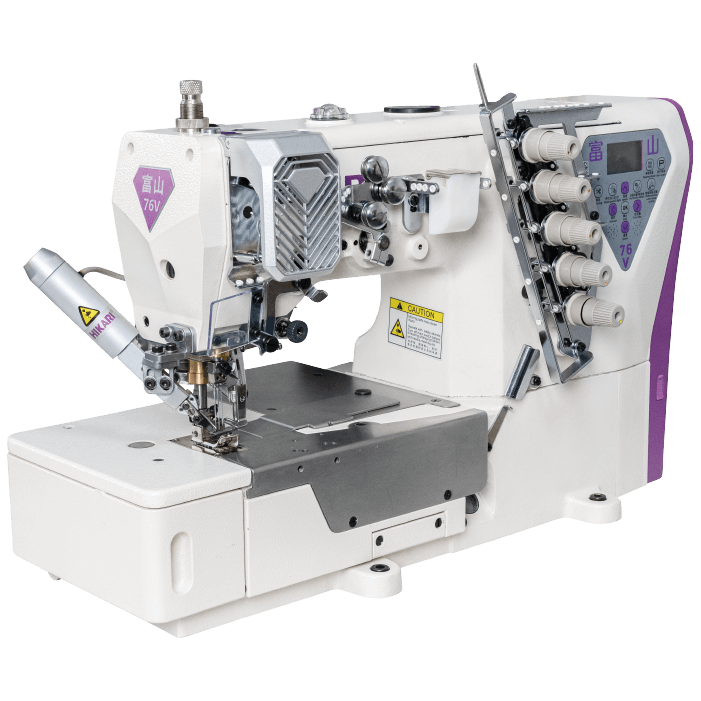

New Generation Intelligent Flat Bed Coverstitch Machine
HW76V Series
Beautiful Stitches， Equipped with Intelligent Thread Tension Technology
Dual-Purpose Machine Top-Quality
Dual-Purpose Machine Top-Quality
Equipped with Intelligent Thread Tension Technology
Breaking Through Traditional Technical Limitations
Improved Thin Fabric Puckering, Full and Beautiful Stitches
Other Usage Values
-

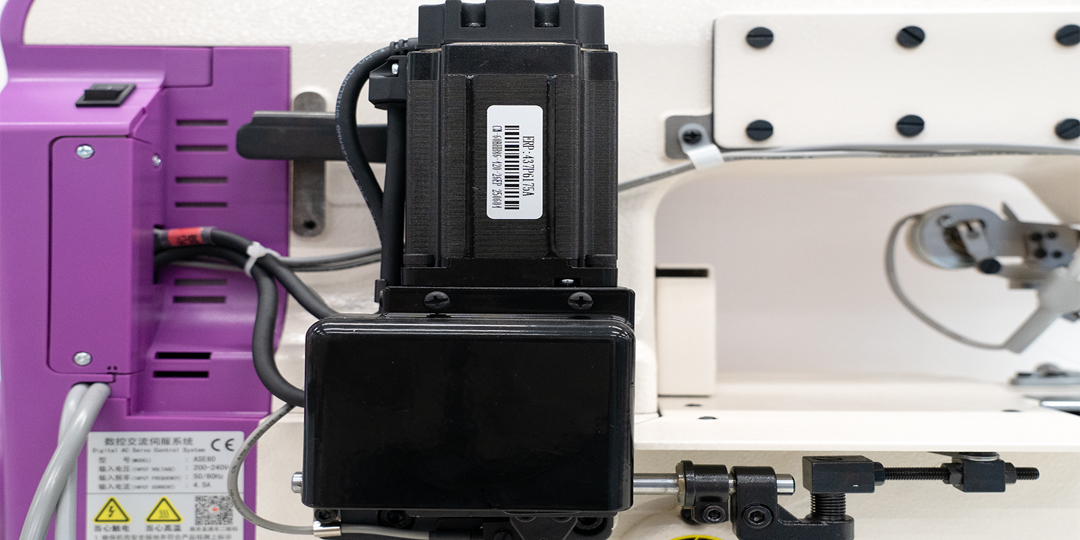

Computer-Controlled Presser Foot Lifting and Thread Trimming, Faster and Quieter
-

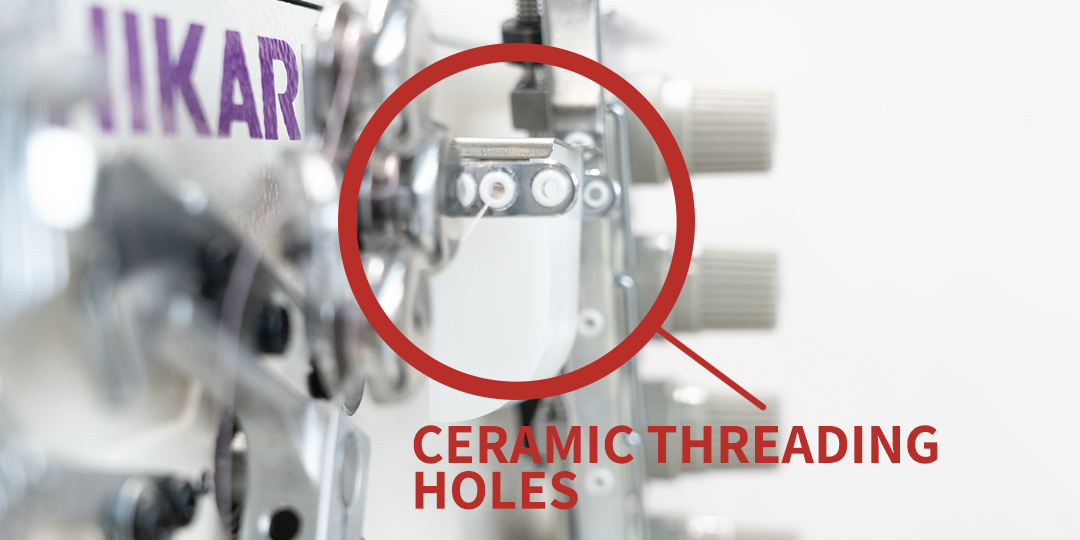

Ceramic Eyelets for Thread Guides, Beautiful Stitches
-

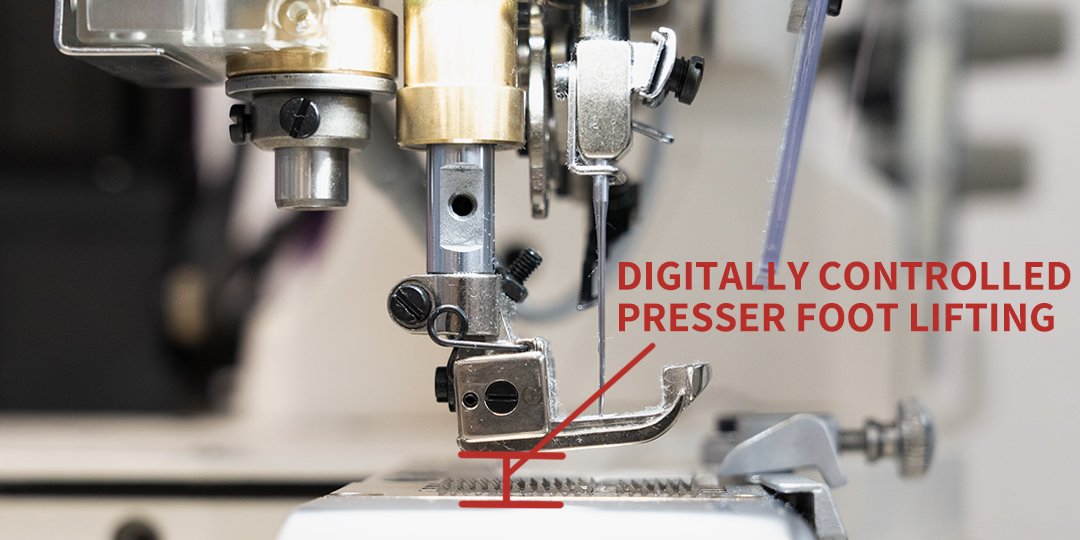

Computerized Digital Control of Presser Foot Lifting, Adjustable Height, Up to 7mm Maximum, More Convenient Fabric Feeding
-
Upper Thread Trimming
-
Optional Hikari IoT Function for Equipment Network Connectivity, Helping Enterprises Build Digital Factories
Specifications
| Flat bed | Needle | No. Of needles | No. Of threads | Needle gauge | Stitch length | Height of presser foot | Differential ratio | Sewing speed | Packing size |
| HW76V-1·2-1x356/UTM | UYX128GAS | 3 | 5 | 5.6 | 4.4 | 5.5 | 0.5-1.3 | 5000 | 700x410x655mm |
| HW76V-1·2-1x356/UAM | UYX128GAS | 3 | 4 | 5.6 | 4.4 | 7 | 0.5-1.3 | 5000 | 700x410x655mm |
| HW76V-1·2-1x356/UTM/A | UYX128GAS | 3 | 5 | 5.6 | 4.4 | 5.5 | 0.5-1.3 | 5000 | 700x410x655mm |
| HW76/-1·2-2x356/UAM/T | UYX128GAS | 3 | 4 | 5.6 | 4.4 | 7 | 0.5-1.3 | 5000 | 700x410x655mm |
