New generation of intelligent
cylinder bed interlock sewing machine
cylinder bed interlock sewing machine
HW78V Series
Equipped with Intelligent Thread Tension Technology
Breaking Through Traditional Technical Limitations
Improved Thin Fabric Puckering, Full and Beautiful Stitches
Other Usage Values
-
Computer-Controlled Presser Foot Lifting and Thread Trimming, Faster and Quieter
-
Computerized Digital Control of Presser Foot Lifting, Adjustable Height, Up to 7mm Maximum, More Convenient Fabric Feeding
-

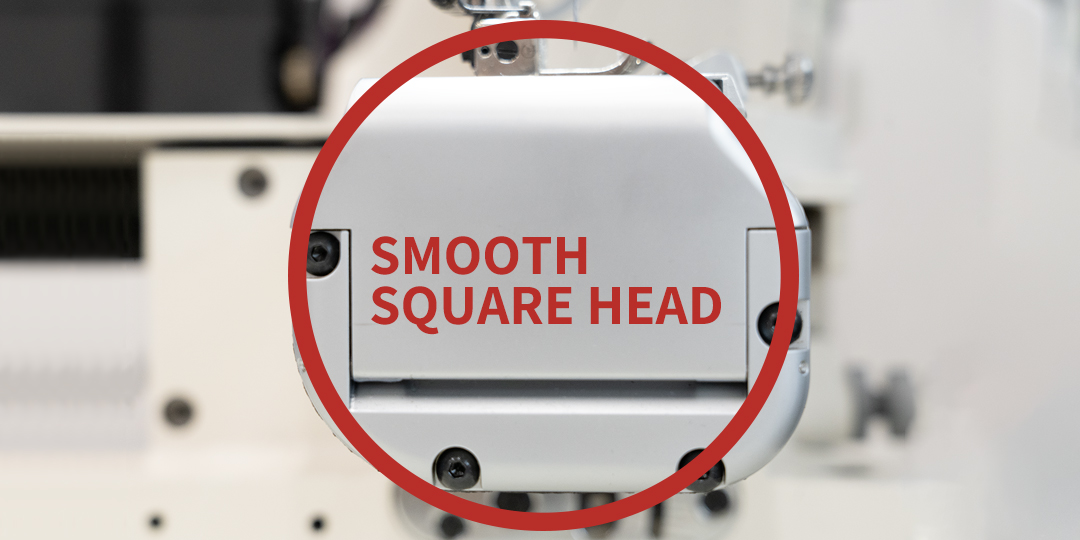

Smooth Square Head, Smaller Circumference (280mm), Easier for Your Sewing, Light and Efficient
-
Ceramic Eyelets for Thread Guides, Beautiful Stitches
-
Equipped with LED Light
-

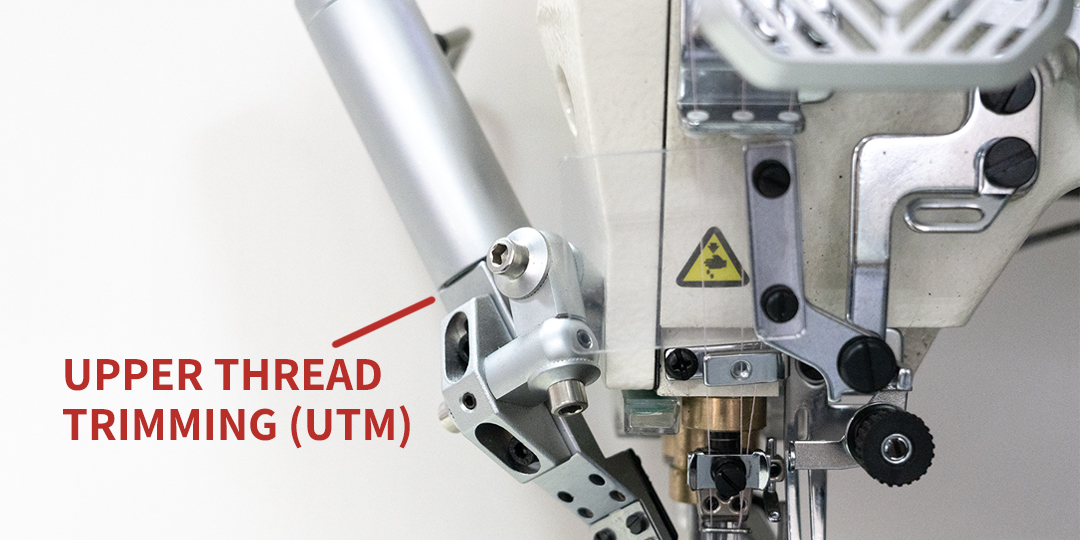

Upper Thread Trimming (UTM)
Specifications
| Product Specifications | Needle | No. Of needles | No. Of threads | Needle gauge | Stitch length | Height of presser foot | Differential ratio | Sewing speed | Packing size |
| HW78V-01x356/UAM | UYX128GAS | 3 | 4 | 5.6 | 4.5 | 7 | 06:1:1.8 | 5000 | 705x415x655mm |
| HW78V-01x356/UAM/LS | UYX128GAS | 3 | 4 | 5.6 | 4.5 | 7 | 06:1:1.8 | 5000 | 705x415x655mm |
| HW78V-01x356/UTM | UYX128GAS | 3 | 5 | 5.6 | 4.5 | 5 | 06:1:1.8 | 5000 | 705x415x655mm |
| HW78V-01x356/UTM/PL | UYX128GAS | 3 | 5 | 5.6 | 4.5 | 5 | 06:1:1.8 | 5000 | 705x415x655mm |
| HW78V-01x356/UTM/LS | UYX128GAS | 3 | 5 | 5.6 | 4.5 | 5 | 06:1:1.8 | 5000 | 705x415x655mm |
| HW78V-01x356/UTM/LS/CS | UYX128GAS | 3 | 5 | 5.6 | 4.5 | 5 | 06:1:1.8 | 5000 | 705x415x655mm |
