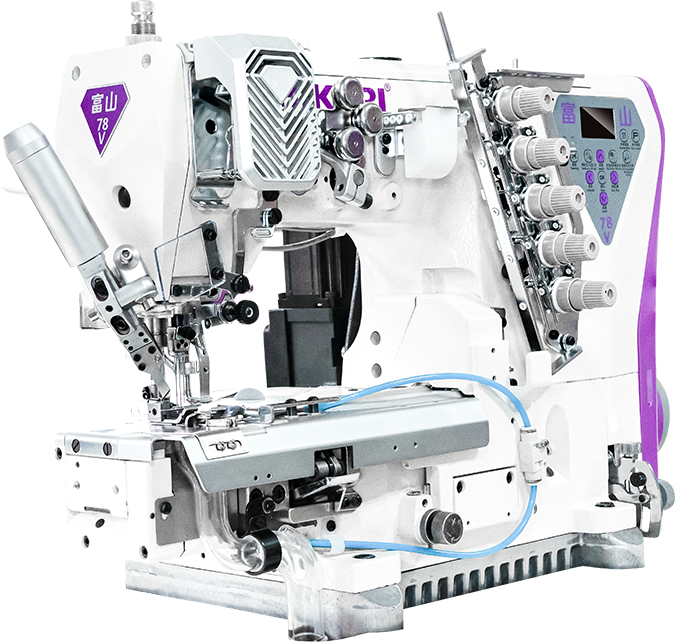

The New Generation Of Intelligent TubularLeft-cut Interlock Sewing Machine
HW78V-35B
LV Series
Full and Beautiful Stitches, Equipped with Intelligent Thread Tension Technology
Equipped with Intelligent Thread Tension Technology
Breaking Through Traditional Technical Limitations
Improved Thin Fabric Puckering, Full and Beautiful Stitches
Other Usage Values
-
Dark Layer Fabric Edge Visualization Technology, Visible Upper and Lower Hem Folding Amount, Convenient Operation, Guaranteed Sewing Quality
-
Fabric Edge Flattening Technology (Optional), Preventing Fabric Curling by Controlling Air Channel Intensity, Efficient Production, Quality Assurance
-

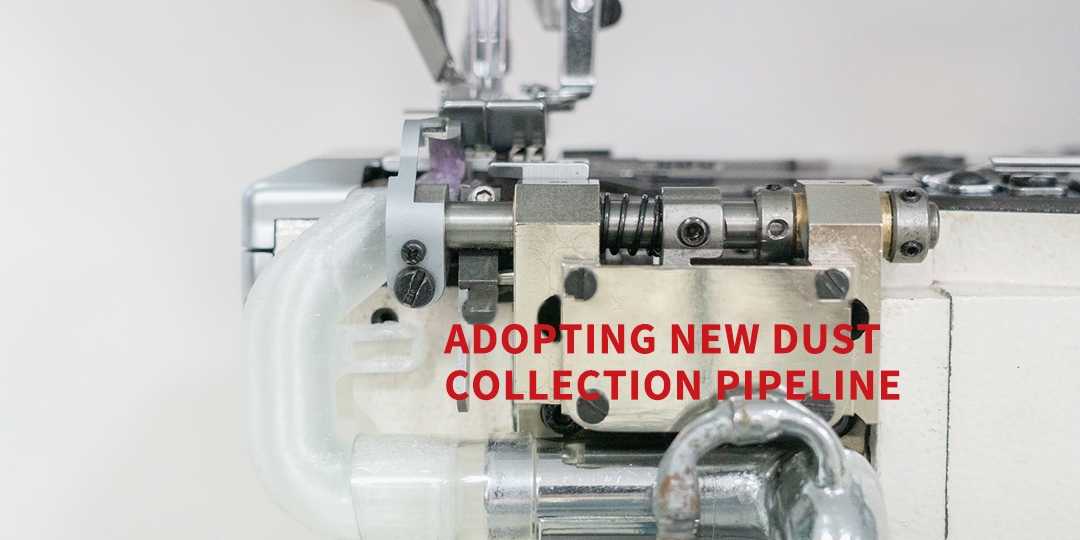

Adopting New Dust Collection Pipeline, Concentrated Airflow
-
Right Cutter Structure Diagram
-
Computer-Controlled Presser Foot Lifting and Thread Trimming, Faster and Quieter
-
Computerized Digital Control of Presser Foot Lifting, Adjustable Height, Up to 7mm Maximum, More Convenient Fabric Feeding
Specifications
| Flat bed | Needle | No. Of needles | No. Of threads | Needle gauge | Stitch length | Height of presser foot | Differential ratio | Sewing speed | Packing size |
| HW78V-35Bx356/UTM | UY128GAS#10S | 3 | 5 | 5.6 | 4.5 | 5.5 | 0.6:1:1.8 | 5000 | 700x410x655mm |
| HW78V-35Bx356/UAM | UY128GAS#10S | 3 | 4 | 5.6 | 4.5 | 7 | 0.6:1:1.8 | 5000 | 700x410x655mm |
| HW78V-35Bx356/UAM2 | UY128GAS#10S | 3 | 4A | 5.6 | 4.5 | 7 | 0.6:1:1.8 | 5000 | 700x410x655mm |
