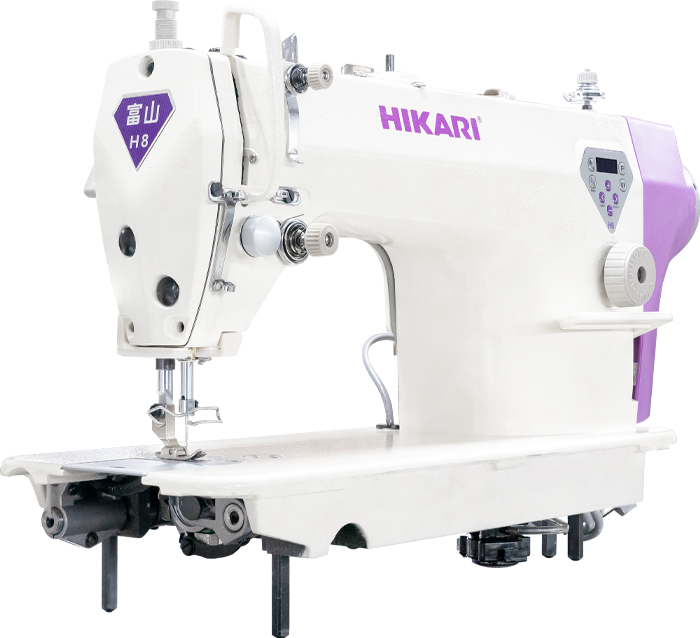

H8V Series
Pain points VS Buy points
-
01
Basically no adjustment required for the changes in thin and thick fabrics.
-
02
much reduced the puckerings when sewing thin fabric.
-
03
No thread breakage. Reduce the probability of thread breakage greatly.
More values
Lever type cutter separation mechanism, convenient operation, stable cutting cloth
The cutter and needle are synchronously and asynchronously adjustable
The sound of reverse stitching is light.With the computer controlling reverse stitching, the sound of reverse stitching is soft.

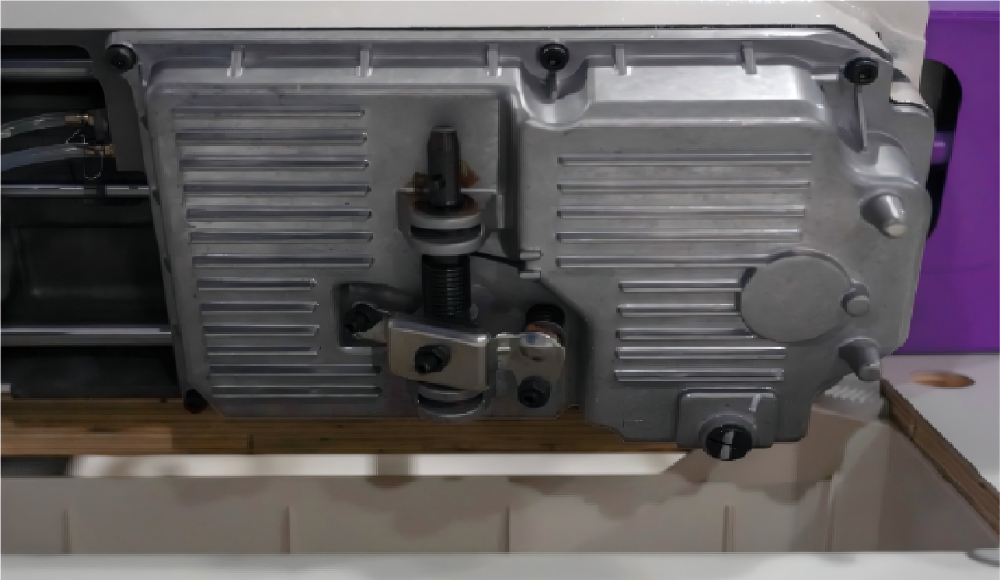

Sealed oil tank to effectively prevent oil stains.
Accurate stitch length.Digital stitch length control, 0.1mm adjustment accuracy to meet the requirement of high quality.
Various sewing models. Normal stitching, fixed length stitching, condense stitching, multi-section stitching, multi-section circular stitching, pattern stitching
Computer controlled Lifting foot, be more responsive and soft sound.
HIKARI IOT function is optional, implement device net work connection function, Help customer build digital factories.
Product Specifications
| Model | Lubrication Mode | Needle | Stitch Length | Presser Foot Lift | Thread Trimming | Light-Weight Materials | Medium-Weight Materials | Heavy-Weight Materials | Sewing Speed | Packaging Dimensions |
| H8VF-7C | Automatic Lubrication | DBx1 | 0-5 | 0-13 |  |
|
5000 | 665x260x570mm | ||
| H8V-7C | Automatic Lubrication | DBx1 | 0-5 | 0-13 | |
|
5000 | 665x260x570mm | ||
| H8VH-7C | Automatic Lubrication | DPx5 | 0-7 | 0-13 | |
|
4500 | 665x260x570mm |
