The new generation of intelligent
double needle machine
double needle machine

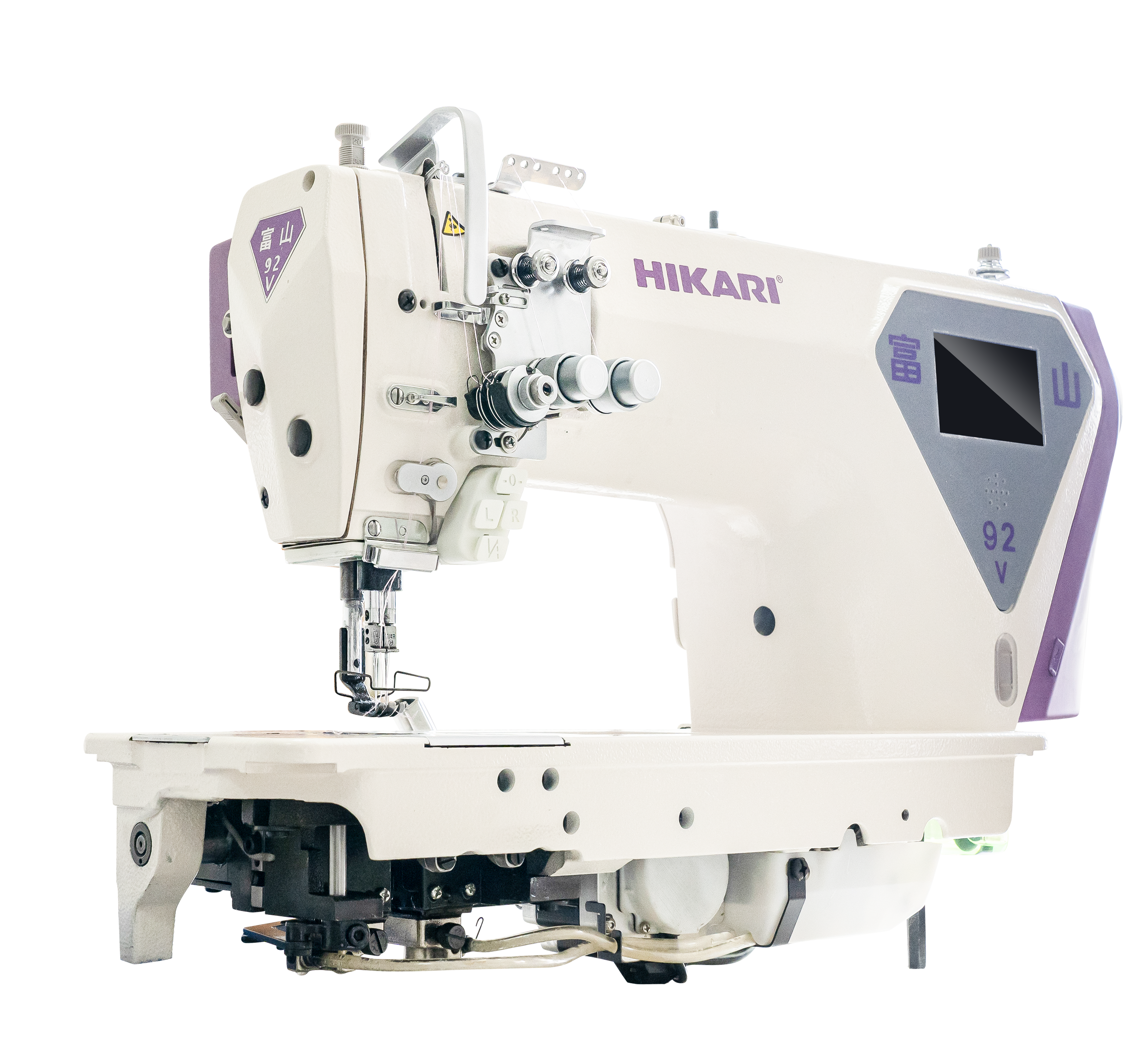

HT92V2 Series

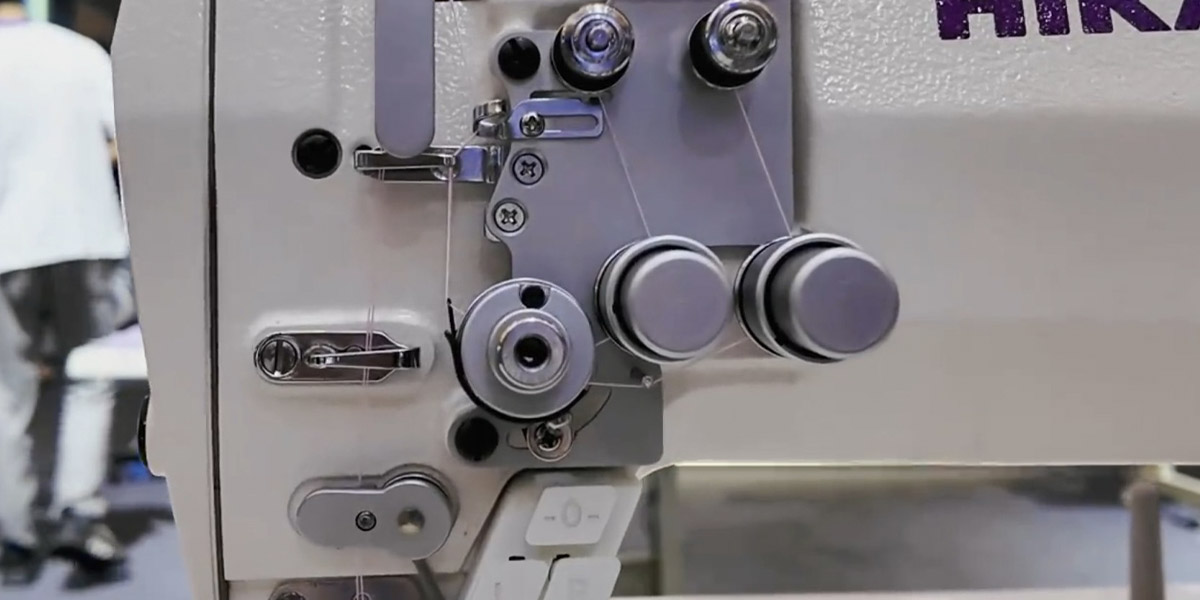

Equipped with intelligent thread tension control
technology, intelligent thread clamping device
digital drive, beautiful stitches
technology, intelligent thread clamping device
digital drive, beautiful stitches
Key Value
Other Benefits
-

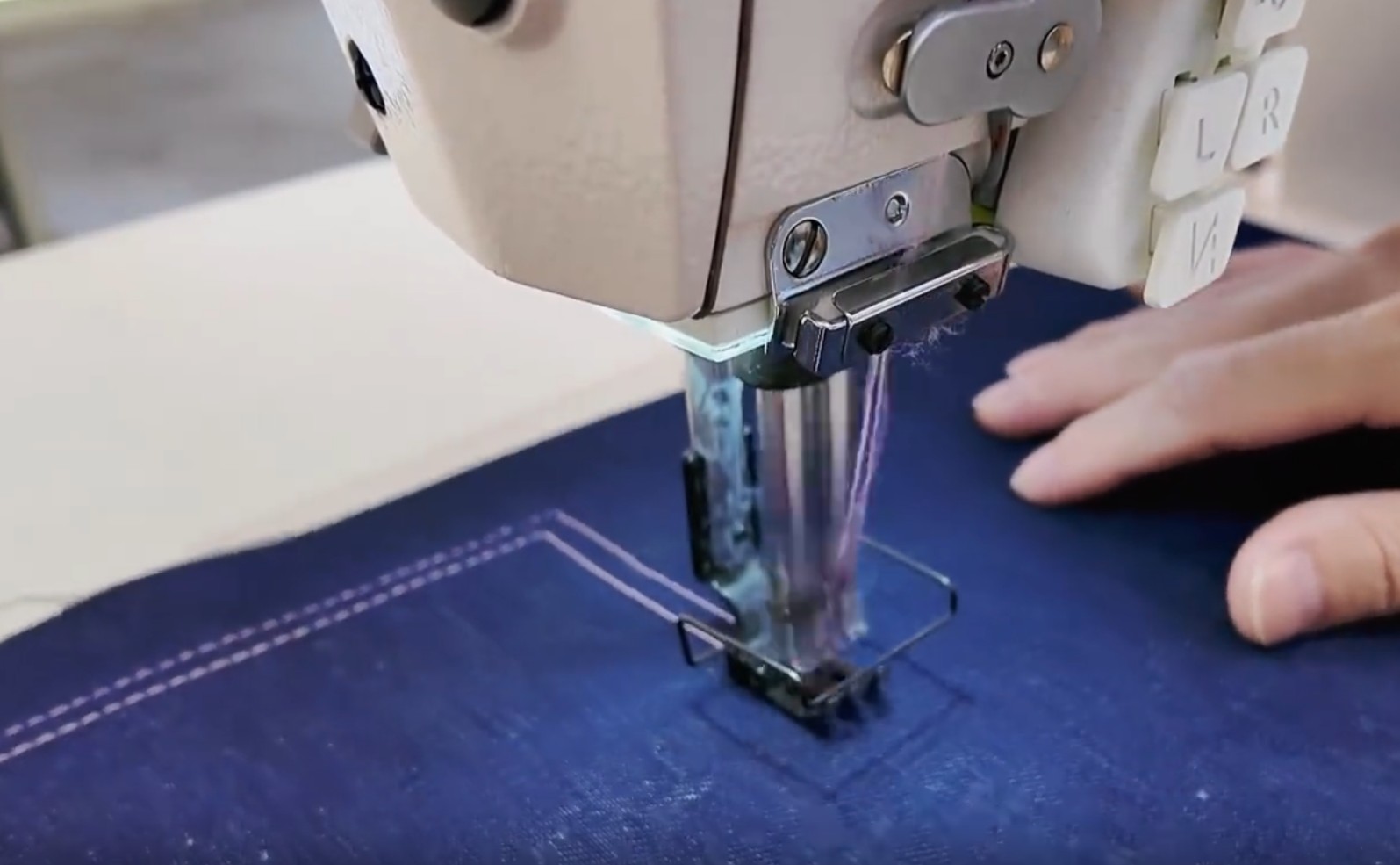

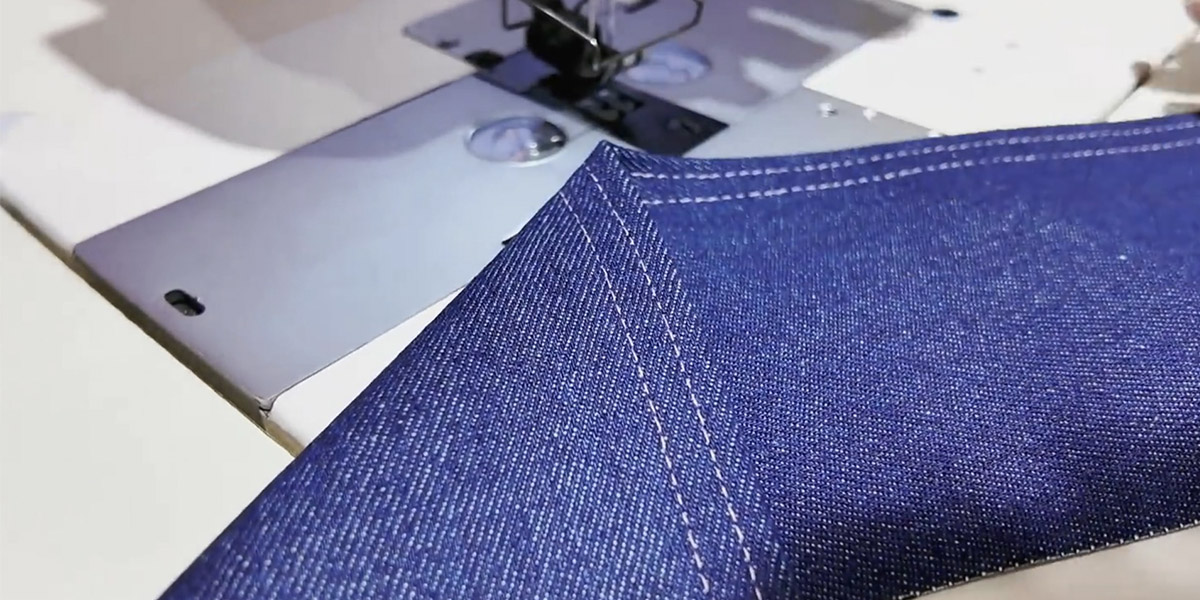

Equipped with automatic corner function. Computer-controlled corner sewing, easy to operate, no experience required. Supports arbitrary angle switching from 15° to 150° for corner sewing.
-

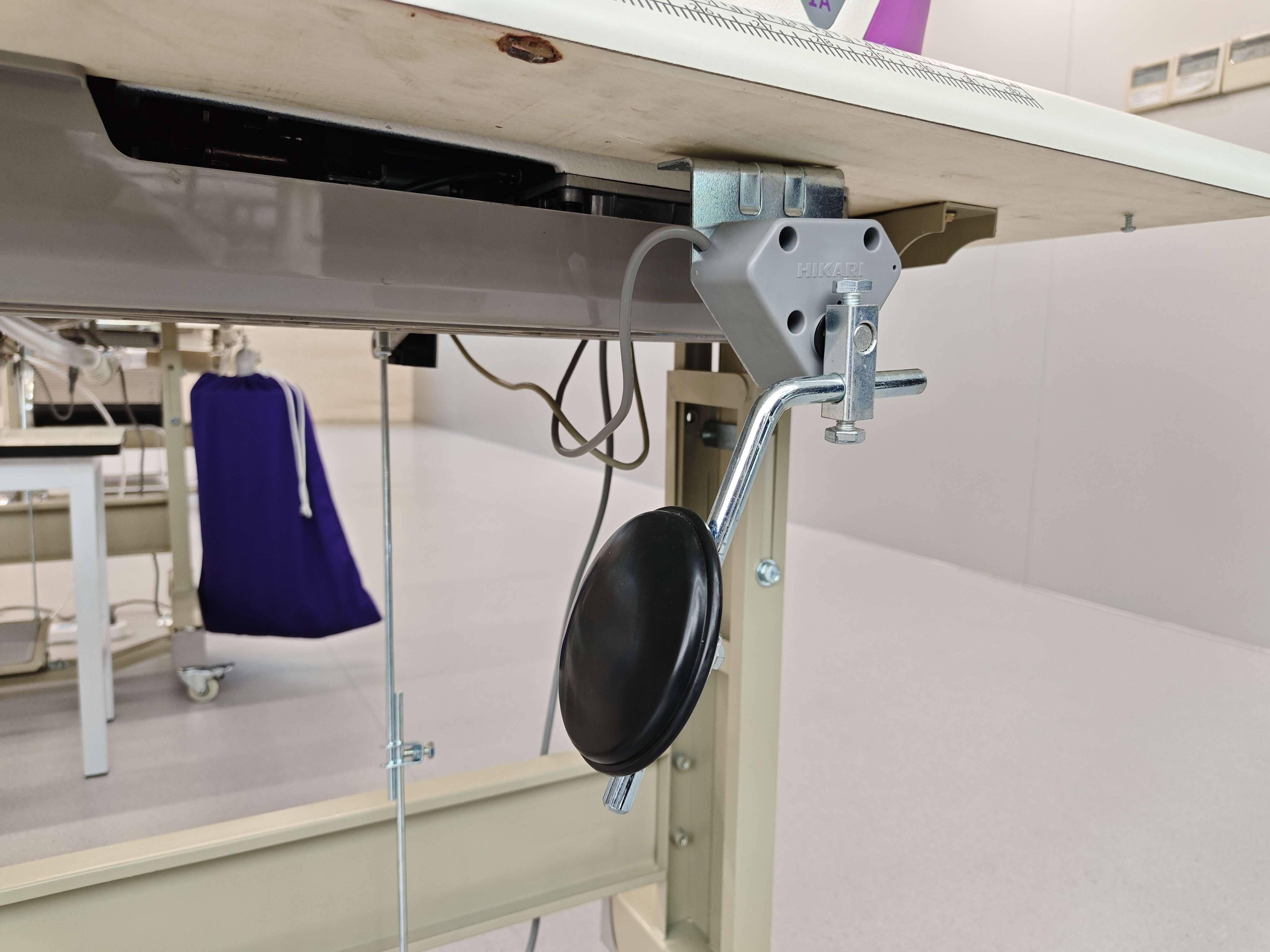

Electronic knee lifter, light and labor-saving for presser foot lifting, reduces labor intensity.
-

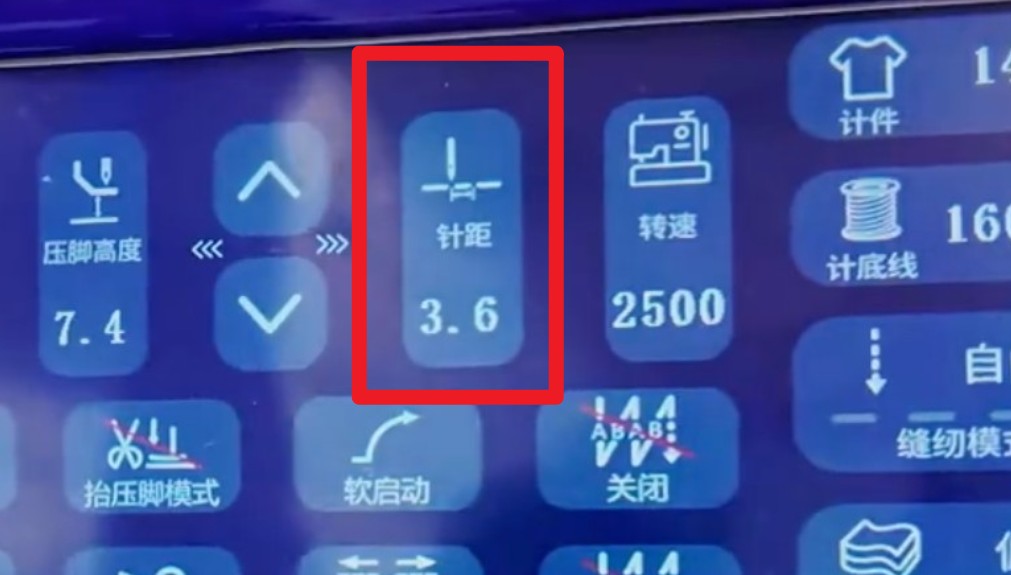

Digital stitch control with an adjustment accuracy of 0.1 mm.
-

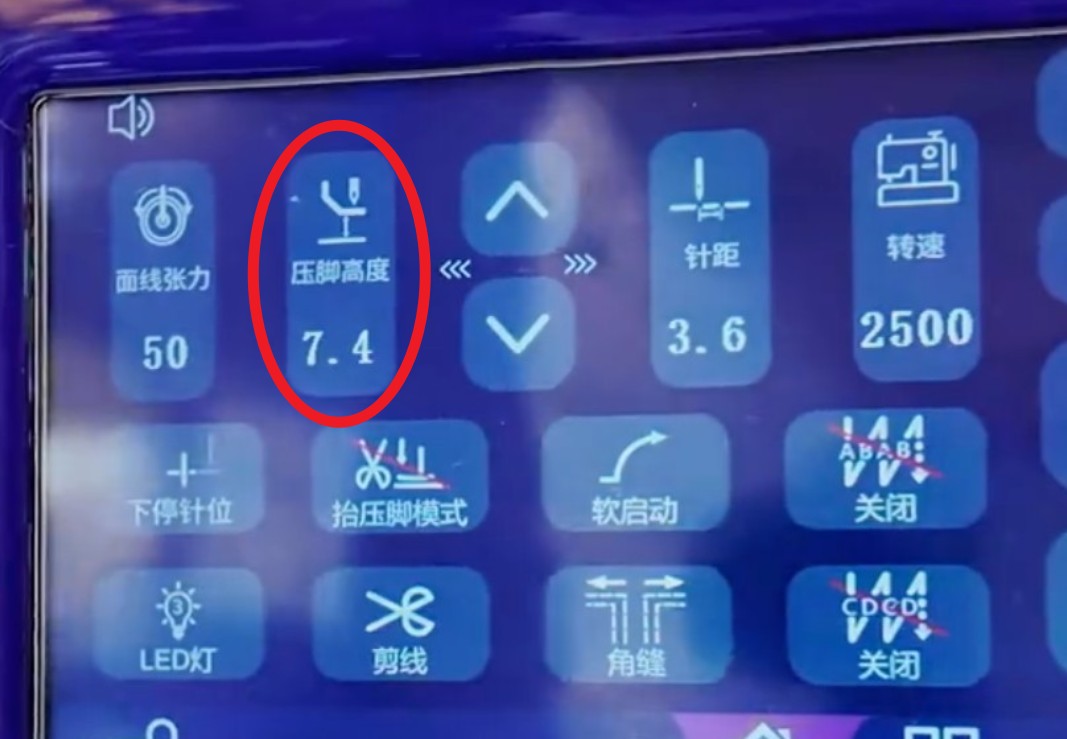

Computer-controlled presser foot lifting and thread trimming, low noise, digitally adjustable presser foot height.
-

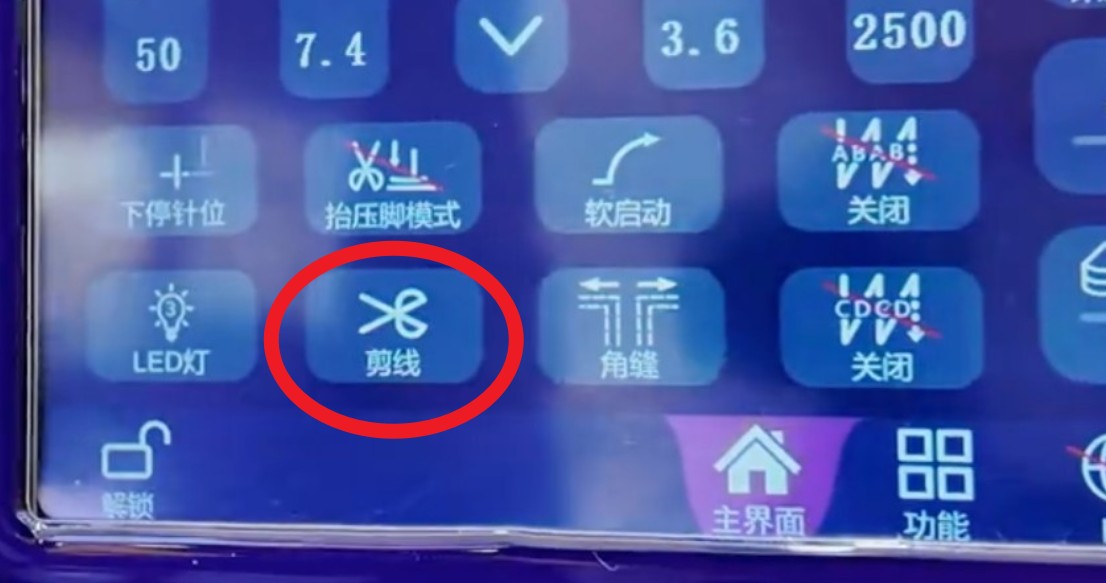

Computer-controlled thread trimming, low noise, digitally adjustable trimming knife position.
-

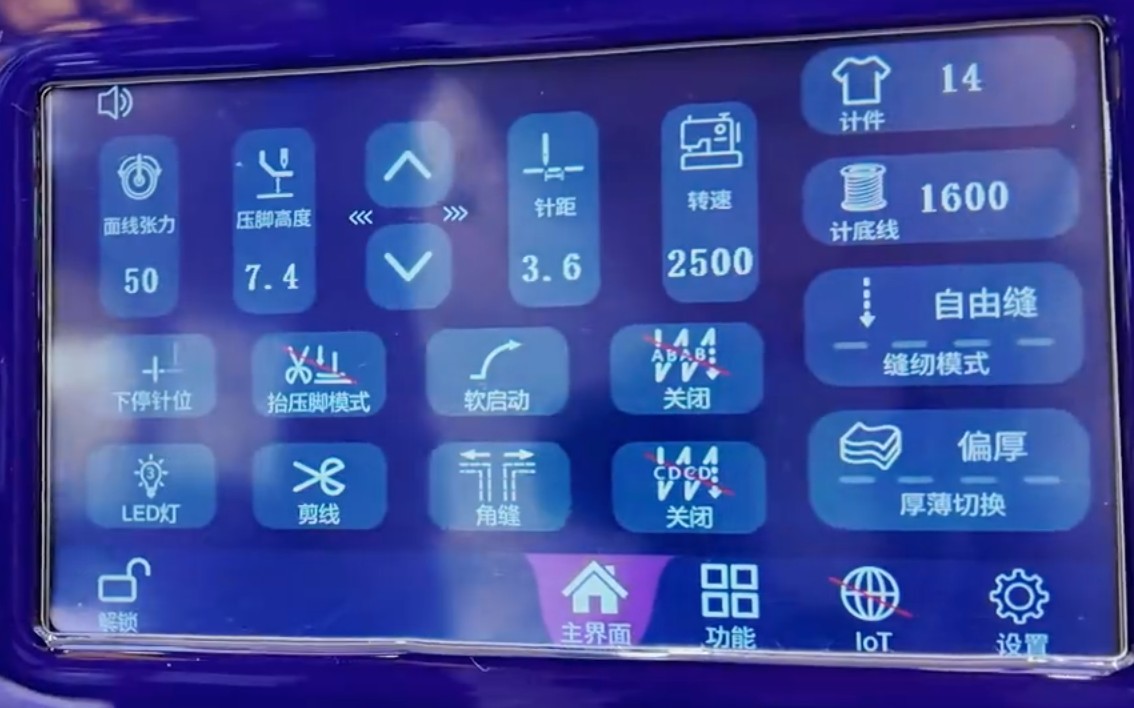

Equipped with a color touch screen for intuitive function setting. Combined with a voice broadcast function, ordinary operators can quickly get started to switch models.
Product Specifications
| Model | Lubrication Mode | Needle | Stitch Length | Presser Foot Lift | Thread Trimming | Medium-Weight Materials | Heavy-Weight Materials | Sewing Speed | Packaging Dimensions |
| HT92V2-7P/5AK | Semi-dry head | DPx5 | 0-5 | 0-16 |  |
|
3000 | 750x595x310mm | |
| HT92V2H-7P/5AK | Semi-dry head | DPx5 | 0-5 | 0-16 | |
|
3000 | 750x595x310mm | |
| HT92V6-7P/5AK | Semi-dry head | DPx5 | 0-7 | 0-16 | |
|
3000 | 750x595x310mm | |
| HT92V6H-7P/5AK | Semi-dry head | DPx5 | 0-7 | 0-16 | |
|
3000 | 750x595x310mm | |
