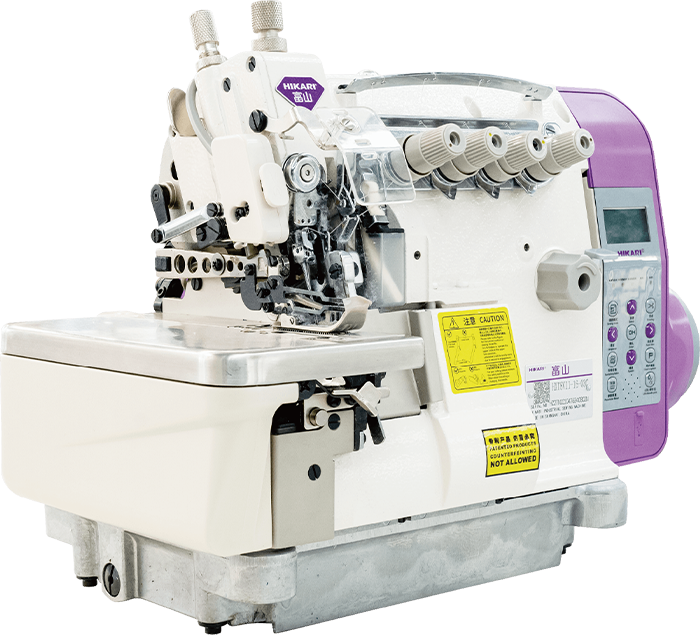

NEW GENERATION OF COMPUTERIZED TOP FEED HIGH SPEED OVERLOCK SEWING MACHINE

HXT8VII Series

ANTI MISTAKE LAYER

Download

Video

Get a quote

Key Practical Value

Specifically Solves Thin-Thick and Easy-to-Misalign Fabric Issues
Greatly Improves Misalignment Phenomenon, Suitable for Padded Children's Wear
Thick Sweaters, Hoodies, Down Jackets
Thermal Underwear, Multi-Layer Slippery Fabrics

Smoother Sewing for Thin Fabric Products

Key Practical Value-1

Key Practical Value-2

Other Practical Values

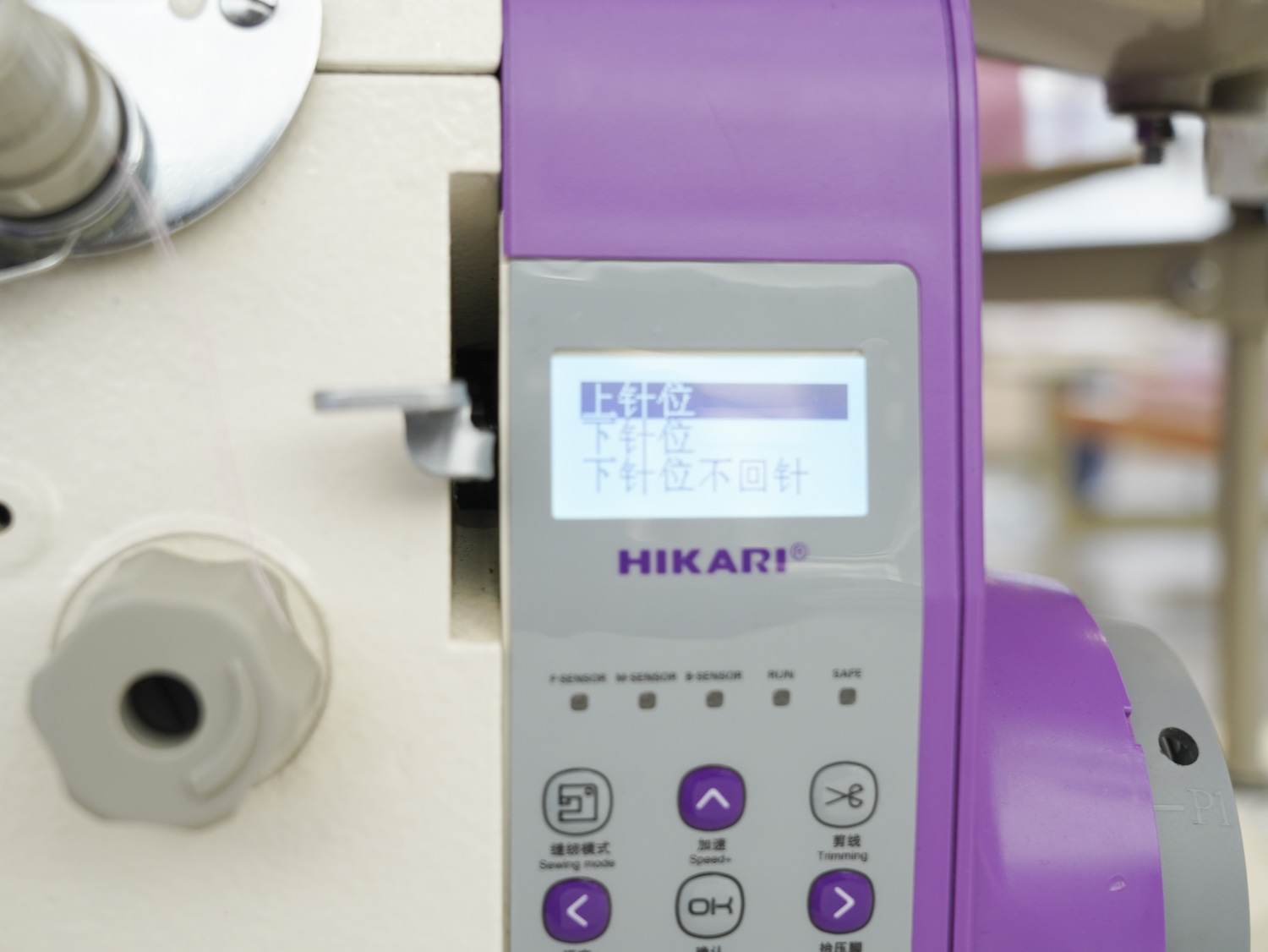

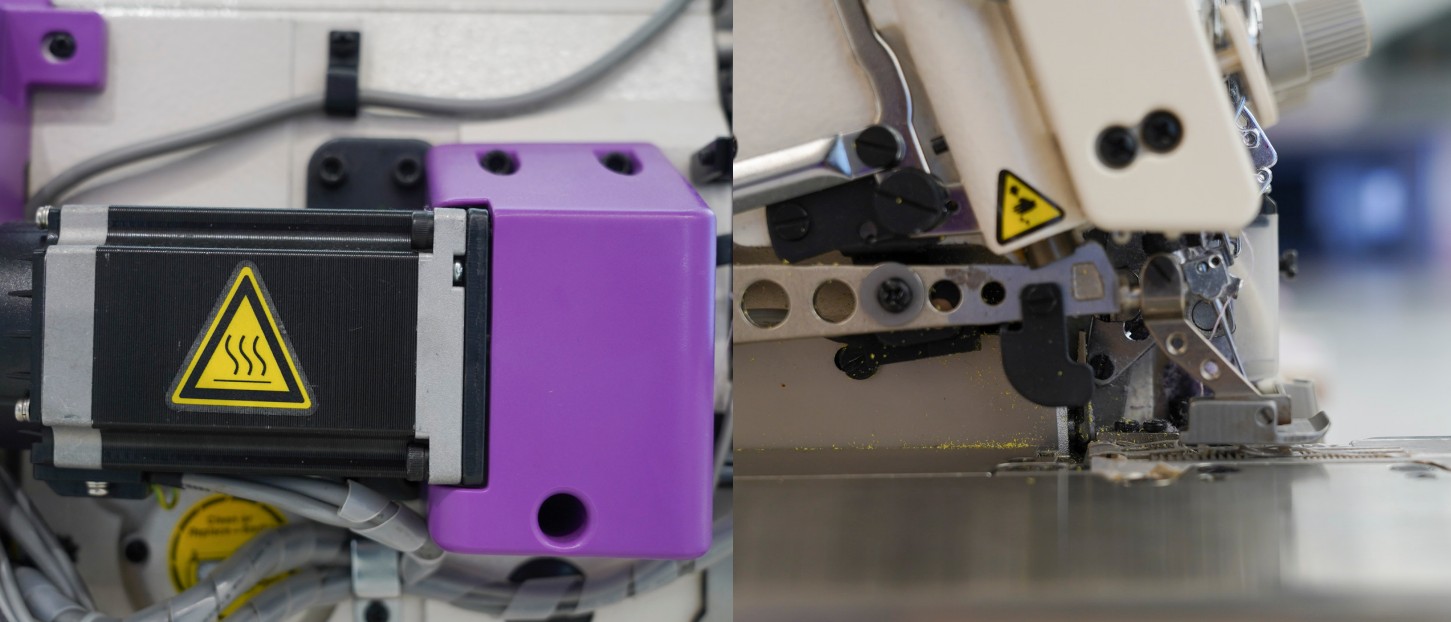

Digitally Driven Presser Foot Lifting, Quiet Operation, Computer-Controlled Presser Foot Lifting, Digitally Adjustable Presser Foot Lift Height (0-7mm)
Front and Back Short Thread Tail Functions. Digitally Controlled Thread Tail Length (0-5mm)
Digitally Adjustable Needle Stop Position, Can Adjust Needle Stop Height According to Process Requirements, Easily Accommodates Thick Fabrics (9mm)
Optional Hikari IoT Function for Equipment Network Connectivity, Helping Enterprises Build Digital Factories

Product Specifications

Box type	Needle	No.Of needles	No.Of threads	Needle Gauge	Stitch width	Stitch length	Differental Ratio	Height Of Presser Foot	Light-Weight Materials	Medium-Weight Materials	Heavy-Weight Materials	Sewing Speed	Packaging Dimensions
HXT8VII-14-03	DCx27	2	4	2	4mm	0.6-3.8	0.7-2.0	7.0				7000	534x368x496mm
HXT8VII-14-04	DCx27	2	4	2	4mm	0.8-5.0	0.7-2.0	7.0				7000	534x368x496mm
HXT8VII-14-04L	DCx27	2	4	2	4mm	2.0-7.0	0.7-2.0	7.0				7000	534x368x496mm
HXT8VII-14-03C	DCx27	2	4	2	4mm	0.6-3.8	0.7-2.0	7.0				7000	534x368x496mm
HXT8VII-14-04C	DCx27	2	4	2	4mm	0.8-5.0	0.7-2.0	7.0				7000	534x368x496mm
HXT8VII-16-03	DCx27	2	5	3	5mm	0.6-3.8	0.7-2.0	5.5				7000	534x368x496mm
HXT8VII-16-03B	DCx27	2	5	5	5mm	0.6-3.8	0.7-2.0	5.5				7000	534x368x496mm
HXT8VII-16-04	DCx27	2	5	5	5mm	0.8-5.0	0.7-2.0	7.0				7000	534x368x496mm
HXT8VII-16-03C	DCx27	2	5	3	5mm	0.6-3.8	0.7-2.0	5.5				7000	534x368x496mm
HXT8VII-16-03B/C	DCx27	2	5	5	5mm	0.6-3.8	0.7-2.0	5.5				7000	534x368x496mm
HXT8VII-16-04C	DCx27	2	5	5	7mm	0.8-5.0	0.7-2.0	7.0				7000	534x368x496mm
HXT8VII-18-03	DCx27	3	6	3x2	4mm	0.6-3.8	0.7-2.0	5.5				7000	534x368x496mm
HXT8VII-18-04	DCx27	3	6	5x3	4mm	0.8-5.0	0.7-2.0	7.0				7000	534x368x496mm
HXT8VII-18-03C	DCx27	3	6	3x2	4mm	0.6-3.8	0.7-2.0	5.5				7000	534x368x496mm
HXT8VII-18-04C	DCx27	3	6	5x3	4mm	0.8-5.0	0.7-2.0	7.0				7000	534x368x496mm
