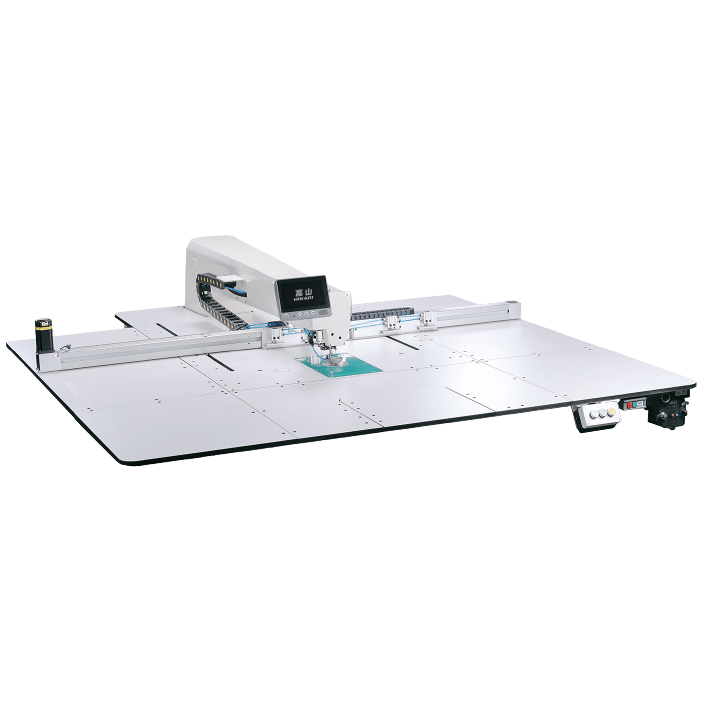

360° ROTATING HEAD HIGH-SPEED TEMPLATE MACHINE
HMS-13095
Key Buying Points
-
01
With a focus on the high efficiency of user value,the maximum speed during work can reach 3500RPM, and significantly improving efficiency.
-
02
The sewing range is extremely large, with a Y-direction sewing range of 920mm, covering the sewing requirements of most styles.
FUNCTION
01
Machine head structure needle bar adopts oil-free lubrication dry technology to avoid oil pollution
02

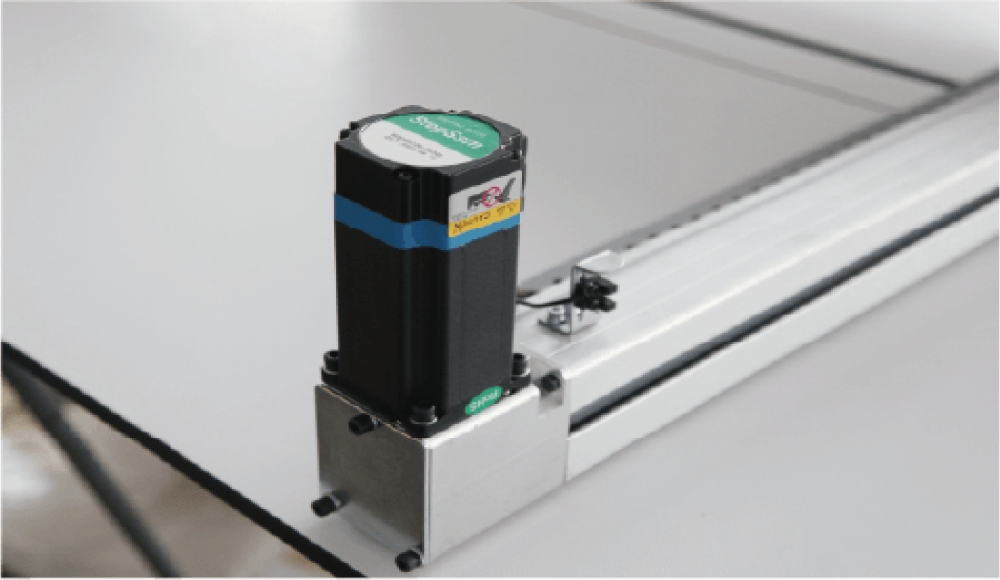

Adopting a double width synchronous belt structure, the template does not shake when sewing wide materials, and the stitching is more beautiful.
03

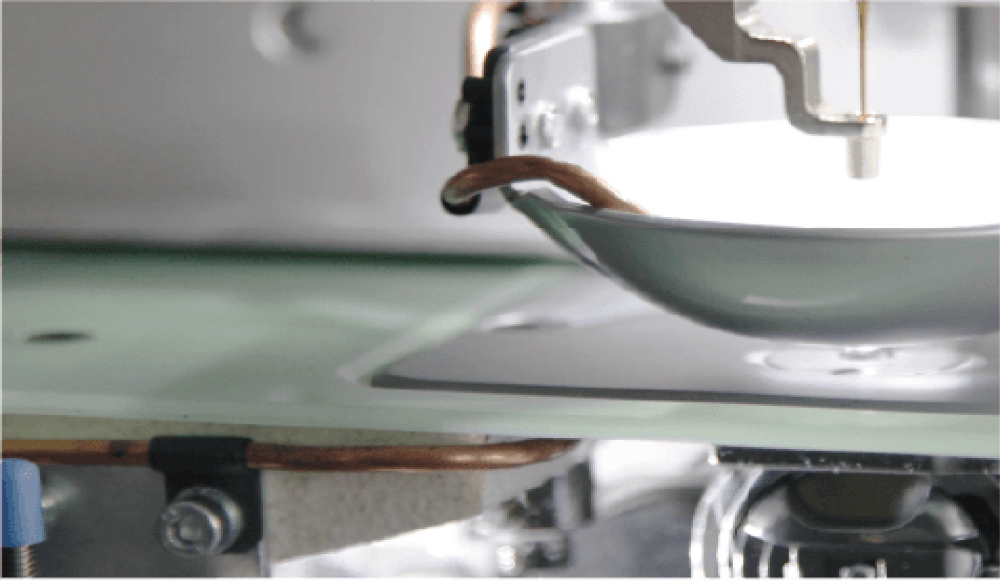

Hook oil supply controlled by computer, Hook operation more stable,outgoing thread more smooth.
04
Wide base design, stable and sturdy, with a lighter sound.
Specifications
| Product Model | Needle | Plain stitch | Sewing range | Stitch length | Thread trimmer | Thread wiper | Sewing speed | Air Consumption | Voltage | Air pressure | Total power |
| HMS-13095 | DBx1 |  |
130x92cm | 0.5-12.7mm | |
|
3500rpm | 1.71 I/min | 220V | 0.4-0.6Mpa | 780W |
| HMS-13095-X | DBx1 | |
130x92cm | 0.5-12.7mm | |
|
3500rpm | 1.71 I/min | 220V | 0.4-0.6Mpa | 1080W |
| HMS-13095-L | DBx1 | |
130x92cm | 0.5-12.7mm | |
|
3500rpm | 1.71 I/min | 220V | 0.4-0.6Mpa | 1080W |
| HMS-13095-L/X | DBx1 | |
130x92cm | 0.5-12.7mm | |
|
3500rpm | 1.71 I/min | 220V | 0.4-0.6Mpa | 1380W |
