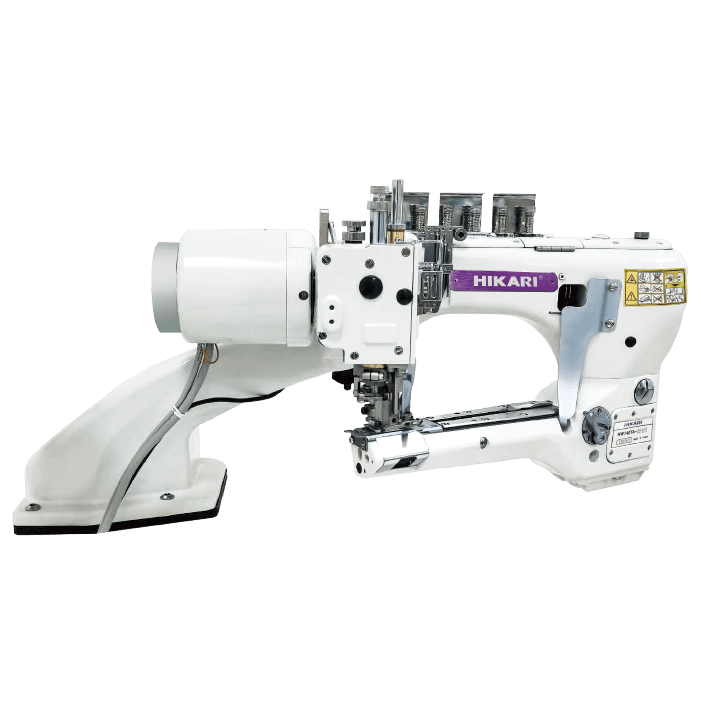

4 NEEDLES 6 THREAD FLAT SEAMER MACHINE
HW740TA
Key Buying Points
-
01
Ultra-short direct drive and contact structure，Direct drive design more sensitive sewing，more convenient disassembly，less vibration and low noise.
-
02
Large operation space design,The innovative frame design provides a large operating space for sewing, which is more conducive to the sewing of large items.
Functions
01

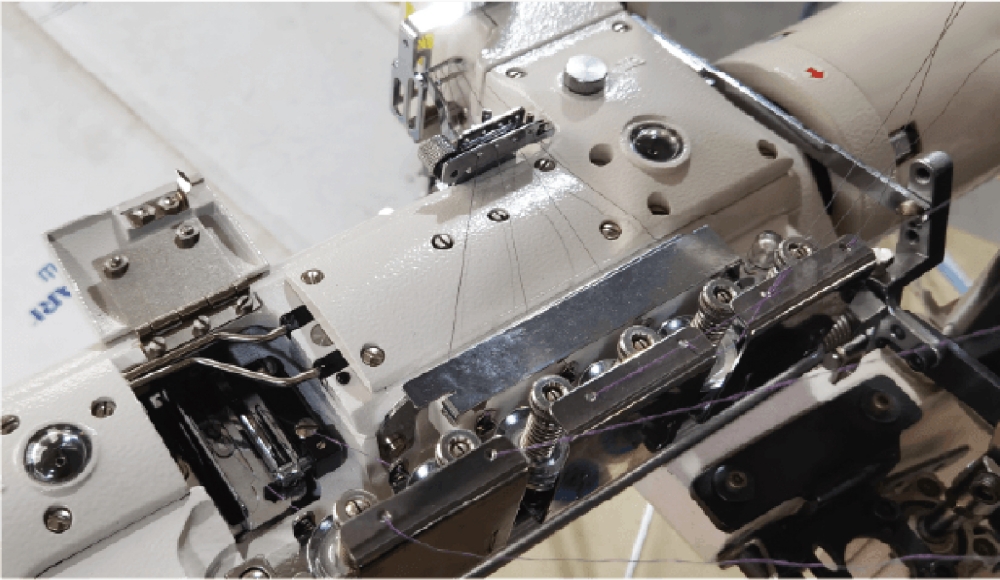

Improved sealed thread guide structure
02

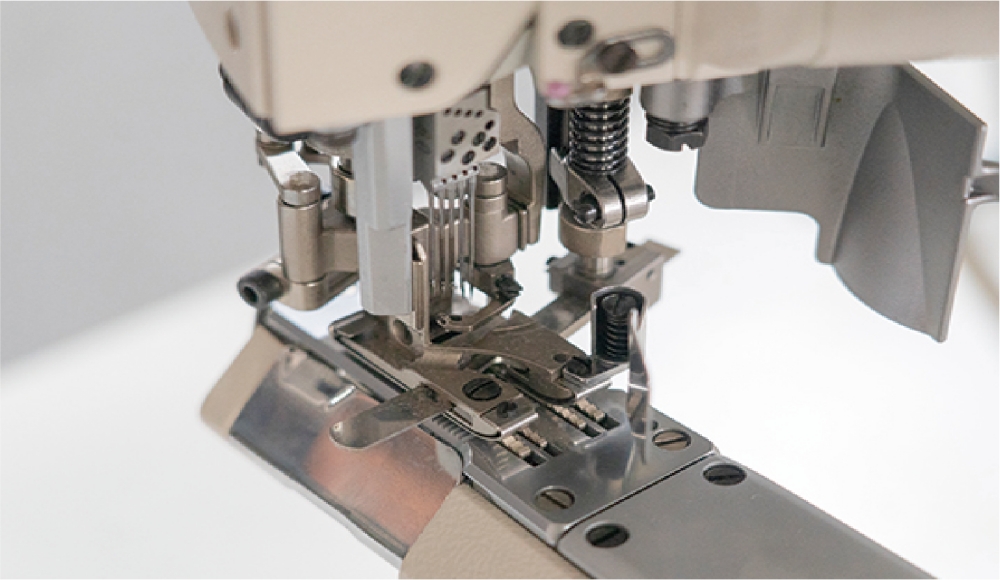

Spring plate press foot mechanism,the function of the mechanism enables the thin material and high elastic fabric used in the inner page to fully correspond.
03
选购件-AW吸布屑装置。改良型吸布装置，加装此选购件，可吸走切断的布屑，使车缝平顺，线迹美观
Optional -AW suction device. Improved suction device, equipped with this optional part, can suck the cut cloth scraps, make the sewing smooth, beautiful stitch.
Product Specifications
| Flat bed | Needle | No. Of Threads | Needle Gauge | Stitch Length | Upper and Lower Feed | Presser Foot Lift | Needle Bar Stroke | Sewing Speed |
| HW740TA | FL-118-CS | 6 | 52=5.2 | 1.6-2.5 | 1:0.7-1:5 | 8-10 | 30 | 4000 |
| 60=6.0 |
